In the world of modern manufacturing, turning a digital design into a physical part can be achieved through a multitude of processes. Among the most prominent and versatile are CNC machining and injection molding. While both can produce high-quality parts, they operate on fundamentally different principles and are suited for vastly different applications. This often leads to a critical decision point for engineers, product designers, and procurement managers: which process is right for my project?
This comprehensive guide aims to demystify this choice. We will delve deep into the mechanics, costs, and ideal applications of both CNC machining and injection molding, addressing the most common questions for users seeking professional CNC machining services. Understanding the core trade-offs between these two manufacturing powerhouses is the first step toward optimizing your production for cost, speed, and quality. Choosing the right process from the outset can save thousands of dollars, slash lead times, and ultimately determine the success of your product launch.

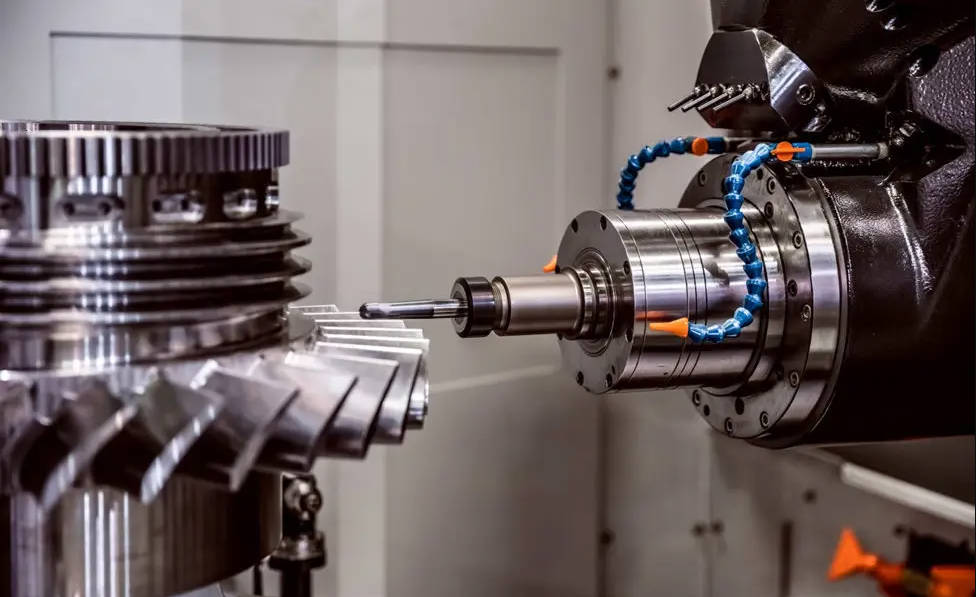

CNC (Computer Numerical Control) machining is a subtractive manufacturing process that uses computer-controlled cutting tools to selectively remove material from a solid block (known as a blank or workpiece) to create a final part. The entire operation is guided by a digital file, such as a CAD (Computer-Aided Design) model. A computer program dictates the movements of the machine's tools, such as drills, mills, and lathes. The process is akin to sculpting, where the final shape is revealed by chipping away excess material. This subtractive nature is a key differentiator from processes like 3D printing (additive) or injection molding (formative).
One of the greatest strengths of CNC machining is its incredible material versatility. It can shape materials that are often impossible to process with other methods.
Metals: Aluminum (e.g., 6061, 7075), Steel (Stainless, Carbon, Alloy), Titanium, Brass, Copper, Magnesium.
Plastics: ABS, Polycarbonate (PC), Acrylic (PMMA), Nylon, PEEK, Acetal (Delrin), Teflon.
Composites: Carbon Fiber, G-10, Fiberglass.
Wood and Foam: For modeling and specific industrial applications.
The precision and material flexibility of CNC machining make it invaluable across numerous industries.
Prototyping: Creating high-fidelity, functional prototypes from production-grade materials for form, fit, and function testing.
Low-Volume Production: Economically producing end-use parts in quantities from a single unit up to a few thousand.
Precision Components: Manufacturing critical components for industries where tight tolerances are non-negotiable, such as aerospace, medical devices, and robotics.
Custom Tooling and Fixtures: Creating jigs, fixtures, and even the molds used for injection molding.
High Precision and Tight Tolerances: CNC machines can achieve tolerances as tight as ±0.001 inches (±0.025 mm), ensuring exceptional accuracy and repeatability.
Material Flexibility: Works with a vast array of metals, plastics, and composites.
No Tooling Required: The primary advantage for low-volume runs is the absence of a need for expensive molds or tooling, leading to low setup costs.
Rapid Turnaround: For small quantities, parts can often be produced in a matter of days, directly from a digital file.
Higher Per-Unit Cost at Scale: The time it takes to machine each part makes the per-unit cost relatively high and static, proving uneconomical for mass production.
Material Waste: As a subtractive process, it generates significant waste material (chips or swarf), which can be costly, especially with expensive raw materials.
Geometric Constraints: Certain internal geometries or features with sharp internal corners can be difficult or impossible to machine.
Injection molding is a manufacturing process for producing parts by injecting molten material into a custom-made mold. It begins with creating a hardened steel or aluminum mold (also known as a tool) that is the negative of the desired part. Plastic pellets are melted and then injected under high pressure into this mold. The material cools, solidifies into the shape of the mold, and the finished part is ejected. This cycle repeats rapidly, allowing for the production of thousands or even millions of identical parts.
Injection molding is primarily used for polymers.
Thermoplastics: These materials can be repeatedly melted and solidified. Common examples include Acrylonitrile Butadiene Styrene (ABS), Polypropylene (PP), Polycarbonate (PC), Nylon (PA), and Polyethylene (PE).
Thermosets: These plastics undergo a chemical change when heated, causing them to permanently harden. Examples include Polyurethanes, Epoxies, and Phenolics.
Elastomers and Some Metals (Metal Injection Molding - MIM): Specialized variations of the process can be used for other materials.
The process is the backbone of mass-produced plastic goods.
High-Volume Production: Ideal for manufacturing parts in quantities of 10,000 to over a million units.
Consumer Goods: Used for everything from LEGO bricks and electronic enclosures to kitchen utensils and automotive dashboards.
Complex Geometries: Excels at creating complex and intricate shapes with high repeatability.
Medical Components: Mass production of sterile plastic parts like syringes and connectors.
Extremely Low Per-Unit Cost at High Volumes: Once the mold is made, the cost to produce each subsequent part is incredibly low, driven by material cost and machine time.
High Repeatability and Consistency: Every part produced is virtually identical, ensuring high quality control for mass production.
Complex Designs: Allows for the creation of intricate features, thin walls, and varied surface textures.
Low Material Waste: The process is highly efficient, with minimal waste compared to subtractive methods.
High Initial Mold Costs: The primary barrier to entry for injection molding is the extremely high cost of designing and manufacturing the mold, which can range from a few thousand to over a hundred thousand dollars.
Long Lead Times for Tooling: Creating the mold is a complex process that can take weeks or even months.
Less Flexibility for Design Changes: Once the mold is made, modifying the part design is difficult and expensive, often requiring a new mold.
Understanding the cost structure of CNC machining versus injection molding is crucial for project planning and budgeting. The decision often hinges on the break-even point where the high initial cost of an injection mold is offset by a lower per-unit price.
CNC Machining: Setup costs for CNC machining are very low. They primarily involve programming the machine (CAM) and preparing the workpiece. There is no need to create expensive, dedicated tooling. This makes it the default choice for one-off parts and small batches.
Injection Molding: The setup cost is the most significant financial consideration. It includes the design, manufacturing, and testing of a robust steel or aluminum mold. This tooling investment can range from $3,000 for a simple, low-volume aluminum mold to over $100,000 for a complex, multi-cavity hardened steel mold designed for millions of cycles.
CNC Machining: The per-unit cost remains relatively high and decreases only moderately with volume. It is calculated based on machine time, labor for setup and oversight, and the cost of the raw material block (which includes the material that becomes waste).
Injection Molding: The per-unit cost is exceptionally low. After the initial mold investment is amortized, the cost for each part is little more than the raw material pellets and the machine cycle time, which can be mere seconds.
The break-even point is the production volume at which the total cost of manufacturing with injection molding becomes equal to the total cost of manufacturing with CNC machining. Beyond this point, injection molding is the more economical choice.
Let's illustrate with a hypothetical example of a moderately complex plastic part.
| Production Volume | CNC Machining (Est. Per Unit) | CNC Machining (Total Cost) | Injection Molding (Mold Cost: $20,000) | Injection Molding (Est. Per Unit) | Injection Molding (Total Cost) |
|---|---|---|---|---|---|
| 10 | $200 | $2,000 | $20,000 | $5.00 | $20,050 |
| 100 | $90 | $9,000 | $20,000 | $3.00 | $20,300 |
| 500 | $70 | $35,000 | $20,000 | $2.50 | $21,250 |
| 1,000 | $65 | $65,000 | $20,000 | $2.00 | $22,000 |
| 10,000 | $62 | $620,000 | $20,000 | $1.50 | $35,000 |
In this scenario, injection molding is already more cost-effective for a run of 500 units if you only consider the production run itself, but the upfront investment is the key barrier. CNC remains the logical choice for the initial prototypes and small test batches under a few hundred units. The true break-even point where the total project investment is lower for injection molding typically falls between 500 and 2,000 units, depending on part complexity and material.
Part Complexity: More complex geometries increase machining time for CNC and dramatically increase the cost and complexity of the mold for injection molding.
Material: The cost of raw materials varies significantly. A block of aerospace-grade titanium for CNC is far more expensive than polypropylene pellets for injection molding.
Labor and Machine Time: This is the primary driver of CNC costs. For injection molding, it's a minor part of the per-unit cost but a major factor in the upfront mold-making cost.
Choosing between CNC and injection molding goes beyond cost; it’s about aligning the process capabilities with your project goals at every stage, from initial concept to full-scale production.
| Feature | CNC Machining | Injection Molding |
|---|---|---|
| Ideal Volume | Low to Medium (1 - 1,000+ units) | High (10,000 - 1,000,000+ units) |
| Prototyping | Excellent for functional, high-fidelity prototypes. | Good for late-stage, production-intent prototypes. |
| Lead Time | Fast (days) for small quantities. | Slow (weeks to months) due to mold creation. |
| Design Flexibility | High. Designs can be changed easily by editing the CAD file. | Low. Changes are very costly and time-consuming. |
| Geometric Complexity | Excels at features like deep pockets and threaded holes. | Excels at complex external curves, ribs, and bosses. |
| Material Versatility | Extremely wide range of metals, plastics, composites. | Primarily limited to moldable polymers. |
| Tolerances | Very high precision (±0.025 mm is achievable). | Good precision (±0.1 mm is typical). |
CNC Machining: CNC machining is the undisputed champion for rapid prototyping. It allows engineers to create one or several functional prototypes from the exact end-use material (e.g., aluminum, PEEK, steel) to perform rigorous real-world testing. If a design flaw is found, the CAD model can be updated and a new version machined in days.
Injection Molding: Prototyping with injection molding is typically reserved for the final stages before mass production. It involves creating a less expensive, "soft" tool from aluminum to produce a few hundred parts to test the molding process and part functionality. This is a final validation step, not an iterative design tool.
CNC Machining: The sweet spot for CNC machining is low to medium-volume production. It's the ideal process for products that don't have the mass-market demand to justify a mold, such as custom scientific equipment, specialized industrial machinery parts, or early-stage product launches.
Injection Molding: This process is built for scale. If you need to produce 10,000 or more identical parts, injection molding will almost always offer the lowest total cost of ownership. The efficiency of the process makes it the global standard for mass-produced consumer and industrial goods.
CNC Machining: Offers high flexibility for creating unique and intricate designs directly from a CAD file. It can produce features that are difficult or impossible to mold, such as parts with no draft angles or certain types of undercuts. The flexibility to change the design with zero tooling penalty is a massive advantage during development.
Injection Molding: While it can produce highly complex shapes, the design must adhere to strict "Design for Manufacturability" (DFM) principles for molding. This includes adding draft angles for part ejection, maintaining uniform wall thickness to prevent warping, and carefully designing features like ribs and bosses. Its strength lies in reproducing that same complex shape consistently, millions of time over.
CNC Machining: The range of materials is a key advantage. You can machine almost any solid block of material, from soft plastics to hardened tool steel and titanium. This is critical for applications demanding specific mechanical or thermal properties that cannot be met by moldable plastics.
Injection Molding: The material selection is vast but limited to polymers (thermoplastics and thermosets) that can be melted and injected. While there are thousands of plastic resins with different properties, you cannot use this process to create parts from standard metal alloys like aluminum 6061 or stainless steel 316 (though Metal Injection Molding is a niche alternative).
You should choose CNC machining when you require low to medium quantities (typically under 1,000 units), need parts made from a specific metal or a non-moldable plastic, require extremely high dimensional accuracy, or expect that your design may need to be updated or revised.
Lead times for CNC machining are one of its biggest advantages for speed to market. For simple parts in common materials, you can often receive your finished components in as little as 1-5 business days. More complex parts or larger quantities may take 2-3 weeks.
CNC machining is significantly more precise. Standard tolerances for CNC machining are around ±0.005 inches (±0.125 mm), but precision shops can readily achieve tolerances of ±0.001 inches (±0.025 mm) or even tighter. Injection molding typically holds tolerances of ±0.005 inches (±0.125 mm) on a well-designed part and mold, but this can vary more widely due to material shrinkage and process variables.
Almost certainly, yes. CNC machining services can source and work with a massive catalog of materials. If you have a requirement for a specific grade of aluminum, a medical-grade titanium, a high-performance plastic like PEEK, or even a custom composite, CNC machining is the most reliable process to handle it.
Complexity is a direct cost driver. Costs increase with:
Tight Tolerances: Requiring more careful setup and slower cutting speeds.
Complex Surfaces: 5-axis machining is more expensive than standard 3-axis.
Deep Pockets/Small Features: Requiring specialized, long-reach, or tiny tools that are more fragile and slower.
Multiple Setups: If the part needs to be re-oriented multiple times to access all features.
CNC machining is ideal for prototyping (1-10 units), pilot runs (10-100 units), and low-volume production (100-1,000+ units). Beyond a few thousand units, it is generally not cost-competitive with methods like casting or injection molding unless the precision or material requirements absolutely demand it.
This is a very common and effective product development strategy.
Prototype with CNC: Use CNC machining to iterate and perfect your design using a material that closely mimics your final plastic choice.
DFM for Molding: Once the design is finalized, it must be reviewed and modified for injection molding manufacturability (adding draft, ensuring uniform walls, etc.).
Build the Mold: Commission a toolmaker to create the injection mold based on the modified DFM design.
First Article Inspection (FAI): Produce the first parts off the new tool and inspect them carefully against the design to ensure the mold is correct.
Launch Production: Once the FAI parts are approved, begin mass production.
An aerospace startup needed to develop a lightweight yet strong mounting bracket for a new drone. The material had to be aerospace-grade 7075 aluminum. They needed five prototypes for physical stress testing and fit checks. CNC machining was the only logical choice. A mold would have been prohibitively expensive for five parts, and 3D printing couldn't produce the part in the required metal with the necessary strength. The parts were machined in under a week, allowing for rapid testing and design iteration.
A company was launching a new handheld electronic device with a two-part ABS plastic enclosure. They projected sales of 50,000 units in the first year. The design featured complex curves, internal ribs for circuit board mounting, and a snap-fit closure. Injection molding was the clear winner. After an initial $30,000 investment in two hardened steel molds, the per-unit cost for the enclosures was just $1.75. This allowed them to achieve the price point needed for the consumer market.
A medical device company developed a new disposable diagnostic cartridge. The design was complex and required high precision. They first used CNC machining to create 200 units from a biocompatible polycarbonate (PC) for clinical trials. This allowed them to test the device with real users and get regulatory feedback without a huge upfront investment. Once the design was validated and FDA approved, they invested in a high-volume, multi-cavity injection mold to mass-produce the cartridges for the global market, driving the per-unit cost down to a commercially viable level.
Production Volume: Is it 10, 1,000, or 100,000 parts? This is often the single most important factor.
Budget: Do you have the capital for a high upfront tooling investment, or do you need a pay-as-you-go model?
Material: Is your required material a metal or a plastic? If plastic, is it a standard thermoplastic?
Lead Time: How quickly do you need the parts in hand?
Design Complexity: Does your part have features better suited for one process over the other?
Design Maturity: Is your design final, or do you anticipate making changes?
| Check this box if it applies to your project... | Recommended Process |
|---|---|
| ☐ My volume is under 1,000 units. | CNC Machining |
| ☐ I need my parts this week. | CNC Machining |
| ☐ My part is made of metal (e.g., Aluminum, Steel). | CNC Machining |
| ☐ I need to achieve tolerances tighter than ±0.1mm. | CNC Machining |
| ☐ My design is likely to change. | CNC Machining |
| ☐ My volume is over 10,000 units. | Injection Molding |
| ☐ Lowest possible per-part cost is the top priority. | Injection Molding |
| ☐ I need to produce millions of identical parts. | Injection Molding |
| ☐ My part has complex features like living hinges. | Injection Molding |
Design for Manufacturability (DFM): Simplify your design where possible. Use standard hole sizes, avoid overly deep pockets, and add radii to internal corners to reduce machining time and cost.
Material Selection: Choose the most cost-effective material that meets your engineering requirements. For example, use aluminum 6061 instead of 7075 if the extra strength is not needed.
Tolerances: Only specify tight tolerances on critical features. Loosening tolerances on non-critical surfaces can significantly reduce costs.
The choice between CNC machining and injection molding is a classic engineering and business decision, balancing upfront investment against per-unit cost and flexibility against scale. CNC machining offers unparalleled flexibility, speed for low volumes, and material versatility, making it the ideal solution for prototyping and limited production runs. Conversely, injection molding is the undisputed champion of mass production, delivering unbeatable per-unit costs and consistency for high-volume plastic parts.
Ultimately, the right choice is not about which process is "better," but which is best suited for your specific project's needs, budget, and timeline. By carefully evaluating the factors outlined in this guide, you can make an informed decision that aligns your manufacturing strategy with your goals. For tailored advice on your unique project, the best course of action is always to consult with an experienced CNC machining service provider. They can offer invaluable insights not only on the process but also on how to optimize your design for maximum efficDiscover the key differences between CNC machining and injection molding. This in-depth guide compares costs, break-even points, applications, materials, and lead times to help you choose the right manufacturing process for your prototyping or production needs.iency and minimum cost.
