The cost of rapid prototyping can range from as little as $75 for a simple 3D-printed model to over $10,000 for a complex, high-fidelity prototype created with CNC machining from production-grade materials. This wide price spectrum exists because the final cost is not a fixed number but a dynamic calculation influenced by several critical factors. The primary drivers that determine your final quote are the manufacturing technology used (e.g., FDM vs. CNC), the type and quantity of material, the part’s size and geometric complexity, the required labor for finishing, and the urgency of your timeline. Understanding these variables is the key to managing your budget and achieving the best value for your project.
Before diving into specific technologies, it’s crucial to understand the universal elements that every prototyping service uses to calculate a quote. These factors interact with each other, meaning a change in one can significantly impact the others. For instance, a complex design not only increases machine time but may also necessitate a more expensive, high-resolution technology and more intensive post-processing.
Mastering these core components will empower you to make informed decisions and optimize your design for cost-effectiveness without sacrificing quality. The most significant cost drivers are the technology and material, but overlooking details like part volume or finishing requirements can lead to unexpected budget overruns. Here is a breakdown of the primary variables that dictate the final price of your prototype.
| Factor | Impact on Cost | Detailed Explanation |
|---|---|---|
| Manufacturing Technology | High | The process used is the biggest cost determinant. FDM 3D printing is typically the most affordable, while multi-axis CNC machining and Direct Metal Laser Sintering (DMLS) are at the highest end of the spectrum due to machine cost, setup time, and operational complexity. |
| Material Selection | High | The raw material's price per kilogram or liter varies drastically. Standard plastics like PLA are inexpensive, whereas engineering-grade polymers (like PEEK) or metals (like titanium or stainless steel) can increase costs tenfold. |
| Part Complexity & Geometry | High | Intricate designs with undercuts, thin walls, internal channels, and tight tolerances require more advanced machinery, longer run times, and often manual labor for support removal or finishing, directly increasing the cost. |
| Part Size & Volume | Medium-High | Larger parts consume more material and occupy the machine for longer periods. For 3D printing, cost is often tied to the total volume of the part and its supports. For CNC, it's more about the bounding box and the amount of material that needs to be removed. |
| Quantity / Volume | Medium | While a single prototype can be expensive due to setup costs, the price per unit typically decreases as quantity increases. However, for very low volumes (1-5 units), the initial setup fee can constitute a large portion of the total cost. |
| Post-Processing & Finishing | Low-High | Basic support removal is often included, but advanced finishing like sanding, polishing, painting, vapor smoothing, anodizing, or heat treating are separate, labor-intensive services that add significant cost. |
| Turnaround Time | Medium | Standard lead times (5-10 business days) are the most cost-effective. Requesting an expedited service (1-3 days) will always incur a premium fee to prioritize your job over others in the queue. |
The technology you choose is the foundation of your prototype's cost structure. Each process has a unique set of strengths, weaknesses, and associated expenses related to machine operation, materials, and labor. Choosing the right one depends on your goal: are you making a simple visual model, a functional test part, or a pre-production unit?

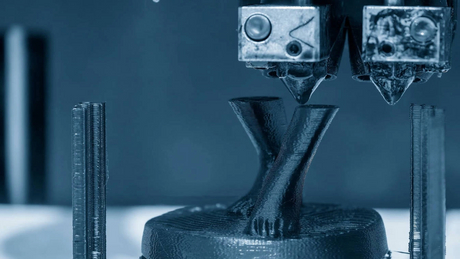

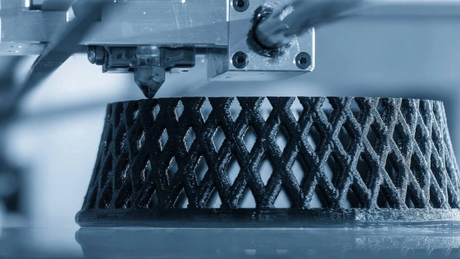

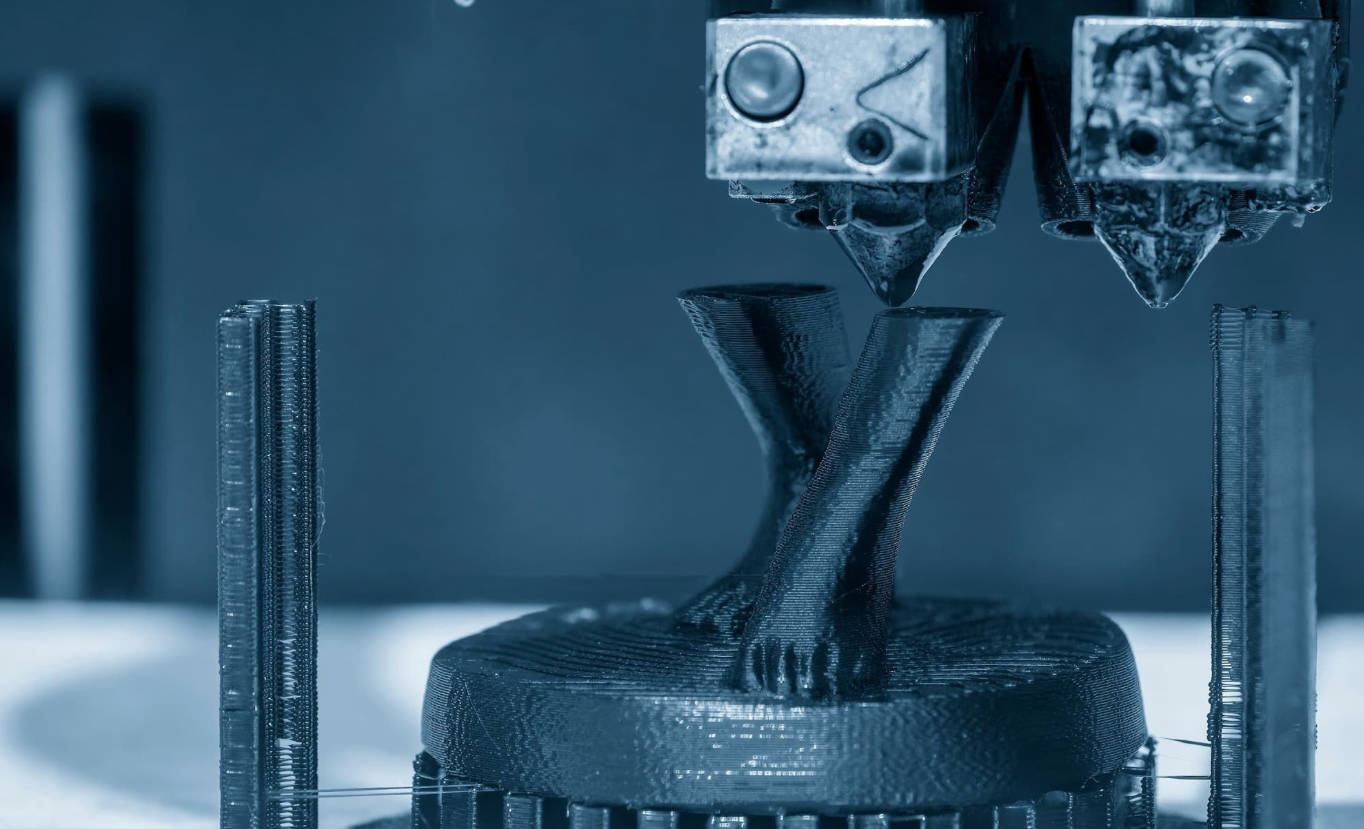

FDM is the most widely recognized and accessible form of 3D printing. It works by extruding a thermoplastic filament layer by layer to build a part. Due to the low cost of both the machines and materials like PLA and ABS, FDM is the most affordable rapid prototyping option, ideal for early-stage concepts, form and fit testing, and simple fixtures.
A typical FDM prototype can cost anywhere from $10 to $400. The price is primarily driven by the amount of material used and the total print time. Larger, denser parts will naturally cost more than small, hollow ones. While FDM is cheap, it has the lowest resolution and dimensional accuracy, and parts exhibit visible layer lines, often requiring sanding or other finishing for a smooth surface.
SLA uses an ultraviolet (UV) laser to cure liquid photopolymer resin layer by layer. This technology is renowned for producing parts with exceptional surface finish, fine details, and high accuracy. It's the preferred choice for visual models, marketing samples, and patterns for investment casting where aesthetics are paramount.
The cost for an SLA prototype generally falls between $50 and $600. The main cost factors are the volume of resin consumed (including support structures) and the Z-height of the part, which determines the number of layers and thus the machine time. While more expensive than FDM, SLA delivers a professional, injection-mold-like finish straight off the printer, reducing the need for extensive post-processing.
SLS uses a high-powered laser to fuse powdered polymer, typically nylon, into a solid object. A key advantage of SLS is that it requires no support structures, as the unfused powder supports the part during printing. This allows for the creation of highly complex, interlocking, and functional geometries that are impossible with other methods.
Expect to pay between $100 and $1,000+ for an SLS prototype. The cost is primarily calculated based on the bounding box volume your part occupies within the build chamber, as well as the overall part density. Because parts can be nested together efficiently in the powder bed, producing multiple units at once can significantly reduce the per-part cost. SLS parts are known for their excellent mechanical properties and are ideal for durable, functional prototypes.
Unlike additive manufacturing (3D printing), CNC machining is a subtractive process that carves a part from a solid block of material (a "billet") using high-speed cutting tools. It offers unparalleled precision, superior surface finishes, and the ability to work with production-grade plastics and metals like aluminum, steel, and titanium.
CNC prototyping is the most expensive option, with costs typically starting at $150 and easily exceeding $5,000 for complex parts. The price is driven by several factors:
Setup Time: Significant labor is required to program the machine (CAM) and set up the workpiece and tooling. This setup cost is the same whether you make 1 or 100 parts, making single prototypes expensive.
Machine Time: The longer the machine runs, the higher the cost. Complex geometries with deep pockets or 5-axis features require more time.
Material Cost: A solid block of high-grade aluminum or stainless steel is far more expensive than a spool of plastic filament.
CNC is the best choice when you need a prototype with the exact mechanical properties and tolerances of a final production part.
Your choice of material directly impacts both the cost and the functionality of your prototype. A material that is difficult to machine or requires specialized printing parameters will invariably increase the price. It's essential to select the most cost-effective material that still meets the functional requirements of your testing phase.
For example, using PEEK (a high-performance thermoplastic) when a simple ABS prototype would suffice for a form check is an unnecessary expense. Conversely, using a brittle resin for a snap-fit enclosure that needs to be durable will lead to failed tests and the need to re-order, ultimately costing more. Consult with your prototyping provider to find the right balance between performance and price.
| Material Category | Examples | Relative Cost | Best For |
|---|---|---|---|
| Standard Thermoplastics | PLA, ABS, PETG | $ | Low-cost concept models, form/fit checks (FDM). |
| Engineering Thermoplastics | Nylon (PA12), Polycarbonate (PC), ASA | $$ | Functional, durable, and temperature-resistant parts (SLS, FDM). |
| Standard Resins | General Purpose, Draft Resin | $$ | High-detail visual prototypes, smooth surfaces (SLA). |
| Engineering Resins | Tough, Durable, High-Temp Resin | $$$ | Functional prototypes requiring specific mechanical properties like impact strength or heat deflection (SLA). |
| Standard Metals | Aluminum 6061, Brass | $$$ | Strong, lightweight metal prototypes, pre-production units (CNC). |
| Advanced Metals | Stainless Steel, Titanium, Inconel | $$$$ | High-strength, corrosion-resistant, or high-temperature applications (CNC, DMLS). |
Getting a fast and accurate quote has become incredibly simple with online manufacturing platforms. The process typically involves uploading a 3D CAD (Computer-Aided Design) file, usually in a universal format like .STEP or .STL. The platform's software will instantly analyze the file's geometry to calculate its volume, complexity, and other key metrics.
To ensure your quote is accurate, follow these steps:
Prepare Your CAD File: Ensure your model is "watertight" (a solid, enclosed volume with no holes) and exported at a sufficient resolution.
Select Your Process and Material: Use the platform's interface to choose the manufacturing technology (e.g., SLS) and the specific material (e.g., Nylon 12).
Specify Quantity and Finish: Enter the number of units you need and select any required post-processing options, such as painting or threading.
Define Tolerances: If your part has critical dimensions, be sure to specify the required tolerances on a 2D drawing. Standard tolerances are the most affordable.
Review and Compare: The platform will generate an interactive, itemized quote. You can often change materials or technologies in real-time to see how it affects the price, allowing you to find the perfect balance for your budget.
While some cost factors are fixed, there are many ways a savvy engineer or designer can significantly lower their prototyping expenses through smart design choices. This practice is often called Design for Manufacturability (DFM). By making small adjustments to your CAD model, you can reduce machine time, material usage, and labor, resulting in major savings.
Hollow Your Parts: For 3D printing, hollowing out solid models and adding escape holes for material removal can drastically cut down on material costs and print time, especially for SLA and SLS.
Optimize Part Orientation: For FDM and SLA, orienting your part to minimize height or reduce the need for support structures can lower costs.
Reduce Part Complexity: Avoid unnecessarily tight tolerances, complex curves, and deep pockets, especially for CNC machining. Every complex feature adds machine time.
Choose the Right Material: Don’t over-engineer your prototype. Use a low-cost material like PLA or draft resin for early-stage models and save expensive materials for final functional testing.
Increase Wall Thickness: For 3D printing, parts with very thin walls are fragile and prone to failure, which may require a reprint. Designing walls above the minimum recommended thickness for the process improves success rates.
Consolidate Parts: If possible, combine multiple components into a single part. This is especially effective with SLS, where you can print complex, pre-assembled mechanisms and eliminate assembly costs.
Order in Batches: If you anticipate needing multiple revisions, ordering them together can sometimes reduce per-unit costs by leveraging a single machine setup.
Reputable online prototyping services provide transparent, all-inclusive quotes. However, it's wise to be aware of potential costs that might not be immediately obvious. Understanding these can help you budget more effectively and avoid surprises.
The most common additional costs include:
Minimum Order Fees: Many services have a minimum charge (e.g., $75-$150) to cover the administrative and setup costs, even for a very small part.
Manual Quoting Fee: If your part is extremely complex and cannot be quoted automatically by the platform's software, a technician may need to review it manually, which can sometimes incur a fee.
Shipping Costs: While obvious, shipping, especially for expedited or international delivery, can add a significant amount to the final bill.
Iterative Costs: The biggest "hidden" cost is often the cost of re-doing a prototype. A failed design that needs to be revised and remade doubles your prototyping expense. This is why investing in DFM and choosing the right process upfront is so crucial.
The most affordable method for rapid prototyping is Fused Deposition Modeling (FDM) 3D printing using standard materials like PLA or ABS. Its low material cost and high-speed "draft" modes make it ideal for quickly and cheaply verifying the form and fit of a new design.
Prototype cost is typically calculated using a formula that includes: (Material Cost) + (Machine Time Cost) + (Labor/Setup Cost) + (Post-Processing Cost). Online platforms automate this by analyzing your CAD file to determine material volume and the estimated time it will take to produce on a specific machine.
The cost of prototyping and the cost of patenting are separate. A prototype is a physical object, while a patent is legal protection for an invention. You do not patent the prototype itself, but the underlying invention it represents. Legal fees for a patent application can range from $5,000 to $15,000 or more, entirely separate from manufacturing costs.
A single prototype is expensive because the entire one-time setup cost is applied to that one unit. This includes CAM programming, machine setup, tooling, and quality inspection. For mass production, this setup cost is amortized (spread out) over thousands of units, making the per-unit price drastically lower.
