I. Introduction

Welcome to the definitive guide on Computer Numerical Control (CNC) machining. In a world that demands precision, speed, and repeatability, CNC machining stands as a cornerstone of modern manufacturing. It's the technology that turns digital designs into tangible, high-precision parts, powering everything from the smartphone in your pocket to the aircraft flying overhead. For businesses, engineers, and innovators, understanding the nuances of this process is crucial for bringing ideas to life efficiently and cost-effectively.

The purpose of this article is to demystify the process by addressing the most frequently asked questions about CNC machining. We will dive deep into the critical aspects of costs, material selection, lead times, design considerations, and quality control. Whether you are a procurement manager sourcing a production run, an engineer designing a new component, or an entrepreneur developing a prototype, this guide will provide the clear, actionable answers you need to navigate your next CNC machining project with confidence.

II. What is CNC Machining?

1. What is the definition of CNC Machining?

CNC (Computer Numerical Control) machining is a subtractive manufacturing process that utilizes computer-controlled machines and cutting tools to progressively remove material from a solid block (known as a blank or workpiece) to create a part based on a 3D digital model. Unlike additive processes like 3D printing which build objects layer by layer, CNC machining carves out the final shape from a larger piece of material, resulting in excellent mechanical properties and surface finishes.

The process begins with a Computer-Aided Design (CAD) file. This 3D model is then converted into a set of machine-readable instructions called G-code. The G-code dictates every movement of the cutting tools—their direction, speed, feed rate, and coordinate location—allowing the machine to execute the manufacturing process with extreme precision and automation.

2. What are the key CNC machining processes?

CNC machining encompasses several distinct processes, each suited for creating different types of geometries:

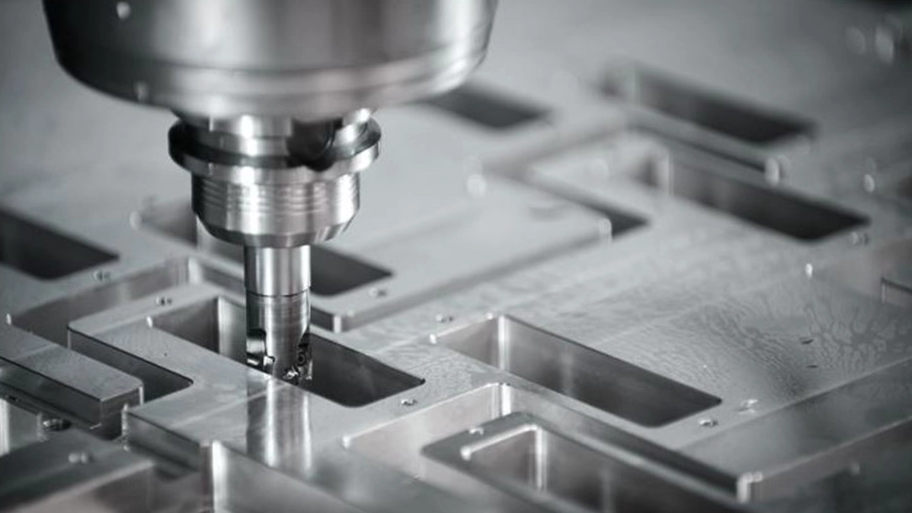

• CNC Milling: This is the most common CNC process. The workpiece is held stationary while a multi-point rotating cutting tool moves along multiple axes to remove material. Milling is ideal for creating flat surfaces, pockets, slots, and complex 3D contours. Machines range from simple 3-axis setups (moving in X, Y, and Z) to advanced 5-axis machines that can create highly complex geometries in a single setup.

• CNC Turning: In turning, the workpiece is mounted on a chuck and rotates at high speed while a stationary single-point cutting tool moves along its surface to remove material. This process is used to create cylindrical, conical, and spherical parts like shafts, pins, and custom fasteners. Machines that combine both milling and turning capabilities are called lathes or turning centers.

• CNC Drilling: This process is used to create holes in a workpiece. It uses rotating drill bits to produce holes of specific diameters and depths, which can then be further refined through processes like boring or reaming for tighter tolerances.

• CNC Grinding: This is a finishing process that uses a rotating abrasive wheel to remove minute amounts of material, achieving very fine surface finishes and extremely tight tolerances.

3. What are the common applications of CNC machining?

CNC machining's versatility and precision make it indispensable across a vast range of sectors:

• Aerospace: Manufacturing of critical components like turbine blades, engine mounts, and structural brackets from high-strength alloys like titanium and aluminum 7075. The process guarantees the tight tolerances and material integrity required for flight safety.

• Automotive: Production of engine components (pistons, cylinder heads), transmission parts, suspension elements, and molds for casting. It's also used heavily in motorsports for custom, high-performance parts.

• Medical: Creation of biocompatible surgical implants (hip joints, bone screws), precision surgical instruments, and components for medical devices like MRI machines and diagnostic equipment. Materials like titanium and PEEK are common.

• Electronics: Machining of enclosures, heat sinks, connectors, and casings from materials like aluminum and copper, which offer excellent thermal conductivity and durability.

• Consumer Products: From the aluminum body of a high-end laptop to the intricate parts inside a digital camera, CNC machining provides the premium feel and robust construction demanded by modern electronics.

III. Common Questions About CNC Machining Costs

4. What factors influence CNC machining costs?

The final cost of a CNC machined part is a combination of machining time, material cost, setup complexity, and production volume. Understanding these key drivers is the first step to managing your project budget effectively.

• Machining Time: This is often the single largest cost factor. The longer a machine is running to produce your part, the more it will cost. Machining time is directly influenced by the part's complexity and the volume of material that needs to be removed.

• Material Type and Cost: The price of the raw material block can vary dramatically. Common aluminum alloys are relatively inexpensive, while high-performance materials like titanium, PEEK, or Inconel can be orders of magnitude more expensive. Furthermore, the material's machinability (how easily it can be cut) affects machining time; harder, tougher materials require slower cutting speeds and cause more tool wear, increasing the overall time and cost.

• Part Complexity and Geometry: Complex designs with features like deep pockets, very thin walls, intricate curves, and multiple small details require more advanced machinery (like 5-axis mills), specialized tooling, and significantly longer programming and machining times. Each unique setup or re-orientation of the part adds to the labor and machine time.

• Volume (Quantity): CNC machining has inherent setup costs for programming the machine and preparing the tooling. These one-time costs are amortized across the number of parts produced. Therefore, the per-part cost decreases significantly as the production volume increases. A single prototype will be expensive, while a run of 1,000 units will have a much lower per-unit price.

• Tolerances: Tolerances define the acceptable deviation for a specific dimension. Standard tolerances (e.g., ±0.125 mm or ±0.005") are relatively easy to achieve. However, demanding tighter tolerances requires more precise machinery, slower machining speeds, special measurement tools (like a CMM), and additional inspection time, all of which increase the cost.

5. How can I reduce CNC machining costs?

You can significantly reduce costs by focusing on Design for Manufacturability (DFM). The most effective ways to lower CNC machining costs are by optimizing the part design for easier manufacturing, selecting cost-effective materials, and ordering parts in larger quantities.

• Design Optimization (DFM):

• Avoid Thin Walls: Walls that are too thin can be prone to vibration and warping during machining, requiring slower speeds. A good rule of thumb is to keep wall thicknesses above 0.8 mm for metals and 1.5 mm for plastics.

• Standardize Radii: Tools used in CNC milling are round, meaning they create an internal radius when cutting a corner. Specifying a corner radius that matches a standard tool size is cheaper than requiring a smaller, non-standard tool. As a general rule, make internal radii at least 1/3 of the cavity's depth.

• Loosen Tolerances: Analyze your design and apply tight tolerances only to the most critical features (e.g., surfaces that mate with other parts). Loosening tolerances on non-critical dimensions can dramatically reduce machining and inspection time.

• Limit Deep Pockets: Pockets with a depth-to-width ratio greater than 4:1 require special long-reach tools that are less stable and must be run at slower speeds, increasing machine time.

• Material Selection: If your application's requirements allow, choose a material with good machinability. For example, if the high strength of Aluminum 7075 isn't strictly necessary, switching to Aluminum 6061 can reduce costs as it is easier and faster to machine.

• Batch Production: As mentioned, increasing the quantity of your order is one of the most direct ways to reduce the cost per part.

6. Are there hidden costs in CNC machining?

While quotes are generally comprehensive, some costs may not be immediately obvious. It's important to clarify these with your service provider.

• Tooling Costs: For parts with highly unique geometries, custom cutting tools may need to be created. This is a non-recurring engineering (NRE) cost that is usually applied to the first order.

• Setup Fees: Most quotes will have a line item for setup fees. This covers the time it takes for a skilled machinist to program the CAM software, set up the machine, and prepare the workpiece and tools. This is why one-off parts are disproportionately expensive.

• Post-Processing/Finishing: The quoted price is often for the "as-machined" part. Services like anodizing, plating, painting, or heat treatment are additional steps with their own costs and lead times.

• Inspection Reports: While standard quality checks are included, if you require a detailed First Article Inspection (FAI) report or a Coordinate Measuring Machine (CMM) report to verify every dimension, this will be an added service.

7. What is the typical cost range for CNC machining projects?

Providing an exact price without a design is impossible, but we can offer general ballpark estimates.

Note: These are rough estimates for illustrative purposes only. Actual costs will vary significantly based on the factors discussed above.

IV. Materials in CNC Machining

8. What materials can be used in CNC machining?

CNC machining is compatible with a massive range of materials, allowing for incredible flexibility in part design and function.

A key advantage of CNC machining is its ability to work with a vast catalog of metals and plastics, enabling the production of parts with specific properties for real-world engineering applications.

9. How do material choices affect cost and performance?

The relationship between cost, performance, and machinability is a critical trade-off in any project.

• Cost vs. Performance: Generally, higher-performance materials come with a higher price tag. PEEK can be 20-30 times more expensive than Delrin, and Titanium is significantly more costly than Stainless Steel. You must balance the need for specific properties (e.g., temperature resistance, biocompatibility) against the project budget.

• Cost vs. Machinability: Material hardness and thermal properties directly impact how long it takes to machine a part. Aluminum 6061 is considered a baseline for machinability—it's soft and cuts easily. In contrast, materials like Titanium and Stainless Steel are harder, generate more heat, and cause more tool wear, requiring slower machine speeds and increasing the machining time and cost, sometimes by a factor of 2-4x compared to aluminum.

10. Can I use custom or exotic materials?

Yes, most experienced CNC shops can work with customer-supplied or custom-sourced materials. However, there are important considerations:

• Availability & Sourcing: Exotic alloys or specific grades of material may have long lead times or high minimum order quantities.

• Machinability Data: If it's a very new or rare material, the shop may not have established data on the optimal cutting speeds and feeds, requiring a more cautious (and thus slower and more expensive) approach.

• Cost: Sourcing and machining exotic materials is always a premium service. Be prepared for significantly higher costs.

11. What are the best materials for specific applications?

Choosing the right material is critical for a part's success.

• Aerospace: For aerospace applications, materials like Titanium (for its high strength-to-weight ratio and temperature resistance) and high-strength aluminum alloys like 7075 are frequently chosen for their performance under extreme conditions.

• Automotive: Durability and cost-effectiveness are key. Stainless Steels are used for exhaust components, while Aluminum 6061 is common for custom brackets and chassis parts. Carbon steel is a cost-effective choice for general-purpose structural components.

• Medical: Biocompatibility and sterilizability are paramount. Titanium and PEEK are widely used for implants due to their non-reactive nature. Stainless Steel 316L is a common choice for surgical tools.

V. Lead Times and Production Timelines

12. What are typical lead times for CNC machining projects?

Standard lead times for CNC machining typically range from 5 to 10 business days for simple parts in low volumes, extending to 4 weeks or more for complex projects, large quantities, or parts requiring post-processing.

Several factors influence this timeline:

• Part Complexity: A simple 3-axis part can be programmed and machined quickly, while a complex 5-axis part requires much more setup and machine time.

• Material Availability: Common materials like Aluminum 6061 are usually in stock. Sourcing specialized alloys or plastics can add days or weeks to the initial timeline.

• Shop Capacity: The current workload of the machine shop plays a significant role. A busy shop will have longer queues.

• Finishing & Post-Processing: Each additional finishing step (e.g., anodizing, painting) adds its own lead time, typically 2-5 business days per step.

13. How can I expedite my CNC machining project?

When speed is critical, you have several options, though they often come at a premium.

• Pay for Expedited Service: Many shops offer a rush service that moves your project to the front of the queue for an additional fee.

• Simplify the Design: A less complex design requires less programming and machining time. Re-evaluate your design for any features that can be simplified without compromising function.

• Choose Common Materials: Select a material that the shop keeps in stock to eliminate sourcing delays.

• Clear and Prompt Communication: Respond quickly to any questions from the provider and approve digital proofs without delay to keep the project moving.

14. What causes delays in CNC machining?

• Design for Manufacturability (DFM) Issues: If the provider discovers a design flaw (e.g., an impossible-to-machine internal corner) during the programming stage, the project will be put on hold until the design is revised.

• Material Shortages: Supply chain disruptions can delay the arrival of raw materials.

• Quality Control Failures: If a part fails inspection, it may need to be reworked or re-machined from scratch, causing significant delays.

• Miscommunication: Unclear instructions, missing information on drawings, or conflicting files can lead to holds and rework.

15. Can I get a prototype quickly?

Yes. Rapid prototyping is a key strength of CNC machining. Many online platforms and local shops specialize in quick-turn services, capable of delivering simple parts in common materials like Aluminum 6061 and Delrin in as little as 24-48 hours. The trade-off is a higher cost compared to standard lead time services.

VI. Design and Technical Considerations

16. What file formats are needed for CNC machining?

To receive an accurate quote and ensure your part is made correctly, providing the right files is essential. The universally preferred file format for CNC machining is a 3D CAD model, with STEP (.stp, .step) being the gold standard, followed by IGES (.igs, .iges). These are solid model formats that contain precise geometric data about the part. While STL files are common for 3D printing, they are less ideal for CNC as they are mesh files and lack the rich data of a solid model. In addition to the 3D file, a 2D technical drawing (usually in PDF format) is highly recommended to specify tolerances, threads, surface finishes, and other critical information not contained in the 3D model.

17. How does part design impact machining success?

The success of a machined part is often determined long before it reaches the machine. Adhering to Design for Manufacturability (DFM) principles is the most important factor in achieving a successful, cost-effective CNC machined part. Good design ensures the part can be made efficiently, accurately, and without unnecessary cost. Key DFM principles include designing with tool access in mind, using standard hole sizes, minimizing setups, and specifying appropriate tolerances.

18. What are common design mistakes to avoid?

Avoiding these common pitfalls will save you time, money, and frustration.

• Overly Tight Tolerances: This is the most common and costly mistake. Specifying tolerances tighter than what is functionally required drastically increases machining and inspection costs.

• Sharp Internal Corners: CNC cutting tools are round, and therefore cannot create perfectly sharp internal corners. All internal corners will have a radius. Designing with a specified radius (ideally a standard tool size) is crucial. Attempting to get a sharp corner requires a secondary process like EDM (Electrical Discharge Machining), which is very expensive.

• Overly Complex Features: Avoid designing features that are difficult or impossible to reach with a cutting tool, such as deep, narrow pockets or channels with no tool access.

• Text and Lettering: Engraving small text is a time-consuming operation that adds significant cost. Only include it if it's absolutely necessary for part identification.

19. Do I need to provide my own CAD files?

Yes, in over 99% of cases, you will need to provide your own 3D CAD files. CNC service providers are manufacturing experts, not design firms. While some larger providers may offer design and engineering services for a separate fee, the standard workflow requires the customer to deliver a complete and finalized digital design. If you cannot create CAD files yourself, you will need to hire a freelance designer or engineering firm to do so first.

VII. Choosing a CNC Machining Service Provider

20. What should I look for in a CNC machining service?

Selecting the right partner is critical to your project's success. Look for a combination of capability, quality, and reliability.

• Capabilities & Equipment: Do they have the right machines for your part? For complex geometries, you'll need a shop with 5-axis milling capabilities. Check the materials they specialize in and the size of parts they can handle.

• Quality Certifications: Look for providers with quality management system certifications like ISO 9001, which indicates they have robust and repeatable processes for ensuring quality. For aerospace or medical projects, more specific certifications like AS9100 or ISO 13485 are essential.

• Customer Reviews & Case Studies: Check their website for examples of past work and testimonials. Look for experience in your industry and with parts of similar complexity to yours.

• Communication & Support: A good provider will be responsive, ask clarifying questions, and offer DFM feedback to help improve your design and reduce costs.

21. How do I evaluate quotes from different providers?

When comparing quotes, look beyond the bottom-line price.

• Compare Apples to Apples: Ensure each quote specifies the same material, quantity, finishing, and lead time.

• Check for Exclusions: Does the price include shipping, setup fees, and material costs? Are there any hidden charges?

• Evaluate Lead Time: A cheaper quote might come with a much longer lead time. Determine which factor is more important for your project.

• Assess Quality Assurance: What level of inspection is included? Does the provider have the metrology equipment to verify your critical tolerances?

22. Can small businesses or individuals access CNC machining services?

Absolutely. The rise of online manufacturing platforms and the accessibility of local job shops have made CNC machining more accessible than ever. Low-volume production runs and even one-off custom parts are now readily available and affordable for small businesses, startups, and individual creators. These services are ideal for prototyping, creating custom jigs and fixtures, or producing niche market products.

23. What questions should I ask my CNC service provider?

Before committing to an order, ask these key questions:

• "What is your standard lead time, and do you offer expedited options?"

• "Can you provide a material certification sheet for the material you will be using?"

• "What quality control and inspection processes do you have in place?"

• "Do you have experience making parts with similar features or for my industry?"

• "Can you provide DFM feedback on my design before I place the order?"

VIII. Quality Control and Precision

24. How is quality ensured in CNC machining?

Quality is not an accident; it's the result of a rigorous process. High-quality CNC machining is ensured through a multi-step process that includes in-process controls, post-machining inspection using precise measurement tools, and adherence to an established Quality Management System (QMS) like ISO 9001. This includes calibrating machines and tools, inspecting the first part of a run ("first article inspection"), and using tools like calipers, micrometers, and Coordinate Measuring Machines (CMMs) to verify that final parts meet all drawing specifications.

25. What are standard tolerances in CNC machining?

Tolerance refers to the acceptable range of variation in a dimension. While CNC machines are very precise, there is always some small amount of variability.

26. What happens if my parts don’t meet specifications?

If you receive parts that are out of the specified tolerance, the first step is to contact your service provider immediately. Provide them with your inspection report or clear evidence of the defect. A reputable provider will work with you to find a solution, which could include:

• Rework: If possible, the parts may be sent back for minor modifications to bring them into spec.

• Replacement: The provider may re-machine the non-conforming parts at no additional cost.

• Credit or Refund: For certain situations, a partial or full refund for the defective parts may be issued.

IX. Additional Services and Finishing Options

27. What post-processing options are available?

The "as-machined" finish from a CNC machine is often sufficient, but many applications require additional finishing steps to improve appearance, corrosion resistance, or surface properties.

• Anodizing (Aluminum only): An electrochemical process that creates a strong, corrosion-resistant, and decorative oxide layer on the surface of aluminum parts. Can be dyed in various colors.

• Plating: Coating the part with a thin layer of another metal, such as nickel (for wear resistance) or chrome (for hardness and appearance).

• Powder Coating: Applying a dry powder that is then cured with heat to create a durable, protective, and colorful finish that is tougher than conventional paint.

• Bead Blasting: Creates a uniform matte or satin surface finish.

• Heat Treatment: Altering the metallurgical properties of a metal part to increase its hardness, toughness, or ductility.

• Polishing: Creates a smooth, reflective surface finish.

28. Can CNC machining be combined with other processes?

Yes, CNC machining is often a key step in a larger manufacturing workflow. It is frequently combined with:

• Welding and Fabrication: Machined components are often welded together to create larger assemblies.

• 3D Printing: A common workflow is to 3D print a cheap, fast prototype to check form and fit, then CNC machine the final functional part from a production-grade material.

• Laser or Waterjet Cutting: Used to cut large sheet material into blanks, which are then finished with CNC machining.

29. How do finishing options affect cost and lead time?

Every post-processing step will add both cost and time to your project. The increase depends on the process itself. Anodizing, for example, might add 3-5 business days and 10-20% to the part cost, while a complex multi-coat paint job could add weeks and significantly more cost. Always factor these additional steps into your overall project plan.

X. Common Challenges and Solutions

30. What are common issues in CNC machining projects?

• Miscommunication: Vague instructions or incomplete drawings are a primary source of errors.

• Design Errors (DFM): Designs that are difficult or impossible to machine lead to delays and increased costs.

• Material Defects: Flaws within the raw material block can be discovered mid-process, requiring a restart.

31. How can I avoid delays or quality issues?

The best way to prevent issues is through clear communication and thorough planning. Provide a complete technical package, including a 3D CAD model and a detailed 2D drawing that specifies all tolerances, materials, finishes, and other requirements. Engage with your supplier and be open to their DFM feedback—they are experts in manufacturing and their suggestions can save you money and improve your final product.

32. What if my project requires unique specifications?

For projects with highly unique requirements—be it an exotic material, exceptionally tight tolerances, or a complex finishing process—early and detailed collaboration with your provider is key. Not all shops have the same capabilities. You must find a provider who specializes in the type of work you need and discuss your requirements in-depth before placing an order to ensure they have the expertise and equipment to succeed.

XI. Conclusion

CNC machining is a powerful and versatile technology essential for modern product development and manufacturing. By understanding the core drivers of cost, the trade-offs in material selection, and the factors that influence lead times, you can approach your projects with a strategic mindset.

The key takeaways are clear: prioritize Design for Manufacturability, choose materials that fit both your performance needs and budget, and communicate clearly and thoroughly with your manufacturing partner. A successful CNC project is a collaborative effort between the designer and the machinist. By asking detailed questions and working with a reputable provider, you can transform your digital designs into high-quality, functional parts that meet your exact specifications.

Ready to start your project? Begin by finalizing your CAD model, creating a detailed technical drawing, and reaching out to a qualified CNC machining service for a quote.
