In the intricate world of CNC machining, achieving precision, efficiency, and desired surface quality hinges on a multitude of parameters. Among these, spindle speed stands out as a critical factor, directly influencing the outcome of nearly every cutting operation. Whether you're engaged in metal CNC machining, aluminum CNC machining, or working with more specialized materials like plastics or ceramic CNC machining, understanding spindle speed is fundamental.
At its core, spindle speed refers to the rotational velocity of the cutting tool or workpiece in a CNC machine. It's typically measured in Revolutions Per Minute (RPM). Imagine a drill bit spinning or a workpiece rotating on a lathe; the speed at which it turns is its spindle speed. The spindle, a vital component of any automotive CNC machine or general-purpose CNC, holds the tool or workpiece and provides the necessary rotational motion for material removal. For CNC machining manufacturers and anyone involved in CNC machining services, mastering this parameter is essential for producing precision CNC machined parts.
While often used interchangeably by beginners, spindle speed (N) and cutting speed (Vc) are distinct yet intrinsically linked concepts.
Cutting Speed (Vc), also known as surface speed, is the speed at which the cutting edge of the tool moves relative to the workpiece material. It's measured in meters per minute (m/min) or surface feet per minute (SFM). This parameter is perhaps the most crucial for determining overall machining performance, directly impacting tool life, surface finish, and material removal rate.
Spindle Speed (N), as mentioned, is the rotational speed of the spindle in RPM.
The connection lies in their mathematical relationship:
N=π×D1000×Vc
Where:
N = Spindle Speed (RPM)
Vc = Cutting Speed (m/min)
D = Diameter of the tool (for milling/drilling) or workpiece (for turning) (mm)
pi ≈ 3.14159
For instance, when performing CNC turning services, the cutting speed is determined by the workpiece's diameter, while the spindle speed is adjusted to achieve that desired cutting speed. Similarly, for CNC precision milling operations, the tool's diameter dictates the relationship. A clear understanding of this relationship allows precision CNC machining shops to optimize their processes for applications ranging from rapid CNC prototyping to high volume CNC machining.
Optimizing spindle speed isn't just about following formulas; it's about achieving superior results in your CNC workholding fixtures.
Impact on Material Removal Rate (MRR): A higher, appropriate spindle speed can significantly increase the MRR, leading to faster production cycles. This is particularly valuable in rapid CNC machining and for small batch CNC machining where efficiency is paramount.
Decisive Role in Surface Finish: Incorrect spindle speed is a common culprit for poor surface finish. Too low, and you might get tearing or a rough finish; too high, and excessive heat can lead to material smearing or burning. Achieving mirror-like finishes often requires precise control over spindle speed, crucial for precision CNC parts and cnc machined products where aesthetics matter.
Key to Extending Tool Life: Every cutting tool has an optimal speed range. Operating outside this range can lead to premature wear, chipping, or even catastrophic tool failure. By maintaining the correct spindle speed, CNC machining companies can maximize the lifespan of their costly tools, reducing overall CNC machining cost. This is a cornerstone of efficient precision machining CNC.
Heat Management and Temperature Control in the Cutting Zone: Cutting generates heat. Spindle speed directly influences how much heat is generated and how effectively it's dissipated. Too much heat can damage the workpiece, the tool, or even the machine. Proper spindle speed, along with effective cooling, helps maintain stable temperatures, especially vital in CNC machining metal parts where thermal expansion can affect dimensional accuracy.
By carefully controlling spindle speed, CNC machining factory operations ensure that the cutting process is efficient, the parts meet quality standards like those required for precision CNC machined parts, and tooling investments are protected.
Understanding the theoretical importance of spindle speed is one thing; accurately calculating and applying it in real-world CNC machining scenarios is another. This section delves into the precise formulas and practical considerations for determining the optimal spindle speed, ensuring your precision CNC machining parts meet the strictest specifications.
The fundamental formula for calculating spindle speed (N) is derived directly from the desired cutting speed (Vc) and the diameter (D) of the cutting tool or workpiece.
N=π×D1000×Vc
Let's break down the components and their units:
N: Spindle Speed (Revolutions Per Minute, RPM) – This is the output we're trying to find, representing how fast the spindle needs to rotate.
Vc: Cutting Speed (meters per minute, m/min) – This critical input represents the ideal speed at which the cutting edge should move through the material. This value is typically recommended by tool manufacturers and varies significantly based on the workpiece material, tool material, and machining operation.
pi: Pi (approximately 3.14159) – A mathematical constant.
D: Diameter (millimeters, mm) – For milling and drilling, this is the diameter of the cutting tool. For turning, it's the diameter of the workpiece being cut.
When Vc is in m/min and D is in mm, the formula directly yields N in RPM. This is the most common form you'll encounter in CNC machining services China and other global manufacturing hubs.
For imperial units, where Vc is in Surface Feet Per Minute (SFM) and D is in inches, the formula needs a conversion factor. The constant 3.82 (which comes from 12 divided by pi) is often used to simplify:
N=π×DVc×12≈DVc×3.82
Where:
N = Spindle Speed (RPM)
Vc = Cutting Speed (SFM)
D = Diameter (inches)
It's crucial to consistently use either metric or imperial units throughout your calculations to avoid errors.
While the formula is straightforward, practical application involves a few nuances:
Obtaining the Correct Cutting Speed (Vc) Value:
Tool Manufacturer Data: This is your primary source. Reputable CNC machining manufacturers and tool suppliers provide charts or online calculators with recommended Vc values for various tool-material combinations.
Material Specifics: Different grades of the same material (e.g., different types of steel or aluminum CNC machining) will have different optimal Vc ranges.
Operation Type: Roughing operations might use a slightly lower Vc for material removal, while finishing passes demand a higher Vc for better surface finish.
Selecting and Measuring Tool/Workpiece Diameter (D):
Milling/Drilling: Use the actual diameter of the cutting tool.
Turning: Use the diameter of the workpiece at the point of cutting. For facing operations, the effective diameter changes, which can be handled by constant surface speed (CSS) control on the CNC machine.
Let's illustrate with some common CNC machining metal scenarios:
Note: These are illustrative examples. Actual values will vary based on specific tool geometry, coatings (e.g., TiAlN for steel, DLC for aluminum), machine rigidity, and desired surface finish. This is where expertise from a cnc machining business comes into play.
Spindle speed doesn't operate in a vacuum. It's part of a trio of primary cutting parameters that must be balanced for optimal results:
Spindle Speed (N): Controls the rotational velocity.
Feed Rate (F): The rate at which the cutting tool or workpiece moves relative to each other (e.g., mm/min or inches/min). It's often linked to the feed per tooth/revolution.
Depth of Cut (DOC): How deep the tool penetrates the material.
Optimal machining involves finding the sweet spot where high material removal rates are achieved without compromising tool life or surface quality. This balancing act is crucial for rapid CNC prototyping and precision CNC machining parts, and often requires iterative adjustments during trial runs, especially for complex cnc prototype machining or when dealing with new materials. Modern CAM software often assists in generating these parameters, but a human expert's understanding remains invaluable.
Selecting the correct spindle speed goes far beyond a simple formula; it's a strategic decision influenced by a complex interplay of material science, tool engineering, and operational specifics. This section breaks down the core factors that CNC machining companies and cnc machining manufacturers consider when optimizing spindle speed for diverse applications, from aluminum CNC service to intricate precision CNC machining parts.
The properties of the material being cut are paramount in determining the optimal spindle speed. Different materials react uniquely to heat and cutting forces.
Harder/Stronger Materials (e.g., High-Strength Steel, Titanium Alloys): Generally require lower cutting speeds (and thus lower spindle speeds) to manage heat, reduce tool wear, and prevent excessive cutting forces. High speeds can lead to rapid tool breakdown due to high temperatures and abrasive wear.
Softer Materials (e.g., Aluminum, Plastics): Can typically tolerate higher cutting speeds (and thus higher spindle speeds). These materials generate less heat at the shear zone and are less abrasive, allowing for faster material removal. This is why aluminum CNC machining often involves very high RPMs.
Good Thermal Conductors (e.g., Copper, Aluminum): These materials dissipate heat effectively from the cutting zone. This allows for higher cutting speeds as heat doesn't build up as rapidly in the tool or workpiece.
Poor Thermal Conductors (e.g., Stainless Steel, Nickel-Based Alloys): Heat tends to concentrate in the cutting zone and in the tool itself, leading to rapid tool wear. For these materials, lower cutting speeds are necessary to manage the elevated temperatures.
Tough Materials: Can deform significantly before fracturing, potentially leading to built-up edge (BUE) formation on the tool and poor surface finish. Spindle speed adjustments can help control BUE.
Brittle Materials: Tend to break cleanly. Spindle speed can be higher, but consideration for shock loads and chipping is necessary. This is especially relevant in ceramic CNC machining where brittleness is a major factor.
Steels (Carbon, Alloy, Stainless): Vary widely in machinability. Stainless steels, particularly austenitic grades, are prone to work hardening and require careful control of spindle speed and feed to maintain a consistent cut and prevent excessive heat.
Non-Ferrous Metals (Aluminum Alloys, Copper Alloys, Titanium Alloys): Aluminum alloys, common in cnc aluminum parts and automotive cnc machining, are highly machinable and allow for very high spindle speeds, often limited by the machine's maximum RPM. Titanium alloys, however, are notoriously difficult due to low thermal conductivity and chemical reactivity, demanding low spindle speeds.
Plastics and Composites (e.g., Acrylic, Carbon Fiber): CNC acrylic service and carbon fiber CNC service require specific considerations. Plastics can melt or soften if speeds are too high, leading to gummy chips and poor finish. Composites are abrasive and require diamond-coated tools and often higher speeds to minimize delamination, but proper heat management is key.
Cast Iron, High-Nickel Alloys: Present challenges due to abrasiveness (cast iron) or work hardening and heat resistance (high-nickel alloys), necessitating specific, often lower, spindle speed ranges.
The cutting tool itself plays an equally crucial role. Its material, coating, and geometry are engineered for specific performance envelopes.
High-Speed Steel (HSS): Lower hot hardness, suitable for lower cutting speeds. Good toughness, forgiving for interrupted cuts. Often used in cnc machining prototype scenarios due to cost-effectiveness.
Carbide (Cemented Carbide): Much higher hot hardness and wear resistance, allowing for significantly higher cutting speeds. Dominant in most precision CNC machining applications, including cnc turning parts and cnc precision turning.
Ceramic (Aluminum Oxide, Silicon Nitride): Extremely hard and heat resistant, enabling very high cutting speeds, especially for hard materials at high temperatures. Brittle.
Cubic Boron Nitride (CBN): Second only to diamond in hardness, excellent for machining hardened steels and superalloys at high speeds.
Polycrystalline Diamond (PCD): Ideal for non-ferrous materials (like aluminum CNC parts) and non-metals. Extremely hard and wear-resistant, allowing for very high speeds and superior surface finishes.
Coatings dramatically enhance tool performance by increasing hardness, lubricity, and heat resistance, thus allowing higher spindle speeds.
TiN (Titanium Nitride): General purpose, good wear resistance.
TiAlN (Titanium Aluminum Nitride): Excellent for machining hard materials and dry machining due to high heat resistance. Often used for cnc machining metal parts.
AlTiN (Aluminum Titanium Nitride): Even higher heat resistance than TiAlN.
DLC (Diamond-like Carbon): Low friction, excellent for non-ferrous materials like aluminum and plastics, common in cnc plastic machining services.
Number of Flutes: More flutes mean more cutting edges, allowing for higher feed rates, but chip evacuation can be an issue at high speeds with many flutes. Fewer flutes are better for chip evacuation in materials like aluminum.
Helix Angle: Influences chip flow, cutting forces, and edge strength. High helix angles are often preferred for soft materials at high speeds to promote efficient chip evacuation.
Cutting Edge Type: Sharpness, edge preparation (chamfer/hone) affects cutting forces, heat generation, and tool life, indirectly influencing the permissible spindle speed.
Tool Diameter and Overhang Length: A larger diameter tool or shorter overhang increases rigidity, allowing for higher speeds and feeds without excessive vibration. This is crucial for maintaining precision CNC machined parts and minimizing cnc machining cost.
The specific operation dictates how spindle speed should be applied.
Roughing: Focuses on high material removal. Spindle speeds might be slightly lower than finishing, paired with higher feed rates and depths of cut to remove material quickly.
Finishing: Prioritizes surface quality and dimensional accuracy. Often uses higher spindle speeds with lower feed rates and shallow depths of cut to achieve precision CNC parts and desired surface finishes.
Milling (End Milling, Face Milling, Slot Milling, Cavity Milling): Spindle speed is determined by the cutter diameter and material. 5 axis CNC machining services or multi axis CNC machining operations often demand dynamic spindle speed adjustments as the contact point changes.
Turning (OD, ID, Threading, Grooving): CNC turning services benefit immensely from constant surface speed (CSS) (G96), where the spindle speed automatically adjusts as the workpiece diameter changes to maintain optimal cutting speed. This ensures consistent cut conditions for precision CNC turning and cnc turning service.
Drilling, Boring, Reaming, Tapping: Each has specific recommended speeds based on the tool and material. For tapping, the spindle speed is directly linked to the feed rate by the tap pitch.
Machining thin-walled sections or intricate features, common in rapid CNC prototyping and cnc machined prototypes, requires careful balancing of spindle speed, feed, and depth of cut to prevent deformation and suppress chatter.
The capabilities of the automotive CNC machine or industrial CNC machine itself impose limits on the achievable spindle speed and the forces it can withstand.
Power (kW/HP): Determines the machine's ability to maintain spindle speed under load. Higher power allows for more aggressive cuts at higher speeds.
Torque (Nm/ft-lb): Crucial at lower RPMs for heavy cuts. A machine with high low-end torque can handle larger diameter tools and deeper cuts. The machine's power curve (power vs. RPM) dictates the maximum usable spindle speed for a given material removal rate.
A rigid spindle minimizes deflection under cutting forces, reducing vibration and improving part accuracy. High-precision spindles contribute directly to the quality of precision CNC machined parts.
Rolling Element Bearings: Common, good for a range of speeds, but have speed limits.
Hydrostatic/Aerostatic Bearings: Offer very high rigidity and precision, suitable for extremely high speeds, found in specialized precision machining CNC setups.
The overall stiffness of the machine (bed, column, guideways) affects its ability to absorb cutting forces and vibrations. A more rigid machine can sustain higher spindle speeds and feeds without leading to chatter.
Every machine has a physical maximum RPM it can achieve. While calculations might suggest higher speeds, the machine's limit is the ultimate constraint.

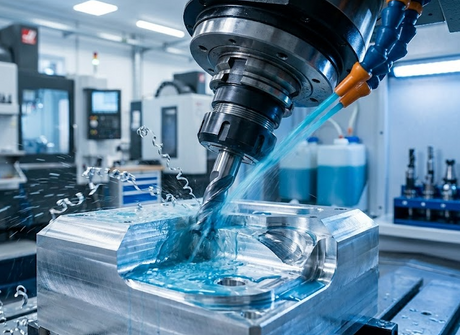

Coolants and lubricants are not just add-ons; they are integral to optimizing spindle speed.
Cooling: Reduces heat in the cutting zone, preventing workpiece thermal distortion and extending tool life, especially critical at high spindle speeds.
Lubrication: Reduces friction between the chip, tool, and workpiece, lowering cutting forces and improving surface finish.
Chip Evacuation: Helps flush chips away from the cutting zone, preventing chip recutting and associated heat buildup, which allows higher effective spindle speeds.
Different coolant types (emulsions, cutting oils, minimum quantity lubrication (MQL), air blast) have varying efficiencies and are chosen based on material, operation, and desired spindle speed. Internal tool cooling, where coolant is delivered directly through the tool, is highly effective for deep holes and high-speed applications.
Beyond fundamental calculations, modern CNC machining leverages advanced techniques to push the boundaries of efficiency, precision, and tool life. This section explores how these sophisticated approaches, vital for precision CNC machining parts and complex 5 axis CNC machining services, optimize spindle speed for superior performance.
High-Speed Machining (HSM) is a transformative approach that utilizes significantly higher spindle speeds and feed rates with lighter depths of cut to achieve exceptional material removal rates and superior surface finishes. This method is particularly prevalent in aluminum CNC machining and the creation of molds and dies, where surface quality is paramount.
HSM is characterized by:
Significantly higher spindle speeds: Often exceeding 15,000 RPM, sometimes reaching 100,000 RPM or more.
Higher feed rates: Proportionate to the increased spindle speed, maintaining a consistent chip load per tooth.
Reduced depths of cut: Lighter cuts minimize cutting forces and heat.
The primary advantages of HSM include dramatic reductions in machining time, improved surface finish that often eliminates the need for secondary operations like polishing, and extended tool life due to efficient heat dissipation through chips.
Achieving HSM requires specialized machine components:
Ceramic Bearings: Offer higher stiffness, lower friction, and better thermal stability than traditional steel bearings, enabling much higher rotational speeds.
Direct-Drive Spindles: Eliminate belts and gears, reducing vibration, improving power transmission, and allowing for higher dynamic response and maximum RPM.
Advanced Spindle Cooling Systems: Essential for managing the significant heat generated within the spindle at extreme RPMs.
In HSM, the goal is often to match the spindle speed to the natural frequency of the tool and machine system to avoid resonance and chatter. Smaller diameter tools are preferred as they can achieve higher RPMs for a given cutting speed. This careful orchestration of parameters is key for successful rapid CNC machining and rapid CNC prototyping.
Variable Spindle Speed (VSS), also known as Spindle Speed Variation (SSV) or Spindle Speed Oscillation, is a technique primarily used to mitigate and suppress chatter during machining. Chatter, a self-excited vibration, can severely degrade surface finish, reduce tool life, and even damage the machine.
VSS works by slightly and continuously varying the spindle speed within a narrow range (e.g., +/- 5-10% of the nominal RPM). This variation disrupts the regenerative feedback loop that causes chatter, as the tool's contact frequency with the workpiece changes constantly, preventing a stable vibration mode from forming.
Commonly used for: Thin-walled parts, long slender tools (e.g., in cnc machining prototype with high length-to-diameter ratios), and materials prone to vibration (like stainless steel).
Effects: Significantly improved surface finish, extended tool life by reducing dynamic loads, and quieter machining operations. Some advanced CNC controllers have built-in VSS functions. This method is increasingly applied in precision CNC machining where surface quality is paramount.
Chatter is the bane of many CNC machining operations, particularly for cnc machined products requiring high precision.
Regenerative Chatter: The most common and problematic. It occurs when a previous cut's wavy surface causes vibrations in the current cut, which in turn leaves another wavy surface, perpetuating the cycle.
Modal Chatter: Caused by the tool or workpiece vibrating at its natural frequency.
Forced Vibration: Caused by external factors like imbalanced tools, worn bearings, or machine structural issues.
Chatter manifests as:
Poor surface finish (wavy marks, "chatter marks").
Excessive noise.
Accelerated tool wear and premature tool failure (chipping, fracturing).
Reduced dimensional accuracy.
Potential damage to the machine spindle or components.
Addressing chatter often requires a multi-pronged approach:
Adjusting Spindle Speed and Feed: Often, a slight increase or decrease in spindle speed can move the operation out of a chatter zone. Adjusting feed rate (e.g., increasing chip load) can also help stabilize the cut.
Optimizing Tool Selection:
Unequal Flute Spacing (Variable Helix) Tools: Designed to break up harmonic vibrations, very effective in reducing chatter.
Shorter Tool Overhang: Increases tool rigidity.
Larger Tool Diameter: Generally more rigid.
Improving Workpiece Clamping Rigidity: Secure workholding with robust cnc workholding fixtures minimizes workpiece vibration.
Modifying Depth of Cut or Width of Cut: Reducing the cutting engagement can often stabilize the process. Sometimes, increasing the depth of cut can also move out of a chatter zone.
Machine Damping Optimization: Some advanced machines have active or passive damping systems to absorb vibrations. Ensuring proper machine leveling and foundation can also help.
Software-Based Solutions: Some CAM systems and machine controllers offer features for stability lobe prediction, helping operators choose optimal spindle speeds and depths of cut to avoid chatter.
Modern CNC machining moves towards data-driven optimization.
Many modern CNC machines are equipped with sensors that monitor spindle load, current draw, and power consumption in real-time. This data provides immediate feedback on the cutting process. High or fluctuating loads can indicate tool wear, chatter, or incorrect cutting parameters.
Advanced CAM software (e.g., for 4 axis CNC machining or 5 axis CNC service) goes beyond basic tool path generation. It incorporates:
Material Removal Simulations: Predict cutting forces and power consumption.
Adaptive Machining Strategies: Automatically adjust feed rates and, in some cases, spindle speeds based on material conditions or remaining stock to maintain a constant chip load. This is especially useful for custom CNC machining China where diverse materials are handled.
Tool Path Optimization: Creates smoother tool paths that reduce sudden changes in cutting forces, promoting stability at higher speeds.
The cutting edge of optimization involves closed-loop systems:
Adaptive Control: These systems use real-time sensor data (e.g., spindle load, vibration) to automatically adjust cutting parameters (primarily feed rate, sometimes spindle speed) during the machining process. If the load exceeds a threshold, the feed rate is reduced; if it's too low, the feed rate can be increased.
Force Feedback Systems: Directly measure cutting forces and adjust parameters to maintain a desired force, preventing tool overload and improving process stability.
These intelligent systems are driving the future of Industrial CNC Machining Solutions, pushing towards fully autonomous and optimized production of precision cnc machined components.
V. Practical Spindle Speed Operation and Troubleshooting
Even with a solid theoretical understanding, the real test of spindle speed mastery comes on the shop floor. This section bridges the gap between theory and practice, guiding you through the practical aspects of setting spindle speed in CNC programs, making real-time adjustments, and troubleshooting common issues that arise from incorrect settings. This is crucial knowledge for any cnc unternehmen striving for efficiency and quality in their cnc machining services.
In CNC machining, spindle speed is typically commanded using the S code followed by the desired RPM value.
S Command: S followed by a numerical value directly sets the spindle speed in RPM.
Example: S2500 would set the spindle speed to 2500 RPM.
M-Codes for Spindle Control:
M03: Spindle ON, Clockwise rotation. This is the most common command for milling and drilling.
M04: Spindle ON, Counter-clockwise rotation. Used for specific operations like left-hand tapping or for tools designed for reverse rotation.
M05: Spindle OFF.
Example Sequence:
G-Code
S3000 M03 ; Set spindle to 3000 RPM and turn on clockwise
; (Cutting operations here)
M05 ; Turn spindle off
Proper sequencing of S and M codes is essential; typically, S is given before M03/M04 to ensure the spindle reaches the commanded speed before cutting begins.
For CNC turning services, especially when producing cnc turning parts, maintaining a constant cutting speed (Vc) is often more desirable than a constant spindle speed. This is because as the tool moves closer to the center of the workpiece, the circumference decreases, and a constant RPM would lead to a decreasing cutting speed.
G96 (Constant Surface Speed - CSS): This G-code instructs the machine to automatically adjust the spindle speed (RPM) to maintain a programmed Vc as the tool moves across varying diameters of the workpiece.
Example: G96 S150 (sets cutting speed to 150 m/min or SFM, depending on the unit setting).
G97 (Constant Spindle Speed): This G-code cancels G96 and sets the spindle to a fixed RPM. It's used when a constant RPM is desired or when G96 is not practical (e.g., small internal bores where RPM could become excessively high).
Example: G97 S2000 (sets spindle to fixed 2000 RPM).
Using G96 is a hallmark of efficient precision CNC turning, ensuring optimal chip formation and surface finish throughout the turning operation, making it ideal for precision CNC machined components and precision CNC parts.
Even with sophisticated CAM software and calculated parameters, real-world machining often requires fine-tuning.
Always begin with the cutting speed (Vc) and feed per tooth (Fz) recommendations provided by your tool manufacturer. These are established through extensive testing and provide an excellent baseline. If you're working with a cnc machining manufacturer or cnc machining factory, they often have internal best practices derived from experience.
The initial calculated spindle speed is a starting point. The real optimization happens during test cuts:
Observe Chip Formation:
Ideal Chips: Consistent size, shape, and color (e.g., C-shaped for ductile materials, needle-like for brittle materials). Indication of good chip evacuation and heat management.
Long, Stringy Chips: May indicate insufficient feed or excessive spindle speed, leading to chip entanglement and potential tool breakage.
Powdery Chips (for ductile materials): Could mean too low a spindle speed or too high a feed, resulting in crushing rather than shearing.
Evaluate Surface Finish:
Smooth, Consistent Finish: Indicates optimal parameters.
Rough, Tearing, or Melted Surface: Often a sign of incorrect spindle speed. Adjust incrementally.
Chatter Marks: See Section 4.3 for detailed troubleshooting, but often a slight change in spindle speed can alleviate them.
Listen to the Sound (Noise): A stable, consistent cutting sound is desirable. High-pitched squealing often indicates rubbing or chatter. A deep rumbling can mean too much force or an unstable cut.
Feel the Temperature (if safe): Excessive heat in the chips or workpiece indicates inefficient cutting.
Making small, iterative adjustments to spindle speed (and often feed rate) based on these observations is the art of real-world machining optimization, crucial for producing precision metal machining parts.
Misjudging spindle speed can lead to a cascade of issues. Understanding these problems helps in quick and effective troubleshooting, minimizing cnc machining cost.
Tool Overheating and Rapid Wear: Excessive friction and heat generation can quickly dull the cutting edge, leading to premature tool failure, especially for tools not designed for high-speed machining.
Tool Chipping or Breakage: Increased thermal stress and cutting forces can cause brittle failure, particularly with carbide tools.
Workpiece Burning or Smearing: For plastics (cnc plastic machining services) and some metals (e.g., aluminum), high heat can cause melting or gummy material build-up on the tool, leading to poor surface finish.
Poor Surface Finish (Burnished or Rubbed): Instead of cutting cleanly, the tool might be rubbing the material.
Increased Chatter: Operating at spindle speeds near the natural frequency of the tool or machine can induce severe chatter.
Inefficient Machining (Low Material Removal Rate): Leads to longer cycle times and increased cnc machining cost calculation.
Surface Tearing or Pull-Out: The cutting edge might not be shearing the material cleanly, causing tearing, especially in ductile materials or when working with cnc acrylic service.
Work Hardening (for certain materials): Materials like stainless steel can work harden if the cutting action is not aggressive enough, making subsequent cuts more difficult.
Concentrated Tool Wear: Insufficient speed can cause friction and wear to be concentrated at specific points on the cutting edge.
Excessive Cutting Force: Lower speeds often mean higher forces per unit time, potentially leading to increased tool deflection and machine strain.
Identification: High-pitched squeals, loud rumbles, or erratic vibrations during cutting.
Root Causes: Often an indication of chatter (as discussed in Section 4.3), improper workholding, worn machine components, or incorrect spindle speed/feed combinations.
Adjustment: Experiment with small increases or decreases in spindle speed. Check tool runout and balance. Secure workholding.
Causes: These can be direct results of thermal expansion (from too high speed), tool deflection (from too low speed or excessive force), or chatter (leaving wavy patterns).
Improvement through Spindle Speed Adjustment: By optimizing spindle speed, you control heat, minimize forces, and suppress vibrations, leading to more accurate precision cnc machining parts and desired surface qualities. This is fundamental for precision machining cnc.

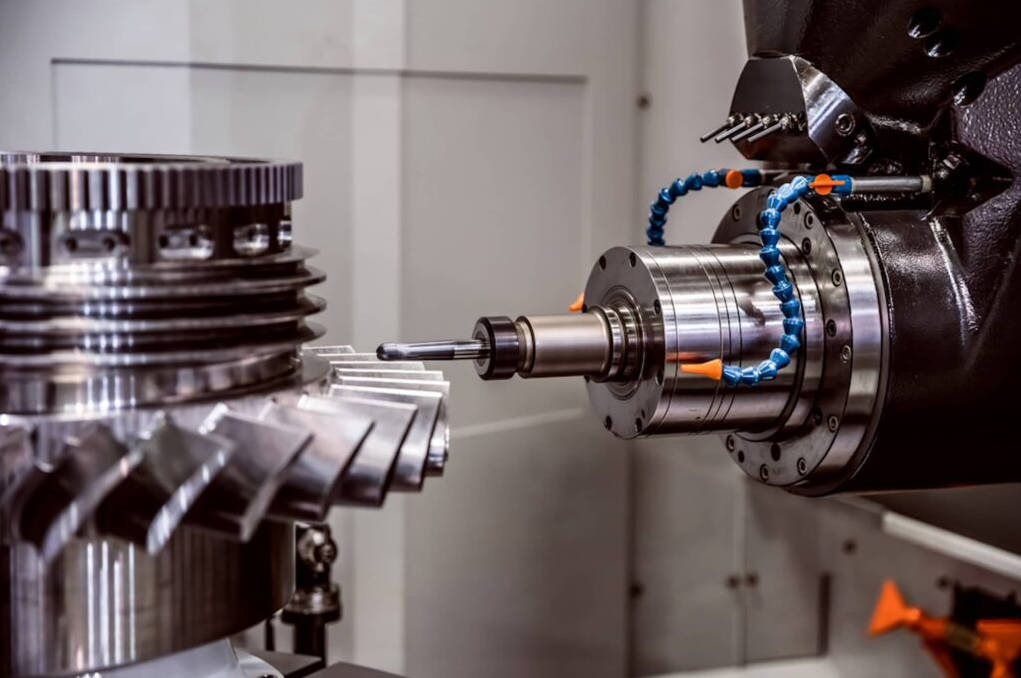

Maintaining the machine's spindle is critical for consistent performance.
Bearing Health: Worn or damaged spindle bearings can cause excessive runout, vibration, and noise, directly affecting the quality of cnc machined products and limiting the usable spindle speed range. Regular inspection and lubrication are vital.
Spindle Taper Cleanliness: Keeping the spindle taper clean and free of debris ensures proper tool seating and concentricity, which is crucial for high-speed operation and accuracy.
Tool Holder Quality: Using balanced and well-maintained tool holders (e.g., HSK, CAT, BT) is essential, especially at higher RPMs, to prevent vibration and ensure precision cnc machined parts. This is a key consideration for cnc machining manufacturers when recommending setups.
By adhering to best practices in setting, adjusting, and troubleshooting spindle speed, alongside diligent machine maintenance, cnc machining companies can maximize output and quality from their automotive cnc machining and other industrial applications.
VI. Future Trends and Outlook for CNC Spindle Speed
The landscape of CNC machining is continuously evolving, driven by technological advancements and the demand for higher precision, efficiency, and sustainability. As we look ahead, the role of spindle speed will become even more sophisticated, integrating with smart technologies and adapting to novel materials and manufacturing paradigms. This section explores the exciting future trends shaping how CNC machining companies approach spindle speed optimization.
The Fourth Industrial Revolution is profoundly impacting how precision machining CNC operations are conducted, with spindle technology at its forefront.
Future spindles will be increasingly equipped with a myriad of embedded sensors capable of real-time data collection. These sensors will monitor not just RPM, but also vibration, temperature, load, power consumption, and even tool wear state. This IoT integration allows for unprecedented insights into the machining process, enabling predictive maintenance for the spindle itself and proactive adjustments to cutting parameters. This is crucial for maintaining high uptime in high volume CNC machining and ensuring the reliability of automotive CNC machining.
The vast amount of data collected from smart spindles will be fed into AI and ML algorithms. These algorithms can:
Predict Optimal Parameters: Learn from past machining successes and failures to automatically suggest the best spindle speed, feed rate, and depth of cut for new material-tool combinations.
Real-time Optimization: Adjust spindle speed dynamically during machining to compensate for material variations, tool wear, or unexpected vibrations, ensuring consistent precision CNC machined parts. This adaptive control minimizes cnc machining cost by extending tool life and reducing scrap.
Automated Anomaly Detection: Identify subtle shifts in spindle behavior that could indicate impending tool failure or machine issues, prompting immediate intervention.
This self-optimizing capability is poised to revolutionize how multi axis CNC machining and other complex operations are performed, requiring less human intervention for parameter tuning.
The increasing use of advanced materials presents both challenges and opportunities for spindle speed optimization.
Composite Materials (e.g., Carbon Fiber, GFRP): Materials like those used in carbon fiber CNC service are abrasive and can cause delamination if not machined correctly. Future spindle technology will focus on ultra-high RPMs to achieve very fine, clean cuts with specialized diamond or PCD tooling, alongside sophisticated dust/fiber extraction systems.
Difficult-to-Machine Alloys (e.g., Superalloys, Ceramics): Materials in ceramic CNC machining and aerospace superalloys demand extremely high hot hardness from tools and precise thermal management. Research continues into specialized spindle designs that can handle higher cutting forces at lower, more controlled speeds, or ultra-high speeds with minimal cutting force, coupled with advanced cooling techniques. Spindles might feature active vibration damping for these challenging materials.
The convergence of additive manufacturing (AM) and subtractive manufacturing (CNC machining) on hybrid machines opens new avenues for spindle speed control.
Post-AM Finishing: Parts created by 3D printing often require precise finishing via CNC. Spindles on hybrid machines will need to seamlessly transition between very high speeds for light finishing passes and potentially lower speeds for more robust material removal on denser areas.
Near-Net-Shape Production: AM can create complex geometries close to the final shape, reducing the amount of material to be removed by the CNC spindle. This allows for focus on high-speed finishing operations, optimizing spindle speeds for surface quality and minimal material waste.
Sustainability is a growing concern, pushing innovation in spindle design.
Energy Efficiency: Next-generation spindles will prioritize energy efficiency through advanced motor designs, optimized bearing systems, and smart control algorithms that minimize power consumption during both cutting and idle states. This contributes to reducing the overall carbon footprint of a cnc machining business.
Reduced Coolant Usage: High-efficiency spindles and optimized cutting strategies (e.g., dry machining, Minimum Quantity Lubrication - MQL) will reduce the reliance on flood coolants, leading to less waste and environmental impact. This is a key driver for cleaner metal CNC machining processes.
The future of spindle speed in Industrial CNC Machining Solutions is bright, promising a shift towards more autonomous, efficient, precise, and environmentally friendly manufacturing processes. Mastering these evolving technologies will be paramount for any cnc service company looking to stay competitive.
