Committing to steel injection molds prematurely risks catastrophic financial loss if design flaws emerge. Scaling too late with expensive one-off prototypes destroys project budgets. The rapid prototyping break-even cost between vacuum casting and injection molding typically occurs between 100 and 300 parts, depending on design complexity.
Before you even reach that tooling volume threshold, validating the physical geometry and material performance is mandatory. Let's analyze the entire cost curve, from initial CNC and 3D printed models to the final tooling decision, ensuring your procurement strategy maximizes ROI at every stage of development.
Choosing the wrong manufacturing method for early validation wastes capital before tooling even begins. Understanding the capabilities of your rapid prototyping methods ensures you don't overspend on molds for unverified designs.
Selecting CNC machining or 3D printing depends on precision, material properties, and functional testing needs. CNC provides high precision and real materials, while 3D printing offers fast geometric validation, both acting as critical prerequisites to determining your final tooling investments.
Before calculating the break-even point for your pilot run tooling, you must have a locked, verified CAD design. Jumping straight to silicone or steel molds without testing physical prototypes is an engineering failure. The decision between CNC machining and 3D printing in these early stages fundamentally alters your project timeline and budget.
Theoretical Basis: Prototyping is a risk-reduction exercise. You are buying data. 3D printing buys you geometric data (does it fit?), while CNC machining buys you mechanical data (does it break?).
Design Trade-offs: If you design a part specifically for 3D printing (e.g., massive internal honeycombs), you may find it impossible to injection mold later. Engineers must prototype using methods that simulate the final mass-production constraints.
Application Example 1: An automotive dashboard vent. The initial shape is tested using SLA 3D printing to check the visual aesthetic on the dashboard.
Application Example 2: An aerospace engine bracket. The prototype must be CNC machined from aluminum to verify load-bearing capabilities before any mold is considered.
Key Cost Drivers Before Tooling:
Machine setup time (high for CNC, low for 3D printing).
Raw material cost per kilogram.
Required post-processing and surface finishing labor.
Engineering validation requires parts that perform identically to the final manufactured product. Subtractive manufacturing remains the industry standard for creating durable, functional test units.
CNC machining cuts parts from solid metal and plastic blocks like aluminum, steel, ABS, and PC, achieving ±0.001 inch tolerances. This subtractive process is essential for creating high-precision, durable functional prototypes utilized during rigorous engineering verification and mechanical testing stages.
When your prototype must endure the exact physical stresses as the final product, simulating the material is not enough. You must use the actual material. CNC machining provides this authenticity, cutting directly from production-grade billets.
Theoretical Basis: Because CNC is a subtractive process from a solid block, the resulting part maintains the isotropic strength of the raw material. This means it has equal strength in all directions, unlike layered 3D prints.
Practical Impact: For engineering validation, if a CNC-machined ABS part passes a drop test, you have a high degree of confidence that the final injection-molded ABS part will also pass.
Application Example 1: Surgical tool handles. Machining these from solid stainless steel allows them to be run through actual hospital autoclaves for sterilization testing.
Application Example 2: High-pressure fluid manifolds. Machining these ensures the internal channels can hold the required pneumatic pressure without microscopic layer leaks.
KAIAO CNC Prototyping Data:
Standard Lead Time: Approximately 1 day for standard prototype parts.
Machining Tolerance: ±0.001 inch (approx. ±0.025 mm).
Maximum Milling Size: 4000 × 1500 × 600 mm.
Compatible Materials: Metals (Aluminum, Steel) and Engineering Plastics (ABS, PC, POM).
Additive manufacturing shines when geometric complexity outweighs mechanical load requirements. It is the ultimate tool for rapid visual checks and initial assembly evaluations.
3D printing builds parts layer-by-layer utilizing SLA, SLS, or FDM technologies. It is highly ideal for rapid concept validation, creating complex geometric structures, and manufacturing visual appearance models, which significantly reduces material waste during the earliest phases of product design iteration.
Additive manufacturing ignores the traditional constraints of "line of sight" machining. If you can model the internal lattice or complex undercut in CAD, the machine can build it.
Theoretical Basis: By adding material only where needed, 3D printing minimizes raw material waste. However, the thermal bonding between layers creates anisotropic properties, making the part weaker along the Z-axis.
Practical Impact: 3D printing is strictly for evaluating the "form and fit" of a design, not the "function." It allows industrial designers to hold a physical representation of their screen model in a matter of days.
Application Example 1: Ergonomic computer mouse housings. Designers can print five different contour variations simultaneously to test which feels best in the hand.
Application Example 2: Architectural scale models or complex artistic geometries that would require unfeasible 5-axis CNC programming to cut.
KAIAO 3D Printing Data:
Standard Lead Time: 4–6 days.
Dimensional Accuracy: ±0.2 mm (parts larger than 100 mm require an additional 0.15% allowance).
Maximum Build Size: 1400 × 700 × 500 mm.
Common Technologies: SLA (Stereolithography), SLS (Selective Laser Sintering), FDM (Fused Deposition Modeling).
Transitioning from prototypes to low-volume pilot runs forces a financial decision. You must balance the upfront tooling cost against the per-part unit price.
Determining the vacuum casting vs injection moldingrapid prototypingbreak-even cost relies on volume, usually falling between 100 and 300 units. Vacuum casting minimizes upfront silicone tooling expenses, whereas injection molding efficiently amortizes expensive hard steel tooling costs across much larger manufacturing production volumes.
The math behind this decision is straightforward but critical for procurement managers. You are comparing high variable costs (Vacuum Casting) against high fixed costs (Injection Molding).

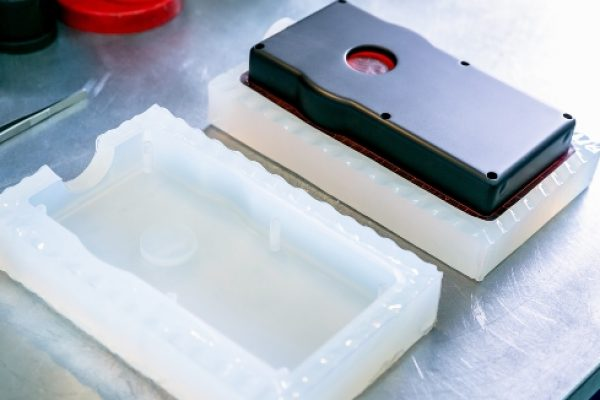

Theoretical Basis: Vacuum casting uses a master pattern to create a soft silicone mold. The mold is cheap, but pouring polyurethane resin under a vacuum is slow and labor-intensive, resulting in a high cost-per-part. Injection molding requires a heavily machined steel tool (high NRE cost), but injects cheap thermoplastic pellets in seconds, resulting in a near-zero cost-per-part.
Cost Analysis: To find the exact break-even point, you calculate: (Cost of Steel Mold - Cost of Silicone Mold) / (Cost per Cast Part - Cost per Molded Part).
Application Example 1: A pilot run of 50 medical device bezels. Vacuum casting is the clear winner. The $500 silicone mold and $20 part cost ($1,500 total) easily beats a $10,000 steel mold.
Application Example 2: A production run of 1,000 drone chassis. Injection molding wins. The $10,000 tool amortized over 1,000 parts makes the unit price competitive, while vacuum casting 1,000 parts would require 50 different silicone molds (they degrade after 20 shots).
The resins used in soft tooling and the thermoplastics used in hard tooling carry different price tags, which dramatically alters the cost equation.
Polyurethane resins utilized in vacuum casting are significantly more expensive per kilogram than standard injection molding thermoplastic pellets. As production volume increases, this high material cost overtakes the initial savings of silicone molds, driving the break-even point toward hard tooling.
Procurement managers must factor in the raw material commodity prices when planning a pilot run.
Theoretical Basis: Vacuum casting utilizes two-part thermosetting liquid polyurethanes designed to simulate the properties of ABS, PC, or TPE. These specialized chemical simulants are inherently expensive to produce and purchase. Injection molding uses standard, widely available thermoplastic pellets purchased by the ton.
Design Trade-offs: If your design requires a highly specialized, expensive engineering resin (e.g., medical-grade PEEK), the high material cost of the injection molding pellets can actually push the break-even volume higher, making CNC machining or vacuum casting viable for slightly larger batches.
Application Example 1: Casting clear PMMA-like optical lenses. The specialized optical-grade PU resin is extremely expensive, making injection molding a better choice if the volume approaches even 200 units.
Application Example 2: Soft-touch overmolded grips. Vacuum casting can easily pour a soft PU rubber over a rigid core, which is excellent for prototyping without buying a complex two-shot injection mold.
Savvy engineering teams do not rely on a single technology. Staging different manufacturing processes across the development timeline mitigates financial risk.
Many enterprises frequently employ 3D printing for rapid initial design validation, subsequently transitioning to CNC machining for functional prototypes utilizing real production-grade materials. This highly effective hybrid prototyping strategy maximizes R&D efficiency, minimizes engineering design risks, and completely validates CAD before investing.
Rushing the timeline is the primary cause of tooling rework. A phased approach ensures that you only pay for high-precision manufacturing when the design is actually ready for it.
Theoretical Basis: By shifting from low-fidelity/low-cost methods (3D printing) to high-fidelity/high-cost methods (CNC or Injection Molding) sequentially, you filter out fundamental design flaws when they are cheapest to fix.
Practical Impact: Utilizing 3D printing for the "Alpha" phase and CNC machining for the "Beta" phase guarantees that by the time you reach the "Pilot" phase (Vacuum Casting or Injection Molding), your risk of a tooling error is near zero.
Application Example 1: Developing a complex robotic joint. Engineers print the housing to check spatial constraints within the robot body, then CNC machine the internal gears to test the load capacity.
Application Example 2: Fluid pump development. The aesthetic outer shell is printed, while the critical internal valve block is machined to ±0.001 inch tolerances to ensure no leakage occurs during bench testing.
Let's examine how a consumer electronics manufacturer structured their prototyping workflow to minimize costs and accelerate their product launch.
A consumer electronics company utilized 3D printing for initial aesthetic models, then transitioned to CNC machining for 50 to 100 functional prototypes. This strategic combination enabled rapid structural validation and thorough market preparation before committing capital to mass-production injection molding.
A major electronics firm was developing a new ruggedized housing for a handheld device. They needed to execute multiple rounds of design validation before cutting a $40,000 steel injection mold.
Phase 1: Rapid Iteration. In the early stages, the engineering team required visual models to assess the product's appearance and the assembly structure of the two halves. They utilized SLA 3D printing. These prototypes were completed in a matter of days, allowing the industrial design team to accelerate their aesthetic iterations without burning through their budget.
Phase 2: Functional Prototyping. Once the overall design scheme was locked, the team needed to run physical drop tests and prepare high-quality samples for early client demonstrations. They abandoned 3D printing and pivoted to CNC Machining to produce a batch of 50–100 functional prototypes.
The Result: By machining these prototypes out of real ABS and PC blocks, they achieved the structural strength and assembly tolerances required for rigorous performance verification. This "3D Print for Concept + CNC for Function" combo strategy allowed them to complete structural validation, functional testing, and market preparation in a fraction of the time, entirely eliminating the risk of modifying a steel mold later.
Understanding the Vacuum Casting vs Injection Molding rapid prototyping break-even cost is fundamentally an exercise in risk management and volume analysis. While the exact crossover point typically rests between 100 and 300 units, arriving at that decision requires diligent early-stage validation. By leveraging the geometric freedom of 3D printing for initial aesthetic checks, and the ±0.001 inch precision of CNC machining for functional testing, procurement managers ensure their CAD data is flawless. Only then can you confidently choose between the low upfront cost of silicone molds for pilot runs, or the aggressive per-unit savings of steel injection tooling for mass market domination.
1. What is the exact formula for calculating the break-even point between tooling methods?
The formula is: Break-Even Volume = (Cost of Hard Tooling - Cost of Soft Tooling) / (Unit Cost of Vacuum Cast Part - Unit Cost of Injection Molded Part).
2. Why is CNC machining considered better for functional testing than 3D printing?
CNC machining is subtractive, cutting parts from solid blocks of production-grade material (metals, PC, ABS). This preserves the material's isotropic strength and achieves extreme ±0.001 inch tolerances, whereas 3D printed parts are layered, anisotropic, and generally weaker under load.
3. How long does a silicone mold last in vacuum casting?
A standard silicone mold used in the vacuum casting process typically yields 15 to 25 high-quality polyurethane parts before the mold degrades, loses fine details, or tears.
4. Can I use the exact same plastic in vacuum casting as I do in injection molding?
No. Injection molding uses thermoplastic pellets that are melted and injected. Vacuum casting uses two-part liquid polyurethane thermoset resins formulated to simulate the physical properties of those thermoplastics (e.g., ABS-like or PC-like resins).
5. What is the maximum size part I can CNC machine compared to 3D printing?
At KAIAO, our maximum CNC milling dimensions are massive: 4000 × 1500 × 600 mm. Our maximum 3D printing build envelope is 1400 × 700 × 500 mm. For very large, single-piece structural components, CNC is often the only viable choice.
6. If I only need 50 parts for a functional test, should I use Vacuum Casting or CNC Machining?
It depends on the geometry. If the part has relatively simple geometry, CNC machining 50 parts from actual production plastic is often superior for testing. If the part has highly complex undercuts or requires overmolding, vacuum casting is more cost-effective.
7. Why does 3D printing have a longer stated standard lead time (4-6 days) than CNC (1 day) for some prototypes?
While a 3D printer can build a single part overnight, the post-processing phase—which includes removing support structures, washing, UV curing, sanding, and painting to achieve a functional finish—often extends the total delivery time compared to a high-speed CNC mill that leaves a near-finished surface immediately after cutting.
