Rapid Prototyping (RP) is the fast fabrication of a physical part, model, or assembly using three-dimensional Computer-Aided Design (CAD) data. It is an indispensable phase in the product development lifecycle, allowing engineers and designers to quickly visualize, test, and iterate on a concept before committing to expensive mass production. By detecting design flaws early, validating functionality, and testing material properties, RP significantly reduces time-to-market, minimizes manufacturing risks, and cuts overall development costs. It is the core of modern product design and manufacturing.
The landscape of rapid prototyping services is diverse, dominated by three key technologies: CNC (Computer Numerical Control) Machining, 3D Printing (Additive Manufacturing), and Injection Molding. For product developers, choosing the right method is a critical decision that impacts budget, timeline, and final part quality. The purpose of this article is to provide a clear, data-driven comparison of these three technologies, helping users select the optimal prototyping method for their specific project needs.
This guide will address common user concerns, including: Which technology offers the fastest turnaround? When does the cost per part justify the high initial setup? What method provides the best material selection and tightest tolerances? We will also provide insights into the trade-offs between speed, cost, and quality to help you make an informed decision on your next prototype fabrication project.
CNC Machining: Widely used in aerospace, automotive, and medical device industries for creating high-precision, functional prototypes and end-use parts, especially those requiring specific engineering-grade metals or plastics and extremely tight tolerances. It's excellent for testing parts that require maximum mechanical strength.

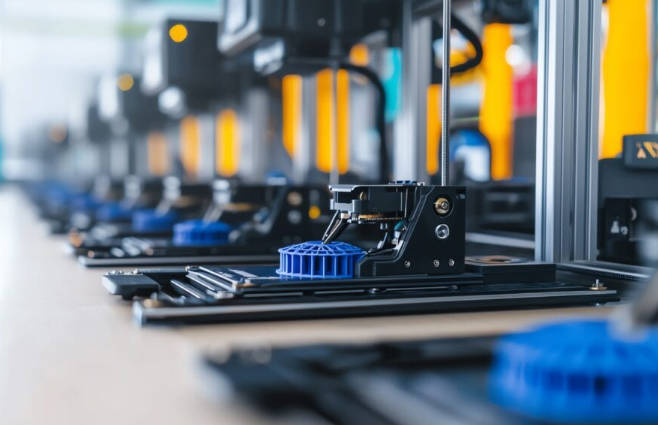

3D Printing: Dominates the early-stage concept visualization and design iteration phases across nearly all industries (consumer electronics, education, fashion). It is ideal for complex, organic, or intricate geometries that are difficult to machine. Modern industrial 3D printing is increasingly used for functional prototypes and low-volume production.
Injection Molding (Prototyping/Low-Volume): Primarily utilized when a design is near final and the goal is to produce functional prototypes in the final production material, often for large-scale testing (e.g., market testing, regulatory approval). It is the standard for high-volume mass production across consumer goods and electronics.
The choice between these methods depends heavily on the project's volume, budget, and performance requirements.
Speed is often the most critical factor in the "rapid" phase.
For the quickest initial part, 3D printing is typically the fastest rapid prototyping option due to minimal setup and tooling requirements. CNC machining is fast once programmed, while Injection Molding's lead time is dominated by mold creation.
Cost is highly dependent on volume and setup complexity.
The material selection affects the prototype's ability to simulate the final product.
CNC Machining: Offers the widest and most robust range of final-production materials, including industrial-grade metals (aluminum, stainless steel, titanium) and engineering plastics (ABS, Polycarbonate, PEEK). This is crucial for functional prototypes requiring maximum strength and durability.
3D Printing: Great variety of plastics (thermoplastics, resins, nylon powders, and some metals). While materials like Nylon 12 (SLS/MJF) and ABS (FDM) are suitable for functional testing, they may not perfectly replicate the mechanical properties of a final-grade injection molded part.
Injection Molding: Provides access to the exact final production materials, including specialized resins, elastomers, and certified medical-grade polymers, ensuring the prototype's performance matches the final product.
Precision defines how closely the physical part matches the CAD design.
CNC Machining: Offers the highest precision and tightest tolerances (often ±0.025 mm to ±0.125 mm) and superior surface finish, making it the ideal choice for parts with critical dimensions, like complex mechanical assemblies or enclosures.
Injection Molding: Delivers excellent repeatability, high accuracy, and the best surface finish (as polished by the mold tool).
3D Printing: Precision is highly dependent on the technology. Industrial SLA and MJF offer good precision, but generally, tolerances are looser than CNC or molding. Parts also exhibit visible layer lines (anisotropy) which may require post-processing.
Scalability refers to the ease of transitioning from a single prototype to large-scale manufacturing.
3D Printing: High flexibility for iterative design and changes; each part is made independently, so design tweaks are simple file edits. However, it scales poorly to high volumes as the cycle time per part remains relatively constant.
CNC Machining: Good for scaling from single prototypes to bridge production (hundreds of parts). Changes require re-programming, but it's faster than modifying a mold.
Injection Molding: Offers the highest scalability for mass production. Once the mold is complete, the process is extremely fast and repeatable, making it the most cost-effective solution for manufacturing thousands to millions of identical parts. The downside is that design changes require expensive and time-consuming mold modifications.
3D Printing, particularly using technologies like Multi Jet Fusion (MJF) or Selective Laser Sintering (SLS), is generally the best for small-batch prototyping (typically 1 to 500 units). The low initial setup cost, minimal investment in tooling, and quick turnaround for design changes make it economically superior for low volumes. For small batches of high-precision, metal functional parts, however, CNC machining is the superior choice.
If your prototype must be made from a final-grade engineering metal (e.g., steel, titanium) for stress testing, choose CNC Machining.
If you need a prototype in the exact final production plastic resin and are planning for mass production, consider Injection Molding with prototype tooling (e.g., aluminum molds).
If you need a quick, cost-effective functional plastic part and a near-final material (like Nylon 12), 3D Printing (SLS/MJF) is a perfect compromise.
Speed vs. Cost: You can have a part fast (3D printing) or cheap (Injection Molding at high volume), but rarely both without compromise. CNC offers a balance but is pricier than 3D printing for one-offs.
Quality/Precision vs. Cost: CNC machining delivers the highest precision and surface finish but is more expensive per part in low volume. 3D printing is cheaper but generally less precise. Injection molding offers high quality and low unit cost, but demands a significant upfront quality investment in the mold.
All three technologies can produce functional prototypes.
CNC Machining excels at creating highly functional prototypes in end-use materials with correct mechanical properties and tight tolerances.
3D Printing (especially SLS/MJF) creates strong, functional prototypes suitable for snap-fits, enclosures, and general testing.
Injection Molding with prototype tooling creates functional prototypes using the exact final production process and material, making them perfect for final validation and testing.
To ensure alignment, follow a tiered approach:
Concept/Visual: Use low-cost 3D printing (FDM/SLA) for form and fit.
Functional Testing: Use CNC or industrial 3D printing (SLS/MJF) in engineering-grade materials for mechanical validation.
Pre-Production/Market Samples: Use low-volume injection molding with prototype molds (bridge tooling) to validate the part in the final material using the production process. This step is critical for a smooth transition to mass manufacturing.
Expertise and Equipment Capabilities: Look for providers who offer all three technologies, as their advice will be unbiased and focused on your project's optimal solution. Inquire about their machine fleet (e.g., 5-axis CNC, specific 3D printer models) and tooling expertise.
Turnaround Time and Reliability: Request a guaranteed lead time and ask about their on-time delivery track record. Reliable service is paramount in rapid product development.
Support for Design Iterations and Feedback: A great partner provides Design for Manufacturing (DFM) feedback early, optimizing your CAD file for the chosen process (be it rapid tooling or subtractive/additive methods), which saves significant time and cost.
For CNC: Minimize deep, narrow pockets, and sharp internal corners (design internal fillets with a radius larger than the tool size). Keep tolerances realistic.
For 3D Printing: Design for the printing process; hollow out large parts to save material and time, and consider the limitations of support structures.
For Injection Molding: Ensure uniform wall thickness, draft angles on all vertical walls, and incorporate necessary features (like ribs) to prevent sink marks or warping during the cooling process.
Always clearly communicate the intent of your prototype: Is it for visual approval, fit-checking, mechanical stress testing, or low-volume market samples? Providing this context allows the rapid prototyping service to recommend the most suitable material, process, and finishing options to meet your goal without over-engineering (and over-costing) the part.
Medical Device Enclosure (3D Printing): A start-up developing a new wearable diagnostic device used SLS 3D printing to quickly produce 20 iterations of the complex, ergonomically-shaped plastic enclosure in Nylon 12. This provided quick, affordable design freedom and functional testing before a design freeze.
Automotive Engine Bracket (CNC Machining): An auto manufacturer required a prototype engine mounting bracket to test vibration and stress performance. They chose 5-axis CNC machining in high-strength aluminum 7075-T6. This ensured the prototype had the exact mechanical properties and dimensional accuracy required for rigorous functional testing in a harsh environment.
Consumer Electronic Casing (Injection Molding): A company needed 500 final-material plastic casings for a user market trial. They invested in a low-cost, prototype aluminum tool for injection molding. Although the initial tooling cost was high, the parts were produced in the final color and material (ABS-PC blend) with the exact surface finish, providing the most accurate representation of the final product for customer feedback.
The aerospace industry often relies on CNC machining for high-tolerance metal fixtures and functional parts, while consumer electronics heavily leverages 3D printing for quick visual models and fit-checks. As the design matures, these industries then transition to low-volume injection molding for pre-production runs and final-material validation. The key is using the right rapid manufacturing tool for the right stage of development.
The selection of the optimal rapid prototyping method boils down to a fundamental trade-off:
For your rapid prototyping project, use 3D printing for design concept validation, CNC machining for high-precision functional parts, and injection molding for high-volume production or final-material pre-production samples. By understanding the strengths of each rapid prototyping technique, you can significantly optimize your product development timeline and budget.
The information provided here is a guide, but your specific part geometry and material requirements are unique. We strongly encourage you to consult directly with experienced prototyping services or digital manufacturing partners. Their engineering expertise can provide tailored DFM advice and ensure you select the most efficient and cost-effective path to bring your product from CAD file to market.
