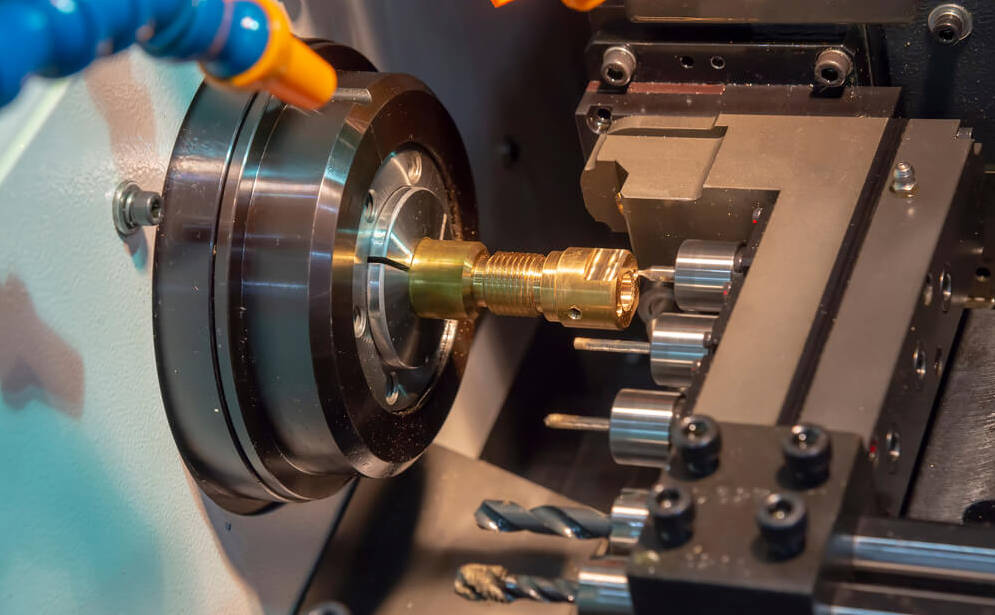

CNC turning is a foundational process in modern manufacturing, utilized across every industry from aerospace to consumer electronics. It involves removing material from a rotating workpiece to create cylindrical parts with high precision. While dimensional accuracy is paramount, an often-underestimated factor that determines a part's functionality, durability, and aesthetic appeal is its surface finish.
The surface texture—specifically, the surface roughness (Ra)—can dictate how a part interacts with others, its resistance to fatigue, and its ability to hold a protective coating. For users seeking CNC turning services, understanding and correctly specifying the desired roughness is key to achieving optimal results and managing costs.
This comprehensive guide addresses common questions and provides actionable strategies for achieving the precise surface finish specifications required for your components.
Surface finish, or surface texture, refers to the microscopic geometry of a surface. In the context of machining, it’s primarily the result of the cutting tool's action.
The most common metric for quantifying surface finish is surface roughness, often denoted as Ra or Rz.
Ra (Arithmetic Average Roughness): Surface roughness (Ra) is the arithmetic average deviation of the surface profile from the mean line, measured in micrometers (μm) or microinches (μin), and is the most common specification used in engineering drawings. It provides a general assessment of the surface texture, smoothing out the highest peaks and lowest valleys.
Rz (Maximum Height of the Profile): This measures the vertical distance between the highest peak and the lowest valley within a sampling length. Rz is more sensitive to deep scratches or isolated defects than Ra.
The quality of the surface finish has profound implications for a part’s performance:
Industries relying on dynamic motion, fluid transfer, or sterile environments demand rigorous control over surface roughness:
Aerospace: Turbine engine components, hydraulic pistons, and structural fasteners where high-fatigue life and minimal friction are essential.
Automotive: Engine shafts, gear components, brake surfaces, and sealing journals.
Medical/Pharmaceutical: Surgical tools, implants, fluidic components, and parts that require a non-porous, easy-to-sterilize surface (often Ra<0.2μm).
Achieving a specific, low-roughness finish is a complex balance dependent on the interplay of several factors within the CNC turning process.
The cutting tool is the direct creator of the surface texture. Its properties are critical:
Tool Geometry: The nose radius is the single most important tool factor. A larger nose radius spreads the chip load over a wider area, theoretically reducing the height of the peaks left behind and resulting in a smoother finish.
Tool Material and Coating: Carbide inserts are standard, but specialized materials like PCD (Polycrystalline Diamond) or CBN (Cubic Boron Nitride) are required for extremely hard materials or for achieving mirror-like finishes.
Tool Wear: A worn, chipped, or dulled tool will inevitably lead to a higher (rougher) Ra value. Tool wear monitoring is crucial for maintaining consistent surface quality across a production run.
The parameters programmed into the CNC machine directly control the mechanics of chip formation, which determines the finish.
Feed Rate (f): This is the distance the tool advances per revolution. Theoretically, the feed rate is the primary driver of surface roughness. Lowering the feed rate is the most effective way to reduce the peak-to-valley height and obtain a smoother finish.
Cutting Speed (Vc): Measured in surface feet per minute (SFM) or meters per minute (m/min), speed affects material flow and heat generation. Generally, a higher cutting speed can improve the finish by causing plastic deformation of the material ahead of the cutting edge, but too high a speed can lead to rapid tool wear and chatter, severely worsening the finish.
Depth of Cut (DoC): While less influential than feed, the depth of cut should be large enough to avoid rubbing (which leads to hardening) but not so large that it introduces excessive deflection or vibration into the setup.
The material being turned significantly affects how a smooth surface can be achieved.
Hardness: Harder materials often require slower speeds and specialized, tougher tooling.
Ductility: Highly ductile materials (e.g., soft aluminum, certain stainless steels) are prone to Built-Up Edge (BUE) formation on the tool tip. BUE is unstable and constantly breaks off, resulting in an erratic, poor surface finish. Proper tool geometry and high-pressure coolant are needed to suppress BUE.
Even perfect parameters can’t overcome a deficient machine.
Rigidity: Any slack, play, or deflection in the machine spindle, tool holder, or tailstock will lead to vibration and chatter, leaving deep, high-frequency marks on the surface. A robust, heavy machine is better suited for low Ra finishes.
Alignment: Proper center height and tool alignment ensure the cutting edge engages the material correctly and symmetrically.
Coolant reduces the temperature at the cutting zone, prevents BUE, and flushes chips away. High-pressure coolant application is often necessary to break chips effectively and ensure a clean cut, crucial for maintaining a high-quality CNC turning surface finish.
Standardization ensures clear communication between the design engineer and the CNC service provider.
Designers use these standards to specify the minimum acceptable surface quality.
Specifications are typically governed by standards like ISO 4287 or ASME B46.1. Drawings must clearly indicate the Ra value, measurement method, and lay (direction of tool marks) for the surface finish in CNC turning.
Achieving low Ra values consistently involves a methodological approach, often moving from standard turning to specialized finishing passes.
To achieve a smoother surface finish in CNC turning, the most critical step is to decrease the feed rate while potentially increasing the cutting speed and ensuring the cutting tool has a large nose radius.
Finishing Pass Strategy: Always use a dedicated finishing pass. This pass should use a very shallow depth of cut (<0.5mm) and a very low feed rate (e.g., 0.02−0.05mm/rev) to minimize tool pressure and the peaks left by the tool.
High Speed, Low Feed: This combination generates less force per revolution and can create a cleaner shearing action, but the machine must be rigid enough to handle the speed without vibration.
For any surface finish below Ra1.6μm, the choice of tooling must be precise.
Large Nose Radius: As noted, a larger tool nose radius (e.g., 0.8mm to 1.2mm) mechanically reduces the height of the feed marks.
Wiper Inserts: These specialized inserts feature a secondary, straight cutting edge that "wipes" away the peaks left by the primary radius, drastically improving the Ra without requiring an excessively low feed rate.
When the required Ra is below 0.8μm (Ra32μin), machining alone is rarely sufficient, necessitating secondary finishing operations.
Grinding: Removes material with an abrasive wheel, providing excellent dimensional tolerance and a surface finish down to Ra0.2μm. Used for hardened steels and bearing surfaces.
Polishing/Buffing: Achieves mirror-like finishes (Ra<0.1μm) by using fine abrasive compounds applied via soft wheels or belts. This process is time-consuming and often done manually.
Honing/Lapping: Extremely fine abrasive processes used for critical surfaces like cylinders or seals to ensure superior flatness and roughness.
For the most demanding specifications:
Diamond Turning: Using single-crystal diamond-tipped tools on ultra-precision lathes to achieve optical-quality surface finishes (e.g., Ra<0.01μm) on non-ferrous materials like aluminum or copper.
Clarity is paramount. Never simply write "smooth finish."
Use the Standard Symbol: Employ the triangular symbol (or checked flags) on the drawing, with the Ra value clearly indicated.
Define the Measurement Method: Specify the cut-off length (sampling length) and whether the entire surface or a specific area is critical.
Provide a Functional Reason: Explaining why a low Ra is needed (e.g., "Mating surface for PTFE seal") helps the CNC service provider select the most cost-effective technique.
A smoother, lower Ra surface finish significantly increases the cost of CNC turning because it often requires more processing time, specialized tooling, slower feed rates, and potential secondary finishing operations like polishing or grinding.
Designers should always specify the roughest finish that meets the part's functional needs, not the smoothest possible. Moving from Ra1.6μm to Ra0.4μm can double or triple the part cost due to the necessity of additional, slower steps.
Titanium and Stainless Steel (High-Temperature Alloys): These difficult-to-machine materials have low thermal conductivity, leading to high heat concentration at the tool tip, causing rapid wear and BUE. Solution: Use rigid setups, positive rake geometry, and flood coolant.
Plastics (Delrin, Nylon): Low melting points can cause smearing rather than clean cutting. Solution: Use sharp tools, high speeds, and very low feed rates, often utilizing air blast instead of liquid coolant to prevent thermal expansion/contraction.
Verification of the final surface finish relies on specialized equipment:
Profilometers: The standard tool. These devices run a fine stylus over the surface and electronically measure the peaks and valleys, directly outputting Ra, Rz, and other parameters.
Visual/Tactile Inspection: Useful for identifying gross defects (chatter, tearing) but not reliable for precise measurement. Surface finish comparator blocks allow for a tactile check against known Ra standards.
Treat your manufacturer as a partner. Provide comprehensive documentation:
Clear Drawings: Include all dimensions and surface finish requirements specified using international standards (Ra values, lay, and cut-off).
Material Certification: Ensure the material supplied meets the specification, as variations can drastically affect the achievable finish.
You can generally only optimize for two out of the three classic trade-offs: Speed, Cost, and Quality (Surface Finish).
High Quality (Low Ra) + Low Cost: Generally requires a higher tolerance for slower lead times.
High Quality (Low Ra) + High Speed: Will always result in the highest part cost.
Select a provider based on their proven expertise in surface finish:
Equipment: Do they have a high-rigidity machine capable of precision finishing passes? Do they utilize high-precision tooling (e.g., polished inserts)?
Quality Assurance: Can they provide traceable calibration reports for their profilometers? What is their process for ensuring batch-to-batch consistency?
Example 1: Achieving Mirror-Like Finishes for Medical Components A manufacturer required a stainless steel bone screw that needed an Ra<0.1μm on the mating surface to prevent contamination and ensure biocompatibility. This was achieved by using a high-positive rake, ground carbide insert with a large nose radius, followed by a diamond-paste polishing pass. Cost was high, but functionality was guaranteed.
Example 2: Optimizing Roughness for Automotive Parts Under High Wear A supplier needed a low-cost, high-volume Ra0.8μm finish for an engine piston shaft. This was met entirely in the CNC lathe (avoiding costly grinding) by utilizing advanced wiper inserts and running a moderately high cutting speed at the lowest practical feed rate, ensuring the finish pass required minimal cycle time.
Example 3: Cost-Effective Surface Finish for Consumer Product Components A component for a cosmetic enclosure required an Ra3.2μm finish for general aesthetics, which is easily achievable via standard CNC turning. The manufacturer was able to use standard tooling and a moderately high feed rate, prioritizing speed and low cost over excessive smoothness.
The pursuit of the perfect CNC turning surface finish is a meticulous balance of materials science, tool mechanics, and machine stability. Surface roughness, most commonly defined by the Ra value, is not merely an aesthetic concern but a critical functional requirement that dictates a part’s life, friction characteristics, and sealability.
Success lies in clear communication and collaboration. By providing your CNC service providers with unambiguous specifications, understanding the cost implications of ultra-smooth surfaces, and focusing on the roughest finish that satisfies your part's function, you can efficiently achieve optimal results.
Consult with experts early in the design phase to validate your material and finish requirements, ensuring a smooth transition from prototype to high-volume production.
What is the typical Ra value for CNC-turned parts? The typical Ra value for a general-purpose, single-pass CNC-turned part is between 1.6μm and 3.2μm (Ra63−125μin). Achieving better values, such as Ra0.8μm or lower, requires dedicated finishing passes, specialized tooling, and slower feed rates.
How does surface finish affect part performance? A rough surface (high Ra) creates stress concentration points, reducing the part's fatigue life and making it prone to premature failure under dynamic loads. It also increases friction between moving parts, leading to higher operating temperatures and accelerated wear.
Can surface finish be improved after CNC turning? Yes, significantly. If the Ra requirement is below what turning can reasonably achieve (Ra<0.8μm), secondary processes like grinding, honing, lapping, or polishing must be employed to refine the surface texture.
How do I choose between polishing and grinding for my parts? Grinding is typically chosen when both extremely high dimensional accuracy (tight tolerances) and a smooth finish (e.g., Ra0.4μm) are required, especially on hardened steel. Polishing is chosen when the priority is a purely cosmetic or mirror-like finish (Ra<0.1μm) and dimensional tolerance is less critical, often on softer metals or plastics.
