In the vast and intricate landscape of modern manufacturing, precision CNC turning stands out as a cornerstone technology. Among its many sophisticated operations, step turning holds a unique and critical position. If you've ever wondered how complex parts with varying diameters are meticulously crafted from a single piece of material, you've likely encountered the silent work of step turning.

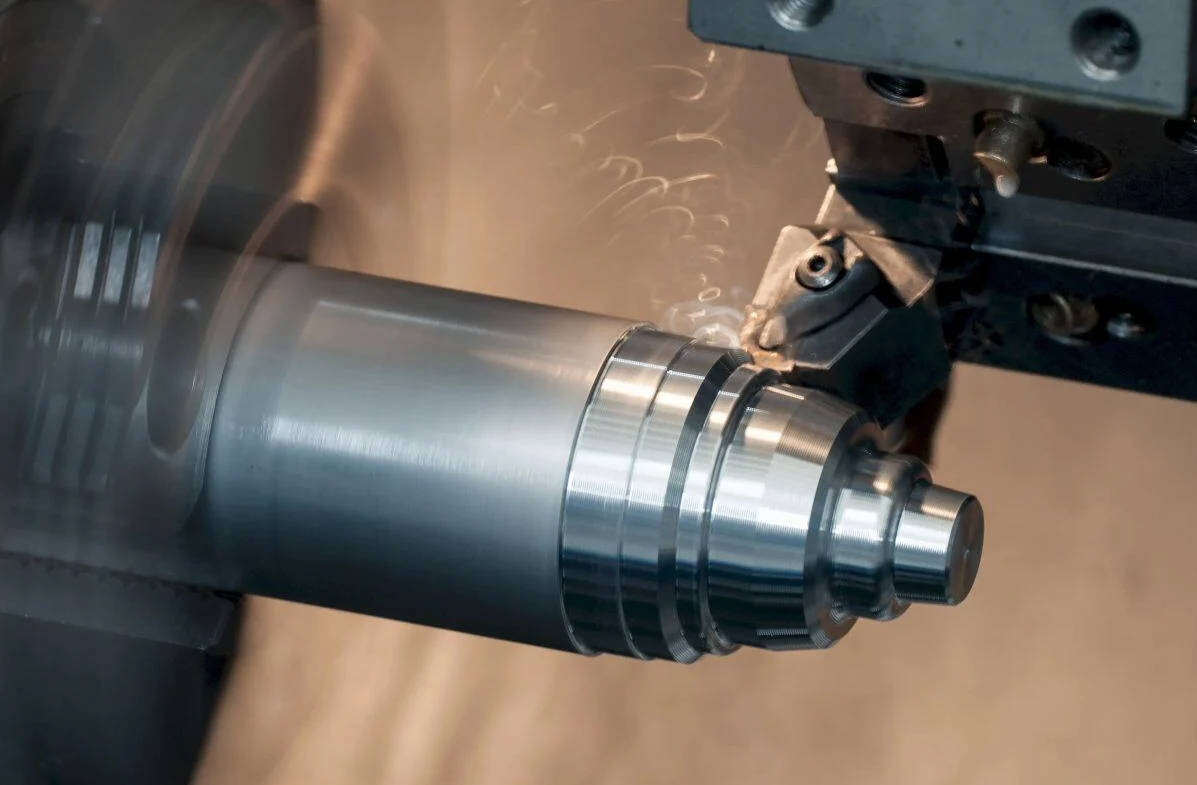

Step turning is a specialized lathe operation that precisely machines two or more distinct diameters onto a single workpiece, characterized by sharp, perpendicular (90°) transitions between these different sections. Unlike gradual tapers or smooth curves, step turning creates distinct "steps" or shoulders along the component's length. This fundamental difference is crucial for parts requiring precise seating, locating, or bearing surfaces.
While traditional turning operations focus on creating a uniform cylindrical shape or a simple taper, step turning is all about creating multiple, precisely defined cylindrical sections of varying diameters. This makes it indispensable for components that need to interface with other parts at specific points. Think of an axle with different sections for bearings, gears, and seals—each transition from one diameter to another is a product of step turning.
The ability to create these distinct steps isn't merely an aesthetic choice; it's driven by critical functional and structural requirements:
Functional Integration: The primary purpose of the stepped section is to provide a precise seat or shoulder for mating components. For instance, CNC custom brass turning parts often feature steps to accommodate seals in fluid systems, or Titanium CNC turning parts in aerospace applications might use steps to precisely locate bearings or structural elements.
Structural Optimization & Weight Reduction: By varying the diameter, engineers can strategically place material only where strength is needed, leading to optimized designs that are robust yet potentially lighter. This is particularly vital in industries like aerospace CNC turning and Automotive part CNC machining, where every gram counts.
Assembly Precision: The distinct shoulders created by step turning serve as highly accurate datum points for subsequent assembly operations, ensuring components fit together precisely and securely. This level of accuracy is why precision CNC turning is so highly valued in demanding sectors like medical CNC turning and defense.
In essence, step turning is not just about removing material; it's about engineering precise interfaces that enable complex machinery to function flawlessly. It's a testament to the capabilities of CNC turning machining, transforming raw material into highly functional, multi-diameter components that form the backbone of countless industrial and consumer products.
Executing successful step turning requires a methodical approach, from preparing the raw material to the final precision cuts. This process leverages the capabilities of modern CNC turning machining to achieve the intricate geometries required for precision CNC turning parts.
The foundation of any successful machining operation begins with proper preparation.
Material Selection and Pre-treatment: The choice of material dictates many of the subsequent machining parameters. Common materials for CNC turning parts include steel, aluminum, brass, and plastics. For example, CNC Turning Machining Stainless Steel and Titanium CNC Turning Parts require different tooling and speeds than CNC Turning Machining Aluminum or CNC Custom Brass Turning Parts. Depending on the starting form (bar stock, forging, casting), the material may need initial cutting or straightening before mounting on the lathe.
Lathe Selection: The type of lathe is crucial. While manual lathes can perform basic step turning, CNC turning machines, particularly CNC Turning Precision Manufacturing centers, offer unparalleled precision, repeatability, and efficiency for complex steps. These machines are the backbone for CNC Machining Company operations globally, from china CNC turning to specialized providers of aerospace CNC machining.
Fixture Selection: Securely holding the workpiece is paramount to prevent vibration and ensure accuracy.
Three-jaw chucks are common for cylindrical parts, offering quick centering.
Four-jaw chucks provide greater clamping force and allow for eccentric work.
Collets are ideal for smaller, high-precision work, offering excellent concentricity.
Live centers or tailstocks support longer workpieces, preventing deflection, which is critical for maintaining concentricity in precision machined CNC parts like shafts.
Workpiece Alignment and Calibration: Proper alignment ensures the workpiece's axis of rotation is perfectly centered with the machine's spindle. This "dialing in" minimizes runout, guaranteeing that all turned diameters are concentric, a vital step for any precision machining CNC operation.
The right cutting tool is critical for achieving the desired geometry, surface finish, and tool life.
Tool Types: A range of turning tools is employed for step turning:
External turning tools (roughing and finishing) for the primary diameter reductions.
Grooving or parting tools are often used for precisely creating the 90-degree shoulder of the step, or for cutting off the part.
Chamfering and radius tools for edge breaking or creating specific design features.
Insert Material: The material of the cutting insert directly impacts performance.
Carbide inserts are versatile and widely used for their hardness and wear resistance, suitable for Aluminum CNC Machining to Stainless Steel CNC Services.
High-speed steel (HSS) is more ductile and often used for softer materials or interrupted cuts.
Ceramics and CBN (Cubic Boron Nitride) are utilized for machining very hard materials at high speeds, extending tool life for challenging jobs.
Tool Geometry: This includes specific angles like rake angle (influences chip flow), relief angle (prevents rubbing), and nose radius (affects surface finish and tool strength). A smaller nose radius can create a sharper corner but may lead to a poorer surface finish; a larger nose radius produces a better finish but a less sharp corner. Understanding this trade-off is crucial for CNC Turning Precision Manufacturing.
Tool Installation and Offset Setting: Tools must be securely clamped in the tool turret or holder. Accurate "tool offsetting" is then performed, where the machine's control system learns the precise position of each tool's cutting edge relative to a reference point. This highly accurate setup is what enables custom CNC turning to achieve tight tolerances.
The actual cutting process in step turning typically involves multiple passes, moving from rough material removal to final precision finishing.
Rough Turning:
Purpose: The primary goal is to remove the bulk of excess material quickly, bringing the workpiece close to its final dimensions.
Parameter Settings: This phase uses larger depths of cut and higher feed rates to maximize material removal, even at the expense of surface finish.
Tool Path: The tool often takes multiple, heavy cuts, gradually reducing the diameter.
Semi-Finish Turning:
Purpose: This intermediate step refines the part's shape, leaving a smaller amount of material for the final pass. It also helps to improve the surface finish and reduce internal stresses from roughing.
Parameter Settings: Moderate cutting parameters are used, balancing material removal with improved surface quality.
Finish Turning:
Purpose: This is where the workpiece achieves its final dimensional accuracy, surface roughness, and geometric requirements. For example, precision CNC machining for medical parts machining requires extremely fine finishes.
Parameter Settings: Small depths of cut, lower feed rates, and higher cutting speeds are employed. This minimizes tool marks and heat generation, resulting in a smooth, precise surface.
Special Requirements: This stage also incorporates specific features like chamfers (angled edges), fillets (rounded corners), or specific grooves, ensuring all design specifications are met for custom CNC machining projects.
Processing the 90-Degree Straight Shoulder (The Critical Step):
Tool Selection: Often, a specialized grooving or parting tool with a specific width and geometry is used to create the perfectly perpendicular shoulder. Sometimes, a standard external turning tool can be carefully plunged radially.
Feed Method: The tool's precise radial and axial movements are critical to ensure the shoulder is perfectly square and at the correct axial position. CNC programming excels here, enabling highly accurate control.
Minimizing Burrs and Stress Concentration: Careful selection of feed and speed, along with appropriate tool geometry, helps to minimize burr formation and reduce stress concentrations at the sharp corner, which is vital for the integrity of Automotive CNC Parts or Aerospace CNC Machining components.
Coolant plays a multifaceted role in the step turning process, significantly impacting tool life, part quality, and chip management.
Functions:
Cooling: Dissipates heat generated by friction and plastic deformation, preventing workpiece thermal distortion and extending tool life.
Lubrication: Reduces friction between the tool and workpiece, improving surface finish and reducing power consumption.
Chip Evacuation: Flushes away chips from the cutting zone, preventing re-cutting and improving surface quality.
Coolant Types and Selection: Choices range from water-soluble oils to synthetic coolants, each suited to different materials and cutting conditions.
Cooling Methods:
Flooding: The most common method, where coolant is continuously sprayed over the cutting zone.
High-Pressure Coolant (HPC): Delivers coolant at high pressure directly to the cutting interface, excellent for chip breaking and cooling, especially with difficult-to-machine materials like those for Titanium CNC Machining.
Minimum Quantity Lubrication (MQL) / Mist: Applies a fine mist of oil, offering a more environmentally friendly approach while still providing lubrication and some cooling.
Achieving optimal results in step turning, especially in precision CNC turning, hinges on the precise control and understanding of several critical machining parameters. These parameters directly influence tool life, surface finish, dimensional accuracy, and overall production efficiency for CNC turning parts.
Cutting speed refers to the rate at which the cutting edge of the tool moves relative to the workpiece surface. It is typically measured in surface feet per minute (SFM) or meters per minute (m/min).
Definition and Calculation: Vc=(π×D×N)/1000 (for mm/min), where D is the workpiece diameter in mm and N is the spindle speed in RPM.
Impact:
Tool Life: Higher cutting speeds generally lead to faster tool wear and reduced tool life due to increased heat generation. This is a critical consideration for expensive tooling used in aerospace CNC turning or for Titanium CNC Machining.
Surface Quality: Optimal cutting speeds contribute to a smoother surface finish. Too slow, and tearing might occur; too fast, and excessive heat can lead to built-up edge or poor finish.
Machining Efficiency: Higher speeds mean faster material removal, improving productivity.
Material-Specific Recommendations:
Aluminum CNC Machining: Generally allows for higher cutting speeds due to its softness and good chip formation.
CNC Turning Machining Stainless Steel: Requires lower cutting speeds due to its work-hardening properties and higher heat generation.
Titanium CNC Turning Parts: Demands very low cutting speeds to manage heat and prevent rapid tool wear, a common challenge in precision machining CNC of exotic materials.
Feed rate is the distance the cutting tool advances along the workpiece's axis for each revolution of the workpiece. It is typically measured in inches per revolution (IPR) or millimeters per revolution (mm/rev).
Definition: The amount of material removed per revolution in the axial direction.
Impact:
Surface Roughness: A lower feed rate generally results in a finer surface finish, as less material is removed per revolution, leading to shallower tool marks. Conversely, higher feed rates produce rougher surfaces but remove material faster. This is a key factor when considering surface finish for medical parts machining.
Chip Formation: Feed rate influences chip thickness and shape, which is crucial for efficient chip evacuation and preventing chip entanglement, a common issue in deep grooves or steps.
Machining Forces: Higher feed rates lead to increased cutting forces, which can affect part stability and machine rigidity.
Roughing vs. Finishing:
Roughing: Higher feed rates are used to maximize material removal, even if it results in a coarser finish.
Finishing: Significantly lower feed rates are employed to achieve the desired surface quality and tight dimensional tolerances for precision CNC machining parts.
Depth of cut is the distance the cutting tool engages the workpiece radially during a single pass.
Definition: The amount of material removed perpendicular to the workpiece axis in one pass.
Impact:
Machining Efficiency: Larger depths of cut mean more material removed per pass, significantly increasing material removal rate (MRR) and thus efficiency, particularly in roughing operations. This directly impacts CNC machining cost and overall production time.
Tool Wear and Force: Greater depth of cut increases cutting forces and heat, leading to higher tool wear. The machine's power and rigidity must be sufficient to handle the increased load.
Part Deflection: Excessive depth of cut, especially on slender parts, can cause workpiece deflection and vibration (chatter), leading to inaccuracies and poor surface finish.
Single vs. Multiple Passes:
Roughing: Often involves large depths of cut in one or a few passes.
Finishing: Requires very small depths of cut to achieve final precision and surface quality.
Beyond the material and type, the specific geometry of the cutting insert plays a vital role.
Rake Angle: Affects chip formation and cutting forces. Positive rake angles reduce cutting forces and improve chip flow, while negative rake angles offer stronger cutting edges for harder materials.
Relief (Clearance) Angle: Prevents the non-cutting part of the tool from rubbing against the workpiece, reducing friction and heat.
Nose Radius: The radius at the tip of the cutting insert. A larger nose radius typically results in a better surface finish and stronger cutting edge, but it can make it harder to machine sharp internal corners.
Chip Breaker Geometry: Critical for managing chips, especially with ductile materials like Aluminum CNC parts. Proper chip breakers ensure chips curl and break into manageable pieces, preventing entanglement around the workpiece or tool.
These are the ultimate measures of a successful precision machining CNC operation.
Dimensional Tolerances and Geometric Tolerances:
Controlling external diameters, internal diameters, lengths of steps, and the perpendicularity of the step face to the axis.
Modern CNC turning services utilizing CNC Turning Precision Manufacturing can achieve very tight tolerances, often down to microns, which is essential for applications like Medical CNC Machining or Automotive CNC Parts.
Surface Roughness:
Measured by parameters like Ra (average roughness).
Influenced by feed rate, nose radius, cutting speed, and coolant application.
Specific surface finish requirements are common for bearing surfaces, sealing surfaces, or aesthetic reasons on custom CNC machined parts.
Table 3.1: Impact of Key Parameters on Step Turning Outcomes
Like any specialized machining process, step turning comes with its own set of unique benefits and complexities. Understanding these aspects is crucial for engineers and manufacturers aiming to leverage precision CNC turning effectively and troubleshoot issues when they arise in the production of CNC turning parts.
The widespread adoption of step turning, particularly in CNC turning services, is a testament to its significant advantages:
High Precision and Repeatability: Modern CNC turning machines excel at executing complex step turning operations with exceptional precision and consistency. This capability is fundamental for producing precision CNC machined parts that meet stringent dimensional and geometric tolerances, critical for industries such as medical CNC turning and aerospace CNC turning.
High Efficiency for Cylindrical Parts: For components that are predominantly cylindrical with varying diameters, step turning offers a highly efficient method of material removal compared to other processes like milling, especially when using high-speed CNC Turning Machining Aluminum or Brass CNC Machining. It allows for continuous cutting, reducing cycle times.
Excellent Surface Quality: Through optimized finish turning passes, step turned parts can achieve superior surface finishes, often required for bearing surfaces, sealing surfaces, or aesthetic applications. This makes it ideal for CNC Turning Precision Manufacturing where the final appearance and feel of the part matter.
Broad Material Applicability: From soft plastics to hard metals, step turning can be performed on a wide array of materials, including CNC plastic turning services, Stainless Steel CNC Services, Titanium CNC Machining, and various alloys used in Automotive part CNC machining and Heatsink CNC machining.
Optimized Material Utilization and Cost Reduction: By removing material only where necessary to create the steps, step turning helps optimize material usage. This leads to less material waste and can significantly reduce the overall CNC machining cost, especially when dealing with expensive raw materials. The ability to produce complex forms in a single setup often reduces the need for secondary operations, further cutting manufacturing expenses for CNC manufacturers.
Despite its advantages, step turning presents several challenges that require careful consideration and skilled execution.
Tool Wear and Life, Especially at the Step Shoulder:
Challenge: The abrupt 90-degree change in cutting direction and the varying chip load when forming the shoulder can lead to rapid tool wear and chipping, particularly with tough materials like those for Titanium CNC turning parts or CNC Turning Machining Stainless Steel.
Solution: Employing advanced cutting tool materials (e.g., specific carbide grades, ceramic inserts with specialized coatings), optimizing tool geometry (e.g., stronger edge preparations, appropriate chip breakers), and implementing suitable cutting parameters (e.g., slightly reduced feed at the shoulder, appropriate cutting speed) can significantly extend tool life. High-pressure coolant can also aid in chip evacuation and cooling at this critical juncture.
Chip Control and Management:
Challenge: The varying diameters and the presence of perpendicular shoulders can make chip breaking and evacuation difficult, leading to long, stringy chips that can wrap around the workpiece or tool, potentially damaging the surface or leading to tool breakage. This is especially true when machining ductile materials like some types of Aluminum CNC parts.
Solution: Utilizing inserts with integrated chip breakers designed for specific materials is paramount. Optimizing feed rate and depth of cut to produce manageable chips, along with effective high-pressure coolant delivery, helps to clear the cutting zone efficiently.
Vibration and Chatter:
Challenge: Machining slender workpieces, deep steps, or using insufficient clamping can lead to excessive vibration (chatter), resulting in poor surface finish, inaccurate dimensions, and accelerated tool wear.
Solution: Ensuring adequate workpiece support (e.g., using live centers, steady rests, or follow rests), maintaining machine and tooling rigidity, optimizing cutting parameters (e.g., slightly altering speed or feed to break resonant frequencies), and selecting appropriate tool overhangs can mitigate chatter.
Dimensional Accuracy and Geometric Tolerances at the Shoulder:
Challenge: Achieving precise perpendicularity, flatness, and the correct axial and radial dimensions at the step shoulder can be difficult due to tool deflection, thermal expansion, or improper machine calibration.
Solution: Accurate tool offsetting and periodic in-process or post-process measurement are essential. Employing robust tools with minimal deflection, compensating for thermal growth of the workpiece or machine, and potentially using multiple finishing passes with very light cuts can ensure the required precision for custom CNC machining and precision machining CNC applications.
Surface Roughness Requirements:
Challenge: Achieving a consistently high surface finish across all diameters and at the shoulder, especially when different machining strategies are employed for roughing and finishing.
Solution: For finishing passes, use tools with a larger nose radius (where feasible) and optimize cutting speed and a reduced feed rate. Ensure sufficient coolant flow and maintain sharp, unworn cutting edges. Post-machining operations like polishing or grinding might be necessary for extremely demanding surface finish requirements, particularly for Medical parts machining.
Step turning is a versatile and indispensable process that underpins the functionality of countless mechanical components across a vast spectrum of industries. Its ability to create precise, multi-diameter features on a single workpiece makes it ideal for a wide range of applications, from everyday consumer goods to highly specialized industrial machinery.
The distinctive stepped geometry produced by CNC turning is essential for parts that require specific interfaces, bearing surfaces, or varying structural strengths. Here are some key application areas:
Drivetrain and Power Transmission Systems:
Shafts of all types: Drive shafts, motor shafts, pump shafts, and gear shafts frequently incorporate steps to precisely locate bearings, gears, pulleys, and seals. This is fundamental in Automotive part CNC machining, where components like crankshafts and camshafts rely heavily on precision-turned steps.
Gear Blanks: Before teeth are cut, gear blanks are often step-turned to define the gear's precise pitch diameter and mounting surfaces.
Fluid Power (Hydraulics/Pneumatics) Components:
Valve Stems and Spools: These often have multiple diameters and grooves for seals and flow control. Precision CNC turning ensures tight tolerances for leak-free operation.
Piston Rods: Stepped designs can provide varying diameters for different sealing requirements or attachment points within a cylinder.
Pump and Valve Components:
Pump Shafts and Impeller Hubs: Precision steps are crucial for proper alignment and sealing in fluid handling systems.
Valve Cores: Intricate steps allow for precise flow regulation in various industrial valves.
Fasteners and Connectors:
Shoulder Bolts and Dowel Pins: These components often feature a stepped design where one section has a larger diameter to serve as a precise locating or bearing surface, while the other is threaded or acts as a press-fit pin. This is common in Custom CNC Machining for specialized fastening solutions.
Tooling, Jigs, and Fixtures:
Many components within manufacturing tooling itself, such as precision locators, arbors, and clamping elements, utilize step-turned features for accurate positioning and rigidity.
High-Tech Industries:
Aerospace CNC Machining: Components for aircraft engines, landing gear, and control systems frequently require complex step-turned shafts, pins, and housings made from specialized alloys like those for Titanium CNC Machining. Weight reduction and high strength are paramount here.
Medical CNC Turning: Medical parts machining for surgical instruments, implants, and diagnostic equipment demands extremely high precision, surface finish, and often intricate stepped geometries, frequently from biocompatible materials.
Robotics and Automation: Components for robotic arms, actuators, and sensor housings often incorporate step-turned shafts and bushings to facilitate precise movement and assembly. CNC Machining for Robotics is a rapidly growing field.
Electronics Cooling (Heatsinks): While often milled, some heatsink designs, especially those integrated into circular or cylindrical housings, might leverage Heatsink CNC machining processes that involve step turning for mounting features.
To truly appreciate the impact of step turning, let's consider a couple of typical parts:
Automotive Drive Shaft:
A typical drive shaft for an automobile will have multiple stepped diameters. One step might be for mounting a universal joint, another for an oil seal, and yet another for a bearing. Each step must be precisely machined to ensure concentricity and perpendicularity, allowing for smooth power transmission and preventing premature wear. For a leading Automotive CNC Parts supplier, achieving these tolerances consistently from materials like specialized steel alloys is a daily challenge and triumph.
Medical Bone Screw (Partial Example):
While much of a bone screw is threaded, the unthreaded neck or head might incorporate a precisely step-turned feature to ensure it sits flush against the bone or to engage a surgical driver. Given the critical nature of these implants, Medical parts machining relies on precision machining CNC to achieve biocompatible finishes and exacting dimensions, often utilizing Titanium CNC Machining.
Aerospace Actuator Pin:
An actuator pin in an aircraft control system might have a larger diameter for structural support, then step down to a smaller diameter for a bearing surface, and then step again to a threaded section for attachment. The integrity of these aerospace CNC turning components is non-negotiable, requiring rigorous quality control and the highest standards of CNC Turning Precision Manufacturing.
These examples highlight how step turning is not just a single operation but a foundational capability that enables the creation of highly functional and reliable components across a diverse range of high-stakes applications.
While traditional CNC turning allows for step turning, the true power, precision, and efficiency of this operation are unlocked through CNC (Computer Numerical Control) turning. Modern CNC turning services leverage sophisticated programming and advanced machine capabilities to push the boundaries of what's possible in precision machining CNC.
The transition from manual to CNC for step turning brings a host of significant benefits for CNC manufacturers and their clients:
Automation and High Efficiency: CNC machines can operate with minimal human intervention once programmed, enabling continuous production and significantly higher throughput. This is crucial for low volume CNC machining where repeatability across small batches is key, or for large-scale production runs of CNC turning parts.
Superior Precision and Repeatability: Computer-controlled tool paths and constant monitoring allow CNC machines to achieve much tighter tolerances and maintain consistent quality across thousands of identical parts. This level of accuracy is paramount for precision CNC machined parts used in demanding applications like Medical CNC Machining and Aerospace CNC Machining.
Complex Geometry Machining Capability: CNC allows for the seamless interpolation of linear and circular movements, enabling the creation of intricate stepped geometries, chamfers, radii, and even complex contours that would be extremely difficult or impossible to achieve manually. This versatility is a hallmark of custom CNC turning.
Flexible Manufacturing: Changing from one part design to another merely requires loading a new program. This flexibility makes CNC machines ideal for diverse production needs, from rapid CNC machining prototypes to varied batches of Automotive CNC Parts.
Reduced Human Error: Automating the machining process dramatically minimizes the chance of human error during measurement, tool changes, or manual feed operations, leading to higher quality and less scrap.
Effective CNC step turning relies on a clear understanding of G-code and M-code programming, which are the machine's language for executing operations.
G-Code and M-Code Introduction:
G-codes (Geometric Codes): These control the actual motion of the machine, such as rapid traverses (G00), linear interpolation (G01), circular interpolation (G02/G03 for clockwise/counter-clockwise arcs), and drilling cycles. For step turning, G01 is used extensively to define the axial and radial movements that form the steps.
M-codes (Miscellaneous Codes): These control machine functions that aren't directly related to motion, such as spindle on/off (M03/M05), coolant on/off (M08/M09), tool changes (M06), and program stop (M00/M30).
Common Instructions for Step Turning:
G00 X... Z...: Rapid traverse to a point, used for moving the tool quickly to a starting position or between cuts without machining.
G01 X... Z... F...: Linear interpolation (straight line cut) to a specific X and Z coordinate at a defined feed rate (F). This is the workhorse command for creating the straight cuts of diameters and shoulders.
G02/G03 X... Z... I... K... F... (or R...): Circular interpolation for arcs, used if the step design includes rounded corners or fillets.
Subprograms and Macro Programming:
For parts with repetitive stepped features, subprograms (or subroutines) can be used to write a block of code once and call it multiple times, simplifying the main program and reducing programming time.
Macro programming allows for more dynamic and intelligent programs where variables can be used, enabling a single program to machine a family of similar parts by simply changing a few input values. This greatly enhances the efficiency of CNC manufacturing China for diverse product lines.
Tool Path Planning:
Roughing Paths: These involve multiple passes with larger depths of cut, often using canned cycles (pre-programmed routines for roughing out shapes) to remove material efficiently.
Finishing Paths: A single, light pass is typically used to achieve the final dimensions and surface finish, following a precise contour.
Grooving/Shoulder Paths: Specific G-code sequences or specialized cycles are used to plunge the tool in radially to create the sharp, perpendicular shoulder of the step, followed by axial relief if necessary.
The complexity of modern CNC machining turning parts often necessitates the use of CAD (Computer-Aided Design) and CAM (Computer-Aided Manufacturing) software.
Role of CAD/CAM in Tool Path Generation:
Engineers design the precision machining CNC parts in CAD software.
This design is then imported into CAM software, which allows the programmer to define the raw material, choose tools from a library, and simulate the machining process.
The CAM software automatically generates the optimized G-code tool paths, considering clearances, feed rates, and speeds, greatly simplifying programming for complex geometries and reducing errors. This is invaluable for Custom Automotive CNC Parts and cnc machining aerospace applications.
Simulation and Collision Detection:
CAM software offers powerful simulation capabilities, allowing the programmer to visualize the entire machining process virtually.
This helps identify potential collisions between the tool, workpiece, fixture, or machine components before actual machining begins, preventing costly mistakes and downtime. It's a critical step in ensuring the safety and efficiency of any CNC Machining Company.
Table 6.1: Key CNC G-Codes and Their Functions in Step Turning
For engineers and product designers, understanding the capabilities and limitations of step turning is as crucial as the manufacturing process itself. Designing parts with precision CNC turning in mind can significantly reduce manufacturing costs, improve part quality, and ensure the final product functions as intended. These considerations are vital whether you're designing Custom CNC Machining parts, Aerospace CNC Machining components, or Medical CNC Machining instruments.
The way a stepped part is designed directly impacts its manufacturability, performance, and overall integrity.
Avoiding Sharp Internal Corners (Stress Concentrators):
Principle: A perfectly sharp 90-degree internal corner (re-entrant corner) on a step is a significant stress concentration point. This can lead to fatigue failure, especially in parts subjected to dynamic loads or vibrations, common in Automotive CNC Parts or CNC Machining for Robotics.
Recommendation: Wherever possible, incorporate a radius (fillet) or a chamfer at internal corners. Even a small radius drastically improves stress distribution. For example, instead of a perfectly sharp corner, a 0.5mm or 1mm radius can extend the part's life considerably.
Manufacturing Impact: From a manufacturing perspective, a sharp internal corner often requires a specialized cutting tool (like a precise grooving tool) and can lead to faster tool wear. A radius allows for the use of a standard turning insert with a nose radius, which can achieve a smoother finish and better tool life.
Step Height and Diameter Ratios:
Principle: The relative dimensions of consecutive steps impact the part's rigidity during machining and its structural integrity in use. Extremely thin walls or very deep, slender steps can lead to deflection during cutting (chatter) or excessive stress once in service.
Recommendation: Designers should aim for reasonable ratios between step heights and diameters to maintain part rigidity during machining. Consult with your CNC Machining Company or cnc precision machining company to understand their capabilities for machining slender features. For example, a shaft with a very long, small-diameter section followed by a large step might require additional support during machining (e.g., a steady rest) or a revised design.
Tolerances and Fits:
Principle: Defining appropriate tolerances for stepped features is critical for proper assembly and function. Overly tight tolerances increase CNC machining cost and can be unnecessary, while loose tolerances might lead to poor performance.
Recommendation: Clearly specify dimensional tolerances (e.g., diameter, length of step) and geometric tolerances (e.g., concentricity, perpendicularity of the shoulder face to the axis) based on the part's functional requirements. Consider standard fits (e.g., clearance fit, interference fit, transition fit) for mating components. For instance, a bearing seat would require a precise interference or transition fit, demanding precision machining CNC capabilities.
The material chosen for a step-turned part profoundly impacts both the design possibilities and the manufacturing process.
Machinability:
Impact: Different materials exhibit varying machinability. Aluminum CNC Machining and Brass CNC Machining are generally easier to machine, allowing for higher cutting speeds and larger depths of cut. Conversely, Titanium CNC Machining and CNC Turning Machining Stainless Steel are more challenging due to their hardness, toughness, and tendency to work-harden, requiring lower speeds, specific tooling, and more rigid setups.
Design Implication: For difficult-to-machine materials, designers might consider simplifying complex stepped geometries or increasing radii to ease manufacturing and reduce cnc machining cost.
Mechanical Properties (Strength, Hardness, Toughness):
Impact: The part's intended function dictates the required mechanical properties. A high-strength steel might be chosen for a heavily loaded shaft, while a lighter aluminum alloy might be selected for weight-sensitive applications like those in aerospace cnc machining.
Design Implication: The material's properties directly influence how much load a step can bear, how it reacts to thermal changes, and its resistance to wear. Designs should account for the material's inherent characteristics to prevent failure.
Beyond the machining itself, subsequent treatments can enhance the part's performance and should be factored into the design phase.
Surface Finishes:
Impact: Surfaces intended for sealing, bearing contact, or aesthetic reasons often require a very low surface roughness (e.g., Ra 0.8 µm or finer). The turning process itself can achieve good finishes, but sometimes, additional processes like grinding or polishing are needed.
Design Implication: Clearly specify required surface roughness (Ra, Rz, etc.) for each critical surface. This informs the manufacturer about the necessary finishing operations and potential additional costs.
Heat Treatment:
Impact: Processes like hardening, tempering, annealing, or case hardening (e.g., carburizing, nitriding) are used to alter the material's microstructure and properties (e.g., increase hardness, improve wear resistance, enhance toughness).
Design Implication: Heat treatment can cause slight dimensional changes or distortion. If a part requires very tight tolerances after heat treatment, designers should consider allowing for a final grinding or finishing operation after heat treatment to bring critical dimensions into spec. For example, precision CNC machined parts for gears often undergo case hardening, necessitating post-heat treat grinding of critical features.
By integrating these design considerations early in the product development cycle, designers can collaborate more effectively with CNC turning parts manufacturers and ensure that their components are not only functional but also efficiently and economically produced through CNC Turning Precision Manufacturing.
In precision CNC turning, achieving the desired dimensions and surface finishes is only half the battle. The other half involves rigorous quality control and inspection to ensure every CNC turning part meets the stringent specifications. This process is paramount, especially for critical components in industries like Medical parts machining and Aerospace CNC Machining, where failure is not an option.
The distinct steps and varying diameters of a step-turned part necessitate a comprehensive measurement strategy to verify its accuracy.
External and Internal Diameters:
Measurement: These are typically verified using precision tools such as micrometers, calipers, or more advanced instruments like optical comparators or vision systems for non-contact measurement. For high-volume or critical applications, automated gauges or in-process probes on the CNC turning machine itself can be used.
Length of Steps (Axial Dimensions):
Measurement: Depth micrometers, height gauges, or coordinate measuring machines (CMMs) are employed to verify the precise axial positions and lengths of each step and shoulder.
Roundness (Circularity):
Measurement: For features like bearing journals, roundness is critical. Specialized roundness measuring instruments or CMMs are used to detect deviations from a perfect circle.
Concentricity:
Measurement: This ensures that all stepped diameters share a common central axis. Concentricity gauges, runout indicators, or CMMs are used to measure the runout between different cylindrical sections.
Perpendicularity of Shoulder Faces:
Measurement: The 90-degree angle of the step's face relative to the part's axis is crucial for proper seating and assembly. Height gauges with dial indicators, angle plates, or CMMs can verify this critical geometric tolerance.
A range of tools, from manual to automated, are deployed to ensure the quality of precision CNC machined parts:
Calipers: Versatile for quick measurements of external, internal, and depth dimensions.
Micrometers: Offer higher precision than calipers, ideal for precise diameter measurements.
Depth Gauges: Used specifically for measuring the depths of steps or grooves.
Height Gauges: Used in conjunction with a surface plate to measure vertical dimensions, often for shoulder heights.
Coordinate Measuring Machines (CMMs): These are highly precise, automated machines that can measure complex geometries, including 3D coordinates, form tolerances (flatness, roundness), and positional tolerances (concentricity, perpendicularity) with exceptional accuracy. They are indispensable for verifying complex Custom CNC Machining parts and ensuring CNC Turning Precision Manufacturing.
Optical Comparators / Profile Projectors: Used to compare the profile of a part against an enlarged drawing or template, particularly useful for inspecting complex outlines, radii, and chamfers.
Roughness Testers: Specialized instruments (e.g., profilometers) that measure the microscopic variations on a surface to quantify its roughness (e.g., Ra, Rz values). This is vital for surfaces requiring specific finishes, such as those in Medical parts machining.
Beyond dimensional accuracy, the quality of a part's surface is often a critical requirement.
Roughness Testers (Profilometers): These devices trace a stylus across the surface, recording minute variations that are then analyzed to provide quantitative roughness parameters like Ra (arithmetical mean roughness) or Rz (maximum height of the profile).
Visual Inspection and Comparison Standards: While quantitative measurement is preferred, visual inspection using calibrated surface roughness comparison blocks can provide a quick qualitative assessment for less critical surfaces.
Even with the best processes, defects can occur. Identifying and understanding them is key to continuous improvement for any CNC Machining Company.
Burrs: Excess material left on edges.
Prevention: Optimize tool geometry, feed/speed, use of specific deburring tools or chamfering operations.
Tool Marks / Feed Marks: Visible lines on the surface.
Prevention: Reduce feed rate, use larger nose radius inserts, ensure proper tool condition, maintain machine rigidity.
Dimensional Oversize/Undersize: Part is larger or smaller than specified.
Prevention: Correct tool offsets, account for thermal expansion/contraction, ensure machine calibration, verify programming.
Surface Burn/Discoloration: Caused by excessive heat.
Prevention: Optimize cutting speed, ensure adequate coolant flow, use sharper tools.
Chatter Marks / Vibrations: Undulating patterns on the surface.
Prevention: Increase machine rigidity, use proper workholding, adjust cutting parameters, use dampening solutions (e.g., anti-vibration tool holders).
Taper/Out-of-Roundness: Part is not perfectly cylindrical or parallel.
Prevention: Proper machine alignment, minimal tool wear, correct tailstock alignment (for long shafts), rigid setup.
By implementing a robust quality control framework, from in-process checks to final inspection, CNC turning parts manufacturers can consistently deliver high-quality components that meet or exceed customer expectations, solidifying their reputation as reliable CNC precision machining company partners.
The field of CNC turning is constantly evolving, driven by advancements in automation, materials science, and digital technologies. Step turning, as a fundamental precision machining CNC operation, is directly impacted by these innovations, promising even greater efficiency, precision, and sustainability in the years to come.
The future of step turning is deeply intertwined with the broader trend of Industry 4.0, characterized by smarter, more connected manufacturing processes.
Intelligent Cutting Parameter Optimization:
Trend: Artificial intelligence (AI) and machine learning (ML) are increasingly being integrated into CNC machining systems. These intelligent algorithms can analyze vast amounts of data from past machining operations, tool wear, and part quality.
Impact: This allows the system to autonomously recommend and even dynamically adjust cutting speeds, feed rates, and depths of cut in real-time to optimize efficiency, maximize tool life, and ensure consistent surface finish, especially for complex custom CNC turning parts. This significantly reduces human intervention and optimizes CNC machining cost.
In-Process Monitoring and Adaptive Control:
Trend: Advanced sensors integrated into CNC machines can monitor cutting forces, vibrations, temperature, and even tool wear directly during the machining process.
Impact: This real-time data feeds back into the machine's control system, allowing for adaptive control. If a tool starts to wear or chatter is detected, the machine can automatically adjust parameters to prevent defects, ensuring the production of high-quality precision CNC machined parts without interruption.
Robotic Integration for Automated Loading/Unloading:
Trend: Collaborative robots (cobots) and industrial robots are becoming more common for automating tedious and repetitive tasks in CNC manufacturing China and elsewhere.
Impact: Robots can handle raw material loading, finished part unloading, and even tool changes, allowing CNC turning machines to run autonomously for extended periods, even lights-out. This enhances the overall efficiency of CNC Machining Company operations and is particularly beneficial for low volume CNC machining setups requiring rapid changeovers.
As industries demand lighter, stronger, and more durable components, the materials used in step turning continue to evolve, pushing the boundaries of machining capabilities.
Processing of Hard and Difficult-to-Machine Materials:
Trend: The increasing use of superalloys (e.g., Inconel), advanced ceramics, and reinforced composites in sectors like aerospace CNC machining and Titanium CNC Machining presents unique challenges for CNC turning machining.
Impact: This drives the development of new cutting tool materials (e.g., advanced ceramics, PCD, CBN) with enhanced hardness, wear resistance, and thermal stability, as well as specialized machine tools with higher rigidity and power. New coolant strategies, like cryogenic cooling, are also being explored.
Additive Manufacturing Integration:
Trend: While seemingly disparate, additive manufacturing (3D printing) and subtractive manufacturing (like CNC turning) are increasingly converging.
Impact: Complex part near-net shapes can be 3D printed from challenging materials, then precisely finished via CNC turning. This hybrid approach could revolutionize the production of highly intricate CNC turning parts that were previously impossible or too costly to machine entirely from solid stock.
The manufacturing industry is placing a growing emphasis on environmentally friendly practices, and step turning is no exception.
Dry Machining and Minimum Quantity Lubrication (MQL):
Trend: Reducing or eliminating traditional flood coolants, which can be costly to manage and dispose of.
Impact: Dry machining (no coolant) or MQL (using a very small amount of lubricant delivered as a mist) can significantly cut down on coolant consumption, waste treatment, and associated environmental impact. This requires specific tool coatings and machining parameters but offers considerable benefits in terms of cost and sustainability for Stainless Steel CNC Services and others.
Chip Recycling and Re-utilization:
Trend: Focusing on efficient chip collection, segregation, and recycling.
Impact: Proper chip management reduces waste and allows valuable materials like aluminum (from Aluminum CNC Machining) or brass (from Brass CNC Machining) to be recycled, supporting a circular economy and reducing raw material costs.
These trends collectively point towards a future where step turning continues to be a cornerstone of manufacturing, operating with unprecedented levels of intelligence, adaptability, and environmental responsibility, further solidifying the role of CNC Machining Company in global production.
From the intricate components of an aerospace engine to the precise parts within a medical device, step turning stands as an indispensable process in modern manufacturing. We've explored its fundamental definition, meticulously walked through its detailed process flow, dissected the critical machining parameters, weighed its advantages against its challenges, and highlighted its widespread applications. We also delved into the transformative power of CNC step turning and the crucial design and quality control considerations that ensure part integrity.
Step turning isn't just about removing material; it's about engineering precise interfaces, optimizing structural integrity, and enabling the seamless assembly of complex machinery. It's a testament to human ingenuity and technological advancement, constantly evolving to meet the demands of an increasingly sophisticated world.
Looking ahead, the integration of artificial intelligence, advanced robotics, and sustainable practices will continue to redefine the capabilities of CNC Turning Precision Manufacturing. As materials become more advanced and design requirements grow more stringent, step turning, bolstered by continuous innovation, will remain at the forefront of producing the precision CNC machined parts that drive global industries. Whether it's a critical component for Automotive CNC Parts or a life-saving implant in Medical CNC Machining, the precision and versatility of step turning will continue to shape our manufactured future.
