Moving directly from 3D printed concepts to steel tooling is a financial gamble that often results in costly design revisions. The gap between fragile prototypes and mass production requires a validation step. Vacuum casting rapid prototyping bridges this void by delivering production-grade urethane parts with the aesthetics and mechanical properties needed for functional testing, without the high capital investment of metal molds.
Every week, I see procurement managers hesitate. They have a 3D printed model that looks good but snaps under load, and a quote for an injection mold that costs $50,000. They need 50 parts for a field test, not 50,000. This is where the engineering reality of silicone tooling solves the business problem.
While additive manufacturing is unbeatable for concept modeling, relying on it for functional verification often leads to false negatives in testing data.
Standard SLA or SLS parts often lack the isotropic strength and surface finish required for end-use simulation. For B2B procurement, this means "vacuum casting rapid prototyping" is the necessary step to replicate the exact density, flexibility, and impact resistance of final production materials, ensuring your validation tests reflect reality.
In my experience at Kaiao Rapid Manufacturing, engineers often try to validate a snap-fit design using SLA prints. The resin is brittle, the snap breaks, and they redesign the part, adding unnecessary wall thickness.
Theoretical Basis: 3D printing builds in layers, creating inherent structural weaknesses (anisotropy). Vacuum casting uses a homogeneous mixture of Polyurethane (PU) resins, resulting in isotropic properties similar to injection molding.
Practical Impact: If you validate with a material that is weaker than your final production plastic, you are optimizing for the wrong variable. You might over-engineer a part that was actually fine, simply because the prototype method was flawed.
To understand the value, we must look past the buzzwords and understand the specific mechanics of the silicone molding process.
Vacuum casting utilizes a master model to create a silicone mold, into which PU resins are poured under a vacuum to eliminate air bubbles. This process captures the original master's texture and geometry perfectly, allowing for the creation of high-fidelity copies that mimic the look, feel, and performance of engineering thermoplastics like ABS, PC, or rubber.

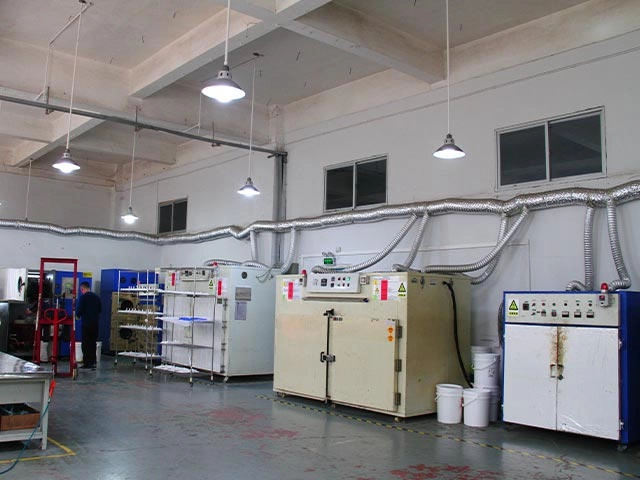

The magic happens in the vacuum chamber. By removing air, we ensure the resin flows into every micro-detail of the mold.
Master Model Creation: Usually high-resolution CNC or SLA.
Silicone Tooling: Liquid silicone is poured around the master. Once cured, it is cut open.
Casting: PU resin is injected into the void under vacuum.
Precision is usually the first question I get from designers accustomed to the tight variances of machined metal.
While not as precise as CNC machining, vacuum casting achieves tolerances suitable for most plastic assemblies. We typically hold a dimensional accuracy of ±0.2mm for positioning holes and ±0.4mm for mounting holes, which is sufficient for ensuring proper fit and function in pre-production runs of automotive interiors and handheld enclosures.
Controlling tolerance in vacuum casting is an art form involving shrinkage rates.
The Challenge: Both the silicone mold and the PU resin shrink during curing.
The Solution: At Kaiao, we scale the master model to compensate for these specific shrinkage rates.
Application Example:
Handheld Electronic Devices: We regularly produce housings where PCB standoffs must align perfectly. The ±0.2mm tolerance on locating features ensures the board drops in without stress.
Automotive Dashboards: For large parts (up to 2 meters), thermal expansion becomes a factor, but the flexibility of the silicone mold allows us to maintain overall geometric integrity better than large-scale 3D printing, which often warps.
One of the distinct advantages of this process is the ability to combine properties in a single component without expensive multi-shot tooling.
Vacuum casting allows for overmolding and insert molding, enabling engineers to combine soft and hard materials or metal inserts in one part. This capability is critical for prototyping "soft-touch" grips, transparent lenses (PMMA-like), or structural components requiring metal threads, delivering a functional prototype that is indistinguishable from the mass-produced version.
We often see designs requiring a rigid structural core with a soft, tactile grip.
Soft/Hard Overmolding: We can cast a rigid PU resin (simulating ABS) and then cast a soft elastomer PU (simulating TPE/Rubber) around it. This is standard for power tool handles or medical device grips.
Metal Inserts: To improve mechanical strength and durability, we place machined, stamped, or cast metal parts into the silicone mold before pouring. The resin bonds or mechanically locks to the metal.
Real-World Use: Threaded brass inserts for repeatable assembly/disassembly during product testing.
Procurement managers need to know where the graph lines cross between 3D printing, Vacuum Casting, and hard tooling.
The economic sweet spot for vacuum casting typically lies between 10 and 50 units. Because a single silicone mold lasts for roughly 10–20 shots, this method offers the lowest total cost per unit for small batches where 3D printing becomes too slow and expensive, but the $10k+ investment for steel molds is not yet justified.
Let's break down the math for a standard automotive interior trim part.
If you need 20 parts for a marketing photo shoot and functional testing, 3D printing 20 high-quality units takes too long and requires massive post-processing. Cutting a steel tool takes months. Vacuum casting delivers those 20 parts in under two weeks, finished and painted.
Theory is fine, but does it hold up on the road?
Vacuum cast parts are robust enough for real-world environmental testing, not just showroom display. We have successfully produced low-volume automotive components that passed 10,000km road tests, proving that PU resins can withstand the vibration, thermal cycling, and UV exposure required for final design verification.
A client required 15 sets of a new dashboard assembly for fleet testing.
The Requirement: The parts needed to look production-ready (texture and color) and survive a 10,000km endurance run.
The Execution: We used a high-temp resistant PU resin to simulate PC/ABS. We employed soft-tooling (silicone) to produce the large 1.5m panels.
The Result: The parts maintained dimensional stability and aesthetic quality throughout the test. This allowed the client to sign off on the expensive injection mold tooling with 100% confidence.
Transparent Parts: We also utilize this for clear components like headlamp lenses or light guides using clear PU resins that mimic PMMA, polished to optical clarity.
Making the right choice depends on your primary constraint: time, budget, or fidelity.
Choose vacuum casting when your priority is surface finish, material properties, and low-volume production (10-50 units). If you need tightest tolerances (±0.05mm), stick to CNC machining; if you need just one part in 24 hours to check shape, use 3D printing; but for a "bridge" to production that verifies both form and function, vacuum casting is the superior choice.
Before you send that RFQ, ask three questions:
Is cosmetic appearance critical? If yes, Vacuum Casting (excellent surface finish) or CNC (real material). 3D printing often shows layer lines.
Do I need rubber-like or overmolded parts? Vacuum casting is the clear winner here for prototypes.
Is the part massive? With our capacity to cast parts up to 2.0 m × 1.2 m × 1.0 m, vacuum casting handles large panels that are cost-prohibitive to CNC machine from a solid block.
Vacuum casting is not just a prototyping method; it is a risk mitigation strategy. By utilizing silicone molds and industrial-grade PU resins, you can simulate the physical reality of mass production without the financial commitment of hard tooling. Whether you need to run a 10,000km road test, validate a multi-material assembly, or simply get 20 market-ready samples into the hands of stakeholders, this technology bridges the gap effectively.
At Kaiao Rapid Manufacturing, we don't just pour resin; we engineer solutions. If you are navigating the transition from digital design to physical reality, let’s discuss how vacuum casting can accelerate your time to market.
