I. Introduction: Beyond Basic Machining – Why Precision Matters
Are you a product designer, engineer, or procurement manager struggling to achieve the complex geometries, tight tolerances, and superior surface finishes your innovative projects demand? In today's competitive manufacturing landscape, simply "getting parts made" isn't enough. You need precision, reliability, and a partner who can translate your most ambitious designs into tangible reality.
This is where CNC Machining Services become indispensable. While standard CNC milling can produce a wide array of parts, certain intricate features require a specialized approach. Enter angle milling – a sophisticated CNC technique that elevates machining capabilities, allowing for the creation of components with precise angled surfaces that are critical for optimal performance and flawless assembly. This guide will delve into what angle milling is, its transformative advantages, and why partnering with a CNC Machining Company proficient in this discipline can be your greatest asset in unlocking unparalleled design possibilities for your custom parts.
II. What is Angle Milling? A Technical Overview for Discerning Clients
Angle milling, sometimes referred to as angular milling, is a precision CNC machining process where the cutting tool or the workpiece is precisely oriented at a non-perpendicular angle to the surface being machined. Unlike conventional milling, which primarily focuses on orthogonal (90-degree) cuts, angle milling is designed to create intricate, non-parallel surfaces, chamfers, bevels, and specialized slots.
The ability to perform angle milling stems from several advanced CNC Milling Services techniques:
Specialized Angle Milling Cutters: These are purpose-built tools with their cutting edges ground at specific angles. Common types include:
Single-Angle Cutters: Used for creating a single angled surface, like a chamfer or a tapered slot.
Double-Angle Cutters: Designed for producing V-grooves or pointed ends with two angled surfaces.
Dovetail Cutters: Essential for machining dovetail slots, which are critical for interlocking components and strong mechanical joints.
Tapered End Mills: Used to create drafts or tapers on part features.
Tilting Machine Heads/Spindles: Many advanced CNC machines feature a spindle that can physically tilt relative to the workpiece. This allows a standard end mill to be angled, offering flexibility in achieving various angular cuts without needing specialized tooling for every angle.
Multi-Axis Machining (3+2 Axis & 5-Axis): This is where true angle milling mastery shines.
3+2 Axis Machining: The machine can position the workpiece (or spindle) in two rotational axes and then perform 3-axis cutting. This reduces the number of setups, saving time and improving accuracy, as the part doesn't need to be manually re-oriented as frequently.

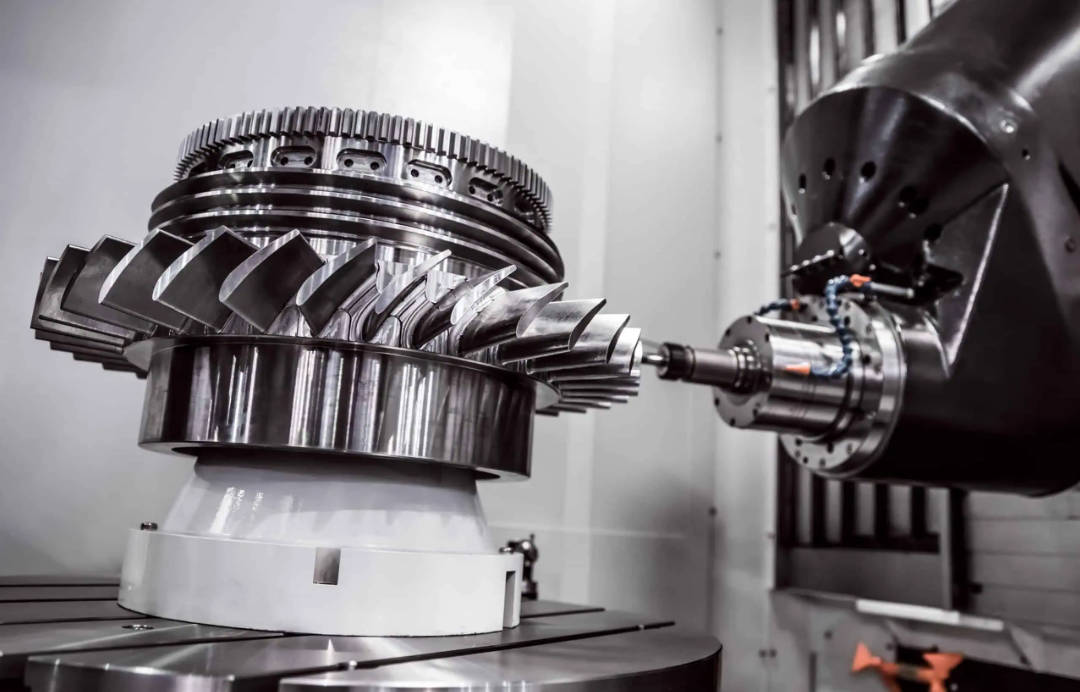

5-Axis Simultaneous Machining: Considered the pinnacle of angle milling capability, a 5-axis machine can move along X, Y, Z, and two rotational axes (A and B or C) simultaneously. This allows for the continuous machining of highly complex, contoured surfaces with varying angles in a single setup. This capability dramatically reduces machining time, eliminates re-fixturing errors, and improves surface finish.
Fixturing & Rotary Tables: For less complex angular requirements, or on machines without tilting spindles or multi-axis capabilities, specialized workholding fixtures or rotary tables can be used to present the workpiece at the desired angle to a standard cutting tool. While effective, these methods typically require more manual intervention and setup time.
The core distinction of angle milling is its capacity to produce features that deviate from standard perpendicular or parallel geometries. This opens up a vast realm of design possibilities that are simply unattainable with conventional machining.
For clients seeking Custom CNC Machining solutions, the integration of angle milling capabilities offers significant, tangible benefits that directly impact part performance, production efficiency, and overall project success.
Intricate Geometries: Angle milling empowers engineers to design components with complex features like precise chamfers for stress relief, interlocking bevels for secure assembly, specialized V-grooves for sealing or locating, and highly accurate dovetail slots for robust mechanical connections. It's the key to manufacturing parts that truly push the boundaries of conventional design.
Functional Design: Angled features are not merely aesthetic; they are often critical for a part's functionality. They can optimize fluid flow, provide specific mating surfaces, enable snap-fit assemblies, distribute stress more effectively in load-bearing components, or facilitate ergonomic handling.
Tolerance Control: Angle milling, particularly with multi-axis CNC machines, allows for the achievement of exceptionally tight angular and dimensional tolerances. This is crucial for parts that require perfect fit, form, and function within complex assemblies.
Reduced Secondary Operations: Because angle milling can produce high-quality surface finishes directly, it often minimizes or eliminates the need for time-consuming and costly secondary operations like manual deburring, grinding, or polishing. This streamlines the manufacturing process and reduces overall part cost.
Reduced Setups: One of the most significant cost benefits, especially with 5-axis angle milling, is the reduction in the number of times a workpiece needs to be re-fixtured or re-oriented. Fewer setups mean less manual handling, reduced potential for re-fixturing errors, and significantly faster overall machining times.
Optimized Material Removal: Advanced tooling paths in angle milling allow for efficient and precise material removal in challenging areas, minimizing waste and extending tool life.
Improved Part Integrity: Creating complex features in a single, continuous process often results in stronger, more integral parts compared to those manufactured through multiple, disjointed operations.
The versatility and precision of angle milling make it indispensable across a multitude of high-stakes industries. Here’s a glimpse into where this advanced capability makes a critical difference:
In essence, if your design calls for anything beyond flat surfaces or simple perpendicular holes, angle milling is likely the solution that will bring your vision to life with the required precision and integrity.
When your project demands the precision and complexity afforded by angle milling, selecting the right CNC Machining Company is paramount. Here are the key criteria to consider:
Equipment & Technology:
Inquire about their machine fleet: Do they possess multi-axis CNC machines (3+2 axis, 5-axis simultaneous)? The presence of 5-axis capability is a strong indicator of advanced angle milling expertise.
Specialized tooling: Do they invest in a wide range of angle milling cutters and specialized attachments?
Software capabilities: Do they use advanced CAM (Computer-Aided Manufacturing) software that can generate complex toolpaths for angular machining?
Experience & Expertise:
Track record: Look for a provider with a proven history of successfully producing parts with complex angular features for industries similar to yours.
Skilled machinists: Angle milling requires highly skilled programmers and operators who understand complex geometries, tool compensation, and machining strategies. Ask about their team's experience.
Quality Control & Inspection:
Verification methods: How do they verify angular accuracy and surface finish? Reputable companies use advanced inspection tools like Coordinate Measuring Machines (CMMs), optical comparators, laser scanners, and specialized angular gauges to ensure parts meet specifications.
Certification: Are they ISO certified or compliant with other relevant industry standards? This indicates a commitment to quality management.
Material Versatility:
Can they perform angle milling on the specific material your part requires? Different materials (e.g., aerospace alloys, medical-grade plastics, exotic metals) require different tooling, speeds, and feeds for optimal angle milling.
Design for Manufacturability (DFM) Support:
Collaborative approach: A top-tier Custom CNC Machining partner will offer DFM insights. This means they can review your design and provide recommendations to optimize it for more efficient and cost-effective angle milling, potentially saving you time and money while improving part quality.
Choosing a provider with robust angle milling capabilities means more than just a service; it's about gaining a manufacturing partner who can solve complex engineering challenges and deliver unparalleled precision.
In the world of high-precision manufacturing, angle milling stands as a testament to the continuous evolution of CNC Machining Services. It’s the critical capability that allows for the creation of intricate, functional, and aesthetically complex components that are simply beyond the reach of conventional machining.
For businesses and innovators who demand the highest standards of accuracy, efficiency, and design freedom, partnering with a CNC Machining Company that excels in angle milling is no longer a luxury – it’s a necessity. By leveraging advanced CNC Milling Services that include sophisticated angle milling techniques, you can unlock new possibilities for your custom parts, ensuring they meet the most rigorous performance requirements and differentiate your products in the market.
Don't let design limitations hold you back. Explore the potential of angle milling for your next project. Contact us today to discuss how our expertise can transform your vision into precisely manufactured reality.
