Rapid prototyping has revolutionized product development, enabling companies to iterate designs swiftly, validate functionality, and reduce time-to-market. Among the most versatile techniques, Vacuum Casting Process and Resin Casting are widely adopted for prototyping and low-volume production. However, their applications, costs, and outcomes differ significantly.
This article provides an in-depth comparison of these methods, focusing on technical specifications, material capabilities, and economic factors. Whether you’re evaluating Vacuum Casting Services for functional prototypes or exploring resin casting for visual models, this guide equips you with actionable insights to optimize your project outcomes.
The Vacuum Casting Process is a silicone molding technique that produces high-fidelity prototypes under vacuum conditions. It involves creating a silicone mold from a master pattern (typically 3D-printed or CNC-machined) and injecting polyurethane (PU) resins to replicate the original design. This method eliminates air bubbles, ensuring dimensional accuracy and smooth surface finishes.
Master Pattern Creation:
Materials: SLA (Stereolithography) resins, SLS (Selective Laser Sintering) nylon, or machined ABS.
Tolerance: ±0.1 mm for critical features.
Silicone Mold Fabrication:
Silicone Type: Platinum-cure silicone (tear-resistant, 30-50 Shore A hardness).
Curing Time: 4–8 hours at 40–60°C.
Material Degassing and Injection:
Vacuum Chamber Pressure: <1 mbar to remove air from liquid resin.
Injection Pressure: 0.5–1 bar for precise filling.
Post-Processing:
Trimming, sanding (up to 1200 grit), and painting (e.g., Pantone color matching).
Vacuum Casting Materials mimic commercial thermoplastics, offering tailored properties:
ABS-Like Resins: Ideal for impact-resistant housings (e.g., power tools).
Tensile Strength: 50–60 MPa.
Heat Deflection Temperature (HDT): 70–90°C.
PP-Like Resins: Flexible and fatigue-resistant (e.g., snap-fit closures).
Elongation at Break: 200–250%.
Transparent Resins: Optical clarity for lenses or light guides.
Light Transmission: 92% (comparable to PMMA).
High-Temperature Resins: Withstand 120–180°C (e.g., engine components).
Material Property | Vacuum Casting Resins | Traditional Resin Casting |
Impact Strength (kJ/m²) | 15–25 | 5–10 |
Surface Roughness (Ra) | 0.8–1.6 µm | 3.2–6.3 µm |
Mold Reusability | 20–50 cycles | 1–5 cycles |
Precision: Achieves ±0.15 mm tolerances, critical for mating parts like gears or connectors.
Scalability: Produce 20–50 units per mold, reducing per-part costs by 30–50% compared to 3D printing.
Aesthetic Versatility: Replicate textures (e.g., leather, brushed metal) and colors directly from CAD.
Functional Testing: Simulates end-use conditions (e.g., load-bearing, thermal resistance).
Automotive: Air vents, dashboard panels, and fluid-resistant connectors.
Medical: Biocompatible surgical instrument handles (ISO 10993-certified resins).
Consumer Electronics: Ergonomic prototypes for wearables and IoT devices.
Resin casting involves pouring liquid epoxy or polyurethane resins into open molds (silicone, plaster, or metal) without vacuum assistance. It’s favored for its simplicity but lacks the precision of the Vacuum Casting Process.
Material Limitations:
Epoxy Resins: Brittle, prone to cracking under stress.
Polyurethane Resins: Limited to Shore D 60–80 hardness.
Surface Defects: Air bubbles and uneven curing degrade aesthetics.
Low Mold Durability: Silicone molds degrade after 5–10 cycles due to manual demolding.

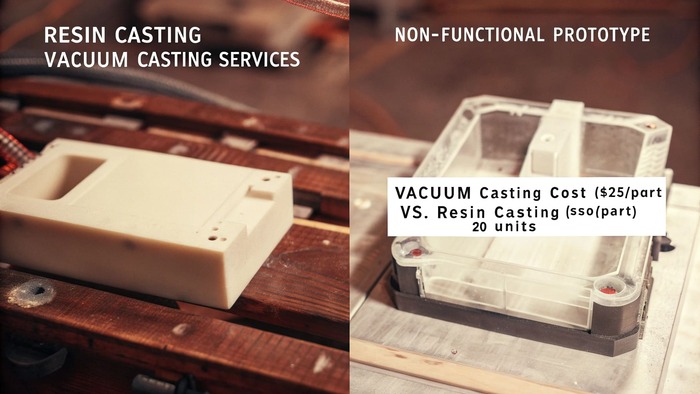

Factor | Vacuum Casting Cost | Resin Casting Cost |
Mold Cost (10 parts) | 500–500–1,200 | 100–100–300 |
Per-Part Cost | 25–25–120 | 40–40–200 |
Lead Time (10 parts) | 7–12 days | 2–5 days |
Post-Processing Time | 1–2 hours/part | 3–6 hours/part |
Mechanical Strength:
Vacuum-cast PU resins withstand cyclic loads (e.g., hinge mechanisms).
Resin-cast parts often fail during stress testing due to low elongation (<10%).
Thermal Stability:
Vacuum Casting Materials retain shape up to 180°C (e.g., under-hood automotive parts).
Standard resin-cast parts deform at 60–80°C.
Chemical Resistance:
Vacuum-cast parts resist oils, fuels, and cleaning agents.
Resin-cast parts degrade when exposed to solvents.
Vacuum Casting:
Supports walls as thin as 0.5 mm.
Accommodates undercuts and complex geometries (e.g., lattice structures).
Resin Casting:
Minimum wall thickness: 1.5 mm.
Limited to simple shapes without internal channels.
Upfront Costs:
Vacuum Casting Cost is higher due to silicone mold fabrication but becomes economical for batches >15 units.
Resin casting suits projects with budgets under $500.
Long-Term Value:
Vacuum-cast molds can be archived and reused for future batches.
Resin molds are disposable, increasing costs for repeat orders.
You need ≥10 functional prototypes for user trials or trade shows.
Material properties must match injection-molded plastics (e.g., UL 94 V-0 flame resistance).
Aesthetic quality is non-negotiable (e.g., consumer product launches).
Producing 1–5 non-functional models for internal reviews or photo shoots.
Testing basic form factors within 48 hours.
Budget constraints preclude tooling investments.
Phase 1 (Concept Validation) : Use resin casting to test ergonomics and assembly.
Phase 2 (Functional Testing) : Transition to Prototype Vacuum Casting for stress tests.
Phase 3 (Pre-Production) : Scale with vacuum casting or bridge to injection molding.
A: Vacuum Casting Process is ideal for 50–500 units, offering lower tooling costs (1,000.1,000vs.20,000+) and faster turnaround (10 days vs. 8 weeks). However, injection molding excels for volumes >1,000 units.
A: Yes. Multi-shot vacuum casting enables soft-touch grips (Shore A 30–50) over rigid frames (Shore D 70–80).
A: Both use thermoset resins, but Vacuum Casting Services generate less waste due to mold reusability. Some suppliers offer bio-based PU resins.
A: Combine multiple parts in a single mold (family molding) or use modular master patterns.
A European OEM used Vacuum Casting Materials to produce 30 blower motor housings. The parts matched ABS’s vibration damping and passed NVH (Noise, Vibration, Harshness) testing, avoiding $250K in injection molding costs.
A medtech startup leveraged Prototype Vacuum Casting to create 20 insulin pen prototypes with transparent reservoirs. The units withstood sterilization (autoclave at 121°C) and accelerated shelf-life testing.
A wearable tech company used resin casting for 5 concept models but switched to Vacuum Casting Services for 50 pre-production units. The vacuum-cast parts featured textured finishes and survived 1,000+ bend tests.
Vacuum Casting Process and resin casting serve distinct roles in rapid prototyping. The former excels in functional, high-quality outputs, while the latter prioritizes speed and affordability for visual models.
Audit Project Requirements: Define mechanical, aesthetic, and budgetary needs upfront.
Collaborate Early with Suppliers: Engage Vacuum Casting Services providers during the design phase to optimize geometries for molding.
Leverage Hybrid Approaches: Combine 3D printing, resin casting, and vacuum casting to balance cost and performance.
By aligning process capabilities with project goals, engineers and designers can mitigate risks, reduce costs, and accelerate innovation cycles effectively.
