A major risk in low-volume manufacturing is overestimating tooling longevity, which leads to dimensionally inaccurate parts and compromised surface finishes. On average, a silicone mold can produce between 15 and 25 high-quality polyurethane parts before degradation occurs. The exact silicone mold lifespan depends heavily on part geometry, the specific polyurethane casting resin used, and curing conditions.
Table of Contents
When engineering teams transition from a single 3D printed model to functional testing, calculating exact tooling capacity becomes a critical project management requirement. Determining how many parts a single tool can yield prevents budget overruns and unexpected delays during pilot production.

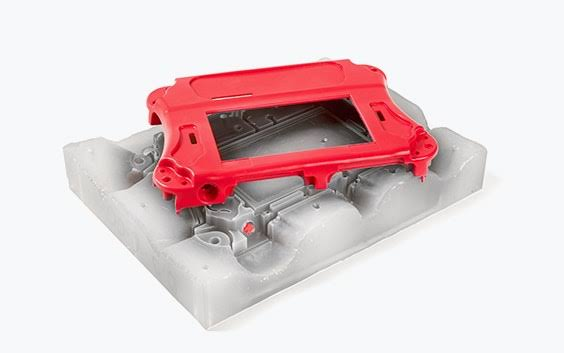

How many parts can a silicone mold produce? A standard vacuum casting silicone mold reliably yields 15 to 25 production-quality parts. This range fluctuates based on the chemical aggressiveness of the casting resin and the mechanical stress applied during the demolding process.
In rapid prototyping and bridge production, silicone tooling offers a highly cost-effective alternative to machining steel or aluminum molds. However, a silicone mold does not fail suddenly; it undergoes gradual degradation. With each subsequent urethane casting process cycle, the mold absorbs exothermic heat from the curing resin and chemical plasticizers. Eventually, this causes the silicone to lose its elasticity, leading to microscopic surface tearing, loss of high-gloss finishes, and slight dimensional shifting. For engineering validation where tight tolerances are mandatory, tracking this degradation curve is essential to ensure part consistency from the first cast to the last.
Assuming a fixed production quantity for every mold is a common engineering mistake. A mold casting a simple, flat enclosure will outlast a mold casting a complex internal gear with severe undercuts.
Vacuum casting mold life is directly influenced by part complexity (such as undercuts and sharp corners), the chemical formulation of the polyurethane resin, wall thickness, and the required surface finish fidelity.
The mechanical act of removing a cured polyurethane part from a flexible silicone mold introduces significant stress. Parts with complex geometries, deep draws, or severe undercuts require the operator to bend and stretch the silicone tooling to extract the component. Over multiple cycles, this repeated stretching causes micro-tears in the silicone. Sharp corners and intricate internal features act as stress concentrators, accelerating mechanical fatigue.
Polyurethane casting is a highly exothermic chemical reaction. When the A and B components of the resin are mixed under a vacuum, they generate heat as they cure. Resins that cure at higher temperatures or require aggressive chemical catalysts will bake the surrounding silicone, causing it to become brittle and lose its elongation properties faster than standard resins.
If a product requires a flawless, high-gloss surface finish (e.g., a transparent PC-like lens), the effective silicone mold durability is significantly shorter. The mold's surface degrades on a microscopic level with every cast. While the tool might remain dimensionally accurate for 25 parts, the pristine high-gloss finish may begin to dull after just 10 to 12 casts. If the parts require painting or textured finishes later, the mold can be pushed to its maximum mechanical lifespan.
Choosing the most cost-effective solution for low-volume production requires evaluating not just the unit cost, but the upfront tooling investment and the expected lifecycle of that tool.
Silicone tooling is the superior choice for batches of 10 to 100 parts due to negligible tooling costs and rapid lead times, whereas injection molding becomes necessary when production volumes exceed the physical lifespan of silicone molds.
To effectively plan a manufacturing strategy, purchasing teams and engineers must understand the exact threshold where transitioning from silicone tooling to hard tooling makes financial and technical sense.
Tooling Type | Manufacturing Process | Expected Tool Lifespan | Typical Tooling Cost | Lead Time | Best For... |
Silicone Mold | Vacuum Casting | 15 - 25 parts | Very Low | 3 - 7 Days | Functional prototypes, MVP launches, bridge production. |
Soft Aluminum | Rapid Injection Molding | 100 - 10,000 parts | Moderate | 2 - 4 Weeks | Pilot production, market testing, low-volume manufacturing. |
P20 Steel Tool | Mass Injection Molding | 50,000 - 100,000 parts | High | 4 - 8 Weeks | High-volume consumer products, continuous manufacturing. |
Hardened Steel (H13) | Mass Injection Molding | 500,000+ parts | Very High | 6 - 12 Weeks | Long-term mass production, high-wear glass-filled plastics. |
When a project requires 50 identical polyurethane parts, a professional vacuum casting service will simply create two or three duplicate silicone molds from the same master pattern to meet the required project quantity simultaneously, preserving tight lead times.
The urethane casting process is highly versatile, supporting a vast array of engineering materials that replicate the appearance and mechanical functionality of injection-molded thermoplastics. However, the choice of resin directly impacts how long the silicone tooling will last.
Polyurethane casting supports a wide range of simulations including ABS-like, PC-like, PP-like, and rubber-like resins; however, optically clear and high-heat resistant resins degrade silicone tooling much faster than standard materials.
Standard ABS-like resins are the workhorses of low-volume manufacturing. They exhibit a moderate exothermic curing profile and do not chemically bond aggressively to the silicone. A mold casting ABS-like or flexible PP-like (Polypropylene) components will easily achieve the upper end of the lifespan spectrum (20 to 25 parts).
Conversely, manufacturing transparent PC-like (Polycarbonate) parts presents unique challenges. Clear resins are highly sensitive to microscopic mold degradation. Furthermore, clear polyurethane formulations are often chemically aggressive and require specific curing conditions. A silicone mold used for optically clear parts may only yield 10 to 15 pristine components before the mold surface begins to cloud, subsequently transferring that cloudiness to the cast parts.
Many engineers assume that mold lifespan is entirely out of their hands once the CAD file is submitted. In reality, expert recommendations on mold design and part optimization can drastically extend the life of the tool.
By applying rigorous DFM (Design for Manufacturability) optimization, incorporating proper draft angles, and strategically designing parting lines, engineers can maximize silicone mold durability and reduce overall project costs.
A professional manufacturing partner will not simply cast a flawed CAD file. Engineering support is vital. By introducing slight draft angles (even though flexible silicone is more forgiving of zero-draft than steel molds), the mechanical force required during demolding is significantly reduced. This prevents the operator from tearing the mold when extracting deep features.
The placement of the parting line—where the two halves of the silicone mold separate—dictates how the part is extracted. A poorly placed parting line will force the silicone to stretch unnaturally, leading to premature tool failure. Additionally, strict adherence to optimal mold curing conditions (baking the silicone master at the exact temperature for the correct duration) ensures the mold reaches its maximum tensile strength and tear resistance before the first urethane casting process begins.
Because silicone molds can accurately reproduce fine surface textures, complex details, and high-fidelity cosmetic finishes, they are deployed across virtually all hardware sectors.
Vacuum casting services are ideal for producing functional prototypes for product design verification, low-volume plastic housings before investing in steel tooling, and MVP parts for early market validation.
In the medical sector, customized components for handheld diagnostic devices often require strict ergonomic and functional validation before clinical trials. Vacuum casting provides 20 to 30 highly accurate medical device enclosures using ABS-like materials for doctors to evaluate in the field. Similarly, consumer electronics startups rely on silicone tooling to manufacture low-volume plastic housings that look and feel identical to a mass-produced item, enabling them to launch MVP (Minimum Viable Product) units quickly while minimizing upfront tooling investment.
Automotive engineering demands parts that can withstand harsh environments. Vacuum casting produces PC-like headlamp lenses and rubber-like elastomeric gaskets for functional testing. Industrial equipment manufacturers utilize the process to create pilot production parts for trade shows and customer demonstrations, allowing them to secure early orders before committing capital to expensive mass-production molds.
Product development is not static. A project may require 20 units for internal engineering validation today, but 500 units for regional market testing next quarter.
When expected order volumes exceed the 25-part capacity of a single silicone mold, manufacturers scale production by either fabricating multiple concurrent silicone molds or seamlessly transitioning the project to rapid injection molding.
Determining whether one silicone mold can support the project is the first step in production planning. If an engineering team requires 100 parts, a specialized vacuum casting supplier will CNC machine a highly precise master pattern, and then cast four separate silicone molds from that single master. This allows for parallel production, maintaining consistent dimensions and surface finishes throughout the entire pilot production run without a single tool degrading past its useful life.
However, a capable manufacturing partner must also support long-term growth. When product demand grows from 100 units to 5,000 units, the manufacturing strategy must evolve. The data and design optimizations gathered during the urethane casting process are utilized to cut soft aluminum or P20 steel tools, ensuring a smooth, de-risked transition into low-volume injection molding and eventually high-volume mass production.
Determining how many parts a silicone mold can produce is fundamental to planning an efficient low-volume manufacturing strategy. While the industry average is 15 to 25 parts per mold, this lifespan is heavily dictated by the part's geometric complexity, the chemical aggressiveness of the polyurethane resin, and the required fidelity of the cosmetic finish. By understanding these limitations and applying rigorous DFM principles, engineers can maximize silicone mold durability and extract the highest quality parts from their tooling. When project volumes exceed the capacity of a single mold, partnering with an agile manufacturer ensures you can scale seamlessly through multi-mold vacuum casting and eventually into rapid injection molding.
At KAIAO RAPID MANUFACTURING CO., LIMITED, our engineering teams provide expert material selection and DFM optimization to ensure your silicone tooling delivers flawless, production-quality parts. We support your entire product journey, from the first functional prototype to low-volume production and beyond.
Contact KAIAO today for a technical consultation, DFM review, or a rapid quotation for your next vacuum casting and low-volume manufacturing project.
How many parts can a silicone mold produce on average?
A typical silicone mold used in vacuum casting can produce between 15 and 25 parts. This quantity can decrease to 10-15 parts for complex geometries or chemically aggressive clear resins, and occasionally reach up to 30 parts for very simple, flat designs.
Why does silicone mold durability decrease over time?
Silicone mold durability decreases due to a combination of mechanical fatigue (stretching and pulling the mold during part extraction) and chemical degradation (absorbing the exothermic heat and chemical plasticizers from the curing polyurethane casting resin).
What is the best vacuum casting resin to extend mold life?
Standard ABS-like and flexible PP-like or rubber-like polyurethane resins are generally the least aggressive on silicone tooling. They cure with lower exothermic heat and do not require the pristine microscopic mold surfaces that highly transparent, optically clear resins demand.
Can vacuum casting replace injection molding for low-volume manufacturing?
Yes, for quantities ranging from 10 to 100 parts. Vacuum casting provides production-quality cosmetic finishes and mechanical functionality without the high capital investment and long lead times associated with cutting aluminum or steel injection molds.
What happens if I need 100 parts, but a silicone mold only yields 25?
A professional vacuum casting service will create a single, high-precision CNC master pattern and use it to cast four separate silicone molds. These multiple molds are then used concurrently to cast the 100 polyurethane parts, maintaining speed and consistent quality.
How does part geometry affect the urethane casting process?
Complex part geometries with severe undercuts, thin walls, and deep draws require the operator to apply more mechanical force to demold the part. This excessive stretching accelerates micro-tearing in the silicone, thereby reducing the overall lifespan of the mold.
