Some parts need to look, feel, and perform like production units—but only in dozens or hundreds, not thousands. That is exactly where vacuum casting earns its place: one master pattern becomes many polyurethane copies with production-grade surface and material options.
Table of Contents
Vacuum casting (also called urethane or silicone-mold casting) is a two-stage indirect tooling method rather than direct metal machining.
The workflow starts with a high-precision master pattern of your exact 3D geometry, typically built by high-resolution SLA 3D printing or CNC machining. At KAIAO, master patterns are prepared on in-house CNC centers holding tolerances down to ±0.01 mm.
Once the master is finished, polished, and suspended in a casting box, liquid silicone is poured around it and thermally cured. After it solidifies, technicians cut the mold along parting lines and remove the master, leaving a flexible negative cavity. Two-part PU resins are then mixed, colored, and poured into the silicone cavity inside a vacuum chamber; the vacuum extracts air bubbles so the resin fills every detail and rib before final curing.
Understanding vacuum casting's physical boundaries helps teams design parts that match process capabilities.

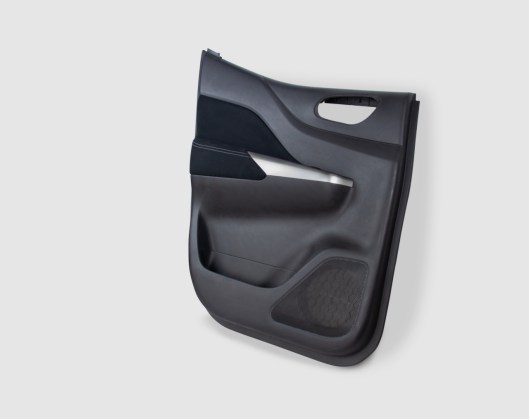

At KAIAO, vacuum casting runs on 4 dedicated FEELING-brand machines, accommodating large-format components up to 2000 × 1200 × 1000 mm with repeatable accuracy around ±0.1 mm.
Technical Parameter | Vacuum Casting (Urethane Casting) | Injection Molding (Bridge Tooling) |
Typical Tolerances | ±0.1 mm | ±0.05 mm to ±0.03 mm |
Maximum Build Envelope | Up to 2000 x 1200 x 1000 mm | Dependent on press tonnage and mold size |
Primary Material Family | Thermoset polyurethane (PU) resins | True engineering thermoplastics (ABS, PC, Nylon) |
Tooling Material | RTV silicone rubber | Aluminum or pre-hardened P20 steel |

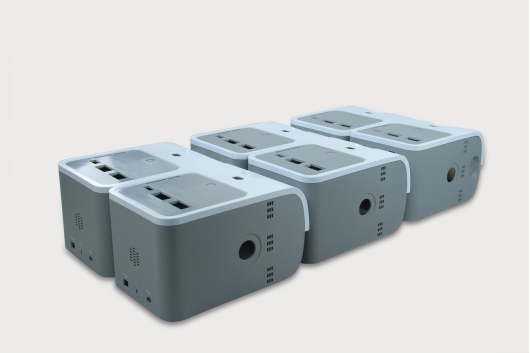

Because vacuum casting uses liquid thermoset polymers rather than melted thermoplastic pellets, suppliers can blend resins to replicate specific physical properties:
· Rigid ABS and Polypropylene Simulants: Mimic the stiffness, impact resistance, and tensile strength of production thermoplastics.
· Elastomeric and Rubber Resins: Provide flexible Shore A durometers from soft gaskets to durable overmolded grips.
· Optically Clear Polyurethanes: Deliver transparent light guides, lenses, and viewports with minimal yellowing after polishing or clear coating.
· High-Temperature and Flame-Retardant Resins: Satisfy specialized thermal or safety specs for industrial enclosures.
The most critical operational distinction between vacuum casting and injection molding is how batch volume impacts your tooling longevity.
Silicone is a flexible elastomer. As PU is poured and cured inside the cavity repeatedly, chemical exposure and thermal cycling degrade it. A standard silicone mold yields 20 to 500 parts depending on geometry, sharp internal edges, and resin aggressiveness.
Above 500 units, vacuum casting needs a new silicone mold from the master (or several molds from duplicate masters). For higher volumes, switching to injection molding with aluminum or P20 bridge tools is necessary. See our guide on low volume injection molding cost to see how steel-tool amortization changes your per-part budgeting as volume scales.
When evaluating small-batch options, engineers must also weigh vacuum casting against subtractive milling and reactive molding.
· Vacuum Casting vs CNC Machining: While low volume CNC machining cuts parts from solid wrought blocks with zero tooling, it struggles with complex internal undercuts, soft-rubber overmolding, or thin-walled organic enclosures. Vacuum casting replicates cosmetic textures and soft elastomeric grips efficiently without multi-axis fixturing.
· Vacuum Casting vs Reaction Injection Molding (RIM): For large, thick-walled housings, vacuum molds can distort if parts exceed rigidity limits. For massive medical diagnostic carts or agricultural panels, reaction injection molding (RIM) gives superior structural integrity using low-pressure metal tooling.
Financial planning for vacuum casting requires balancing low upfront NRE against moderate per-part labor.
· Upfront NRE Investment: Vacuum casting needs no metal cutting, mold bases, or heat treatment. Initial setup is limited to machining or 3D-printing the master and pouring the silicone mold, making it far cheaper than injection molding for a few dozen verification units.
· Per-Part Labor and Cycle Time: Injection molding automates cycles to seconds per part. Vacuum casting is semi-manual—operators hand-mix resin, pour into silicone molds in vacuum chambers, trim gating, and inspect parts individually—so once quantities reach the thousands, injection molding's unit economics win.
For low-volume vacuum casting, use this decision checklist to confirm the process fits your current project phase:
1. Evaluate Your Batch Size: If you need strictly 20 to 500 units, this method avoids the multi-week lead times and high capital cost of metal tooling.
2. Assess Design Stability: If your team will revise bosses, wall thicknesses, or ports next month from feedback, casting lets you 3D-print a new master and pour a fresh silicone mold in days.
3. Verify Material and Thermal Requirements: If regulatory testing demands exact injection-molded thermoplastics with specific UL ratings, injection molding is mandatory. If you need functional prototypes, pilot units, or marketing samples simulating ABS, rubber, or clear acrylic, vacuum casting is ideal.
4. Inspect Cosmetic and Transparency Needs: For clear optical lenses or textured housings where sink and knit lines must be avoided, vacuum casting delivers exceptional surface fidelity straight from the master.
A successful vacuum casting run starts with proper master preparation: account for resin shrinkage, include draft angles for easy extraction, and avoid trapped pockets that block clean mold separation.
Call to Action (CTA) Ready to evaluate your small-batch requirements? Send your 3D-printed or CNC master pattern to KAIAO for a vacuum-casting quote and DFM review; we'll recommend resin, mold layout, and how many pours your master supports. Operating under ISO 9001:2015 certification with 4 FEELING vacuum-casting machines, 21 in-house CNC centers (±0.01 mm), Hexagon CMM (±0.025 mm) and FARO arm (±0.005 mm) inspection, 12 standard finishes, and 4 paint booths with 50+ finishing technicians, KAIAO delivers fully finished, inspected parts in 1 to 3 weeks with no MOQ. |
A single silicone mold typically produces between 20 and 500 parts, depending on the complexity of the geometry, the presence of sharp internal corners, and the chemical abrasiveness of the polyurethane resin. Once a silicone mold reaches the end of its lifespan, additional parts can be produced by casting a new silicone mold from the original master pattern.
No, vacuum casting uses thermoset polyurethane (PU) resins that are mixed and poured as liquids into silicone molds, whereas injection molding uses melted thermoplastic pellets injected into metal tools under high pressure. However, advanced polyurethane formulations are engineered to closely simulate the mechanical strength, rigidity, impact resistance, or flexibility of engineering thermoplastics like ABS, PC, and TPE.
Vacuum-cast parts achieve typical dimensional accuracies around ±0.1 mm, which is well-suited for aesthetic enclosures, functional brackets, and pilot assemblies. For applications requiring ultra-tight mechanical fits or bearing tolerances, low-volume CNC machining holds tighter tolerances down to ±0.01 mm.
Vacuum casting typically delivers finished parts in 1 to 3 weeks. The timeline depends primarily on the time required to machine or 3D-print the master pattern, polish its cosmetic surfaces, pour and cure the silicone mold, and execute secondary finishing like painting or texturing.
Yes, vacuum casting can produce high-clarity clear plastic components (such as light pipes, lenses, and transparent covers) using specialized optical polyurethane resins combined with expert post-processing, hand polishing, and clear coating to eliminate surface haze.
As volumes grow beyond pilot runs, transition smoothly by machining an aluminum or P20 bridge mold from your proven 3D CAD. Because the master already validated form and fit, moving to injection molding locks in lower per-part pricing and high-volume thermoplastics.
