Low Volume CNC Machining: When Should You Use It (and What Does It Cost)?

When a part exists only as a CAD file and you need it in metal or engineering plastic next week, buying a mold is the last thing you want. Low volume CNC machining turns the model directly into finished components—no tooling NRE, and tolerances prototype processes cannot reach.

1. The Role of CNC Machining in Low-Volume Hardware Strategies

CNC milling and turning are subtractive: they remove material from solid blocks of metal or engineering plastic along programmed toolpaths. Within an integrated supply chain, low volume CNC serves two distinct functions:

· Initial Pilot and Bridge Production: When your design is still evolving or annual demand sits below a few hundred units, machining bypasses the multi-thousand-dollar tooling investments injection molding requires—so you get functional parts immediately from production-grade materials.

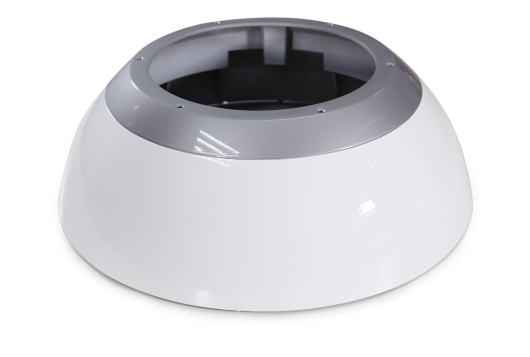

· Hybrid Multi-Process Assemblies: Complex B2B hardware—diagnostic medical carts, industrial automation systems—frequently pairs CNC-machined aluminum frames and bearing mounts with molded plastic housings.

Because CNC programs update digitally in minutes, teams iterate CAD between batch releases without scrapping steel molds—the hallmark flexibility of low volume machining. As volumes climb into the thousands, though, flat per-part milling costs eventually make mold-based production far more economical.

2. 3-, 4-, and 5-Axis CNC Capabilities for Complex Geometries

Not all machining centers are equal. Modern low volume manufacturing relies on multi-axis milling to cut setups and machine complex geometries in a single operation.

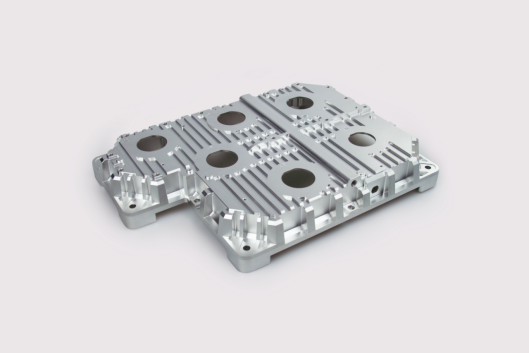

At KAIAO, production runs draw on 21 in-house CNC centers with FANUC and Mitsubishi controllers, 3-, 4-, and 5-axis capability, spindle speeds up to 24,000 rpm, and tolerances down to ±0.01 mm across workpieces up to 1400 × 700 × 600 mm. In particular, 5-axis CNC lets a single setup produce contoured, multi-sided parts that would otherwise need multiple fixtures and manual re-clamping.

Before shipment, machined components are verified on Hexagon CMM (±0.025 mm) and FARO laser arms (±0.005 mm) under ISO 9001:2015.

3. Understanding CNC Machining Cost Drivers Without Tooling NRE

Unlike injection molding, where upfront mold NRE dominates the invoice, CNC invoices are driven by operational time and programming labor. Every estimate breaks down into four primary variables:

· Programming and Setup Time (CAM): The hours to import your 3D STEP file, set zero work-coordinates, select tools, and generate collision-free toolpaths. Multi-sided 5-axis parts raise programming complexity.

· Material Removal Rate (MRR) and Spindle Time: Harder metals (titanium, stainless) need slower feeds and shallower cuts than soft aluminum or plastics, lengthening spindle time; deep pockets add further cycle time.

· Workholding and Fixturing Complexity: Custom soft jaws or multi-position tombstone fixtures that expose multiple faces add preparation time to the first batch.

· Secondary Finishing and Surface Prep: Raw parts show tool marks, so buyers often need bead blasting, conversion coatings, anodizing, or painting for final cosmetic or corrosion-resistant standards.

4. Material Versatility: Wrought Metals and Engineering Plastics

CNC's greatest advantage is material authenticity: parts are cut from solid wrought blocks or extruded stock, retaining full isotropic strength and thermal characteristics—unlike casting or rapid-prototyping resins that only simulate them.

· Wrought Metals: Aluminum (such as 6061-T6 and 7075-T6 for lightweight structural rigidity), Stainless Steel (304 and 316 for corrosion resistance), Brass (for electrical connectors and bushings), and Titanium (for high-strength, low-weight aerospace or medical requirements).

· Engineering Plastics: Acetal / Delrin (POM for low friction and dimensional stability), PEEK (for high-temperature and chemical resistance), Polycarbonate (PC for impact-resistant transparent windows), ABS, and Nylon (PA66).

When deciding whether to machine an engineering plastic or switch to molding, see our guide on low volume injection molding cost to compare material use and batch-scale limits.

5. CNC Machining vs Injection Molding: The Economic Crossover Point

Hardware founders often ask: At what quantity does CNC stop making financial sense and injection molding take over?

For plastic components, CNC is ideal from 1 to roughly 200–500 units. Because every part is milled individually from a solid block, unit price stays constant whether you order 10 or 500.

Past several hundred units, recurring spindle time and material waste make machining uneconomical; a bridge mold then pays off fast, as per-part cycles drop to seconds and raw pellets replace expensive stock. For volume-tier strategy, see low volume vs mass production; for elastomeric or cosmetic enclosures without hard tooling, compare vacuum casting vs injection molding. The CNC-vs-injection decision ultimately comes down to batch size and material, not intrinsic superiority.

6. Engineering DFM Rules to Optimize Machining Time and Expense

Applying practical DFM principles to your 3D CAD before requesting a quote significantly lowers machining costs:

· Avoid Sharp Internal Corners: Rotary end mills leave a rounded radius in internal 90° corners, so forcing a sharp corner needs tiny fragile cutters at ultra-slow feeds. Generous radii (or dog-bone reliefs) let machinists use larger, stiffer tools.

· Limit Deep Cavity Pockets: Deep narrow pockets need long slender end mills that chatter, forcing shallow passes. Keep pocket depth under four to six times the tool diameter.

· Standardize Thread and Hole Sizes: Use standard tap sizes, not custom pitches, and avoid excessively deep tapped holes that risk tap breakage in costly titanium or stainless billets.

· Design Uniform Wall Thicknesses in Plastics: When machining prototype housings, avoid abrupt thick-boss-to-thin-wall transitions that cause warping during stress relief.

7. What to Verify Before Placing a CNC Order

Before placing a CNC order, confirm your supplier runs the full chain under one roof. When machining, inspection, and finishing are split across shops, tolerance stack-ups and handoff delays creep in. KAIAO keeps every step in-house in Shenzhen under ISO 9001:2015—21 CNC centers, 12 standard finishes, 4 paint booths—so a quoted tolerance survives to the finished part.

Frequently Asked Questions

What is the typical lead time for low volume CNC machining?

Low volume CNC machining typically delivers finished parts in 1 to 3 weeks, depending on part geometry, material availability, and secondary surface finishing requirements. Because CNC machining requires zero tooling fabrication or mold curing time, production can begin immediately after CAD programming and material sourcing are complete.

When should I choose CNC machining over 3D printing for low-volume parts?

You should choose CNC machining over 3D printing whenever your application requires isotropic material strength, tight dimensional tolerances (±0.01 mm), genuine metal properties, or high-end cosmetic surface finishes. While 3D printing is excellent for rapid conceptual iteration, CNC-machined components provide true engineering performance without layer lines or anisotropic weakness.

How does 5-axis CNC machining differ from 3-axis milling?

Standard 3-axis milling moves the cutting tool along the X, Y, and Z linear axes, requiring the operator to manually reposition or re-fixture the part to machine different sides. A 5-axis CNC machining center adds two rotational axes, allowing the cutting tool or workpiece to tilt and rotate continuously so complex multi-sided geometries, deep undercuts, and contoured contours can be machined in a single setup.

Is there a minimum order quantity (MOQ) for low volume CNC machining?

No, professional low-volume CNC services support true on-demand manufacturing with no MOQ, allowing you to order a single prototype unit or small production batches of tens to hundreds of parts without financial penalties.

Why is CNC machining more expensive than injection molding for large production runs?

CNC machining is a subtractive process that mills parts out of solid blocks individually, meaning material costs and machine spindle hours scale linearly with every part produced. Injection molding incurs an upfront mold creation fee, but once the mold is mounted, per-part cycle times drop to seconds and raw resin pellets cost significantly less than pre-extruded metal or plastic stock.

What quality control inspections are standard in low volume CNC machining?

Reputable ISO 9001:2015 certified CNC shops utilize high-precision metrology equipment—such as Hexagon CMM systems and FARO laser inspection arms—to perform First Article Inspection (FAI), in-process dimension verification, and lot material certification on critical features before parts are approved for packaging and shipment.
