Low Volume Injection Molding: How Much Does It Cost (and When Is It Worth It)?

Most teams still equate injection molding with six-figure tooling and million-unit runs, so under ten thousand parts they default to machining or 3D printing and surrender margin. Low volume injection molding breaks that assumption with simplified aluminum or P20 tooling instead of hardened steel.

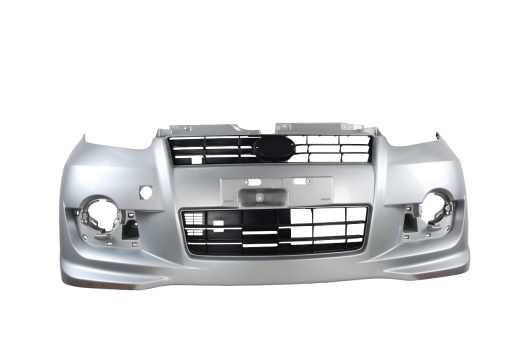

1. The True Cost Structure of Low Volume Injection Molding

Within a broader low volume manufacturing strategy, injection molding balances upfront tooling against low per-part fees. To evaluate quotes accurately, separate one-time setup from recurring batch charges.

Every low volume molding cost worksheet consists of six distinct cost buckets:

· Non-Recurring Engineering (NRE) and Tooling Fee: The upfront cost to design the mold, program CNC and EDM toolpaths, mill core/cavity inserts, and assemble the ejector system.

· Raw Thermoplastic Resin Cost: Part weight plus runner and sprue waste, multiplied by pellet price and any custom color masterbatch.

· Press Setup and Machine Cycle Time: Labor to mount the mold, purge the barrel, dial in parameters, and run the machine per hour.

· Secondary Post-Processing and Finishing: Gate trimming, ultrasonic welding, heat-stake inserts, pad printing, or EMI shielding after ejection.

· Quality Control and Metrology: FAI reporting, CMM programming, in-process checks, and material lot certification.

· Packaging and Assembly: Protective trays to prevent transit scuffing, kitting with mating hardware, and sub-assembly labor.

Prototype injection molding fits early pilot runs needing certified thermoplastic properties for clinical, thermal, or drop testing; mass-production multi-cavity molding suits frozen designs with locked multi-year demand.

2. Tooling Tiers Compared: Soft Molds vs Aluminum vs Pre-Hardened Steel

The largest variable in bridge tooling cost is the mold base architecture and insert metal. Low volume molding avoids fully hardened steel by using materials that machine faster and need no post-machining heat treatment.

2.1 Aluminum Bridge Molds vs P20 Pre-Hardened Steel

At KAIAO, low volume bridge tooling typically relies on either high-strength aluminum alloys or pre-hardened P20 steel, depending on your resin specification and total quantity forecast.

Aluminum machines rapidly and dissipates heat faster than steel, shortening cooling time, but wears quickly with abrasive glass- or carbon-filled polymers. P20 takes slightly longer to mill and polish (raising NRE a bit) yet handles higher clamping pressure, resists flash over tens of thousands of cycles, and supports complex sliders without galling. For mold longevity details, see our comparison of bridge tooling vs production tooling.

2.2 MUD Bases vs Standalone Mold Bases

To lower upfront injection mold cost, suppliers distinguish standalone molds from Master Unit Die (MUD) systems:

· MUD / Quick-Change Insert Systems: Your supplier machines only your custom core/cavity blocks and mounts them in a shared master frame that stays in the press. You pay only for the custom inserts and ejector pins.

· Standalone Dedicated Mold Bases: Needed when parts exceed MUD footprints, need multi-direction hydraulic side-actions, or dedicated cooling. Upfront cost is higher, but repeat-batch setup is more predictable.

3. Six Engineering Factors That Drive Injection Mold Cost Up or Down

Two equal-weight plastic parts can draw very different tooling quotes, priced on spindle hours, EDM burn time, and assembly complexity.

3.1 Part Envelope and Projected Surface Area

A large projected surface area perpendicular to mold opening catches more cavity pressure when plastic is injected. Higher pressure needs a larger-tonnage press and a thicker, heavier mold base to avoid flex and flash, raising material cost and hourly rates.

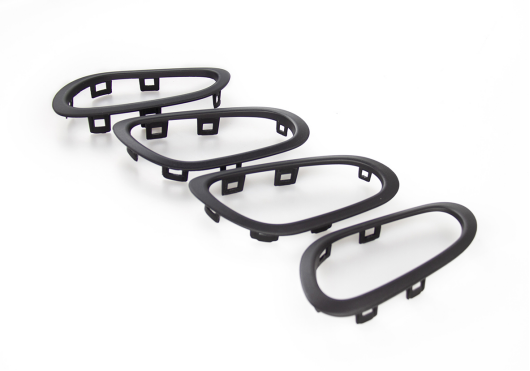

3.2 Undercuts, Side-Actions, and Hand-Loaded Inserts

Simple "open-and-shut" parts that eject straight from a two-plate mold are cheapest to tool. When a model includes side-wall snaps, perpendicular ports, or recessed features that trap the part, the toolmaker must build mechanisms to clear the undercut before ejection:

· Automated Mechanical Sliders and Lifters: Angled pins drive a sliding steel block outward as the mold opens. This increases upfront tooling cost but keeps per-part cycle times fast.

· Hand-Loaded Loose Inserts (Pick-Outs): A small removable metal block forms the undercut and ejects with the plastic part. The press operator manually removes the metal insert from the finished part and places it back into the mold for the next cycle. Hand-loaded inserts cut upfront bridge tooling cost significantly, though they slow down cycle times and raise per-part labor charges slightly.

3.3 Surface Finish and SPI / VDI Texture Standards

Machining the cavity is step one; polishing or texturing it drives major labor. A high-gloss optical finish (SPI A-1/A-2) needs hours of hand-polishing. Leaving internal non-cosmetic surfaces with a milled or matte EDM finish saves substantial labor. If you need a texture to hide sink marks, specify VDI 3400 or Mold-Tech etching early for accurate quoting.

3.4 Rib Depth and EDM Machining Requirements

CNC end mills can't cut deep narrow slots or sharp internal corners in steel or aluminum because small tools deflect and snap. When a housing has deep thin ribs or sharp bosses, the toolmaker burns that feature with a copper or graphite electrode via sinker EDM, adding electrode cost and machine hours to NRE.

3.5 Cavity Count and Family Mold Layouts

For smaller batches, a single-cavity mold minimizes upfront spend. If your product has two or three small mating parts in the same resin and color — a lid, base, and battery door — a family mold puts all cavities in one base. You pay more for the larger base but get a complete set every shot.

3.6 Tolerance Tightness and Shrinkage Compensation

Unlike metals, thermoplastics shrink as they cool, and rates vary with flow direction, wall thickness, and fiber orientation. Standard tolerances need simple tool pathing. Tight tolerances force the toolmaker to build "steel-safe," run T1 samples, measure shrinkage on a CMM, and re-machine inserts to dial in dimensions.

4. How Resin Selection Impacts Tooling Wear and Per-Part Pricing

Procurement teams often fixate on per-kilogram pellet price, overlooking how polymer chemistry changes mold construction and cycle times.

· Commodity and Standard Engineering Resins (ABS, PC, PC/ABS, PP, PE): Unfilled polymers flow smoothly at moderate temperatures, run fast in aluminum or soft steel tools, and wear cavities minimally over thousands of shots.

· Abrasive Glass-Filled or Carbon-Filled Resins (PA66-GF30, PBT-GF): Chopped fibers abrade the cavity like sandpaper, especially at narrow gates. Glass-filled nylon forces an upgrade to P20 or hardened gate inserts, raising tooling cost to prevent erosion.

· Corrosive or Flame-Retardant Polymers (PVC, FR ABS/PC, POM): Some FR additives and acetal off-gas acid at high melt temperatures. Standard steel rusts and pits unless the mold uses corrosion-resistant stainless or plated surfaces and more frequent maintenance.

· High-Temperature Specialty Polymers (PEEK, PEI / Ultem, PPSU): These need high barrel temperatures and special mold heating. Beyond expensive resin — where purging wastes material — longer thermal stabilization raises per-part cost.

5. Calculating Break-Even Volume: When Is Bridge Molding Worth It?

Before paying for a mold, compare total landed cost of low volume plastic parts across technologies. For under a few thousand units, the main alternatives are CNC machining and vacuum casting.

5.1 How to Run the Break-Even Formula

To find your exact crossover volume between a zero-tooling process like low volume CNC machining and bridge injection molding, use the standard break-even equation:

Break-Even Quantity = (Injection Mold NRE Cost) / (CNC Unit Price − Injection Molded Unit Price)

Operationally, this plays out across three volume stages:

Below the Break-Even Threshold (Early Prototypes & Pilot Builds): For a few dozen parts with weekly geometry changes, CNC or vacuum casting wins by avoiding mold NRE entirely.

At the Crossover Zone (Hundreds of Units): Comparing vacuum casting to bridge molding across hundreds of parts, remember silicone molds degrade after limited pours. Factoring replacement molds plus slower manual pouring, an aluminum or P20 bridge mold often pays off earlier than expected.

Scaling Beyond Initial Runs (Thousands to 100,000+ Units): Once the bridge tool is paid in batch one, reorders only incur a modest setup fee and very low per-part rate, letting startups scale without jumping into high-risk mass production. For the broader view, review low volume vs mass production.

5.2 Non-Financial Triggers That Force Injection Molding Early

Even if math favors CNC or vacuum casting for a 200-piece batch, engineering constraints often demand prototype injection molding:

· Regulatory and Safety Testing: UL flammability, FDA biocompatibility, and automotive crash/drop tests usually require parts molded in the exact final resin with representative skin orientation and knit lines.

· Complex Thin-Wall Snap Fits: Deep living hinges, snap hooks, and thin-ribbed enclosures either shatter when machined from stock or creep when cast in thermoset polyurethanes.

6. Design and Procurement Tactics to Cut Low Volume Molding Cost

Before submitting your RFQ, cut both upfront NRE and per-part cycle costs by applying practical DFM rules to your 3D CAD:

· Convert Side Undercuts into Pass-Through Shutoffs: Extend a slot through the part bottom so core steel reaches cavity steel directly, eliminating the side-action.

· Core Out Thick Sections and Maintain Uniform Walls: Thick bosses and solid blocks act as heat sinks, forcing longer cooling. Coring reduces resin weight and cooling time.

· Plan Iterative Features as "Steel-Safe": Size uncertain pins or ribs smaller for T1. Removing metal later to enlarge a feature is cheap milling; adding metal needs welding and re-machining.

· Design Symmetric Mating Halves ("Clamshells"): Identical top/bottom shells with interlocking snaps mean buying one single-cavity mold instead of two.

· Specify Manual Gate Trimming or Sub-Gates Strategically: Hot runners cut runner waste but add cost to low-volume molds. A cold runner with edge or submarine gates (shearing on ejection) keeps tooling simple and economical.

7. Reading a Molding Quote Before You Commit

When comparing supplier quotes, the bottom-line tooling number can hide lifecycle charges. Before ordering, verify five details:

Tool Steel and Base Architecture: Does the quote state cavity material (aluminum or P20) and whether it uses a shared MUD insert or standalone base?

Undercut Mechanism Breakdown: Are undercuts handled by mechanical sliders or manual pick-outs, and is that labor in the unit price?

Minimum Order Quantity (MOQ) and Press Setup Fees: For quarterly batches, confirm any separate press setup fee for small releases.

Mold Lifespan and Maintenance Ownership: Clarify shot rating, storage between orders, and whether routine cleaning/maintenance is included free.

Pre-Production DFM Analysis: Ensure the supplier delivers a DFM report (parting lines, gate locations, ejector pins, wall heat maps, draft) before cutting steel.

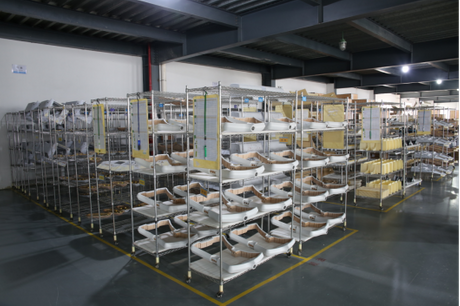

At KAIAO, low volume bridge-tooling injection molding is supported end to end under one roof in Shenzhen. Our 21 in-house CNC machining centers (3/4/5-axis, up to 24,000 rpm spindle, ±0.01 mm positioning accuracy, FANUC and Mitsubishi controllers) cut aluminum and P20 bridge mold cavities directly to net dimensions, while Hexagon CMM (±0.025 mm) and FARO laser arms (±0.005 mm) validate every batch. We offer 12 standard surface finishes plus 4 paint booths running PPG, DuPont, and AkzoNobel coatings with 50+ finishing technicians, are ISO 9001:2015 certified, and provide 24-hour quoting with a full DFM review, no MOQ, and 1 to 3 week lead times.

Frequently Asked Questions

What is the minimum order quantity (MOQ) for low volume injection molding?

Low volume injection molding has no strict technical minimum; batches routinely start at a few hundred parts for pilot or bridge runs. Small batches amortize setup and purging across fewer units, but the process scales seamlessly from hundreds to 100,000+ on the same bridge tool.

Why do low volume injection mold quotes vary so widely between suppliers?

Quotes vary mainly because suppliers assume different mold architecture, steel grade, and undercut handling. One may quote a bare aluminum insert with manual pick-outs; another a standalone P20 base with automated sliders and hand polishing. Ask for an itemized breakdown of cavity material, insert type, and slider mechanisms to compare fairly.

Does aluminum tooling produce the same part quality as steel production tooling?

Yes — a properly engineered and maintained aluminum bridge mold produces parts with the same accuracy, finish, and properties as a steel mold, since both inject identical resin under heat and pressure. The difference is longevity: steel withstands higher clamp force and abrasive glass-filled resins over longer runs.

Who owns the bridge mold in low volume injection molding?

A dedicated standalone mold base means your company owns the complete tool. With a lower-cost MUD or quick-change insert, you own only the custom core/cavity inserts while the supplier owns the universal master frame. Confirm insert compatibility and ownership in the RFQ before tooling.

How long does it take to build a low volume injection mold compared to mass production tooling?

Low volume bridge molds build faster than multi-cavity mass tools because they use single-cavity layouts, standardized bases, and pre-hardened P20 or aluminum that need no off-site heat treatment or grinding. Teams get T1 samples in a fraction of traditional hard-tooling time.

Can we use insert molding or overmolding in low volume production?

Yes. Insert molding (plastic around brass bushings, studs, or contacts) and two-shot overmolding (soft TPE/TPU on rigid substrate) are common in low volume. Operators or simple fixtures load inserts or substrates between cycles, avoiding the capital cost of rotary two-shot presses.
