Bridge Tooling vs Production Tooling: Which Should You Choose?

Tooling is one of the most under-discussed decisions in a hardware launch. Order hardened production tooling too early and you freeze an unvalidated design; wait too long and you miss your launch window. Bridge tooling is the deliberate middle step that ships real molded parts while that debate stays open.

Bridge tooling injection molding uses aluminum or pre-hardened P20 molds to deliver real injection-molded parts in 1 to 3 weeks while you validate demand or wait for mass-production tooling. This guide covers the differences between prototype, bridge, and production tooling, the traps where bridge molds backfire, and a checklist for mold ownership and scale-up timing.

1. The Three Tooling Phases: Prototype, Bridge, and Production Molds

Within a structured low volume manufacturing roadmap, molds are not one-size-fits-all. Toolmakers engineer them across three tiers—prototype, bridge, and production—each with different metallurgy, cooling, and automation.

Understanding each tier prevents over-engineering an early tool or under-specifying a commercial mold:

· Prototype Tooling (Soft / Rapid Tooling): Built for early validation (EVT) and functional material testing. Prototype molds use unhardened aluminum inserts in universal master frames with manual pick-outs and minimal cooling. Priority is speed to T1 and easy metal removal for rapid CAD changes.

· Bridge Tooling: Engineered to carry your product from late validation (DVT/PVT) through early commercial release across 100 to 100,000+ parts. Bridge tools use high-strength aluminum or pre-hardened P20 with dedicated cooling, automated ejection, and tighter shutoffs. They bridge the gap while mass-production molds are built—or serve as the final tool for specialized B2B products.

· Production Tooling (Hard Tooling): Built for multi-year, high-volume manufacturing. Production molds use premium tool steels (H13 or S136) with vacuum heat treatment. They feature multi-cavity layouts, hot runners, conformal cooling, hydraulic core pulls, and hardened wear plates for continuous automated runs.

Prototype tooling fits small batches in final resin to verify snaps or compliance; bridge tooling suits shipping commercial units on a 1 to 3 week lead time before committing to multi-cavity hard steel.

2. Aluminum Mold vs Steel Mold: Engineering and Speed Trade-Offs

When buyers debate an aluminum mold vs steel mold, the discussion often reduces to lifespan. In practice, metallurgy changes how fast the tool is machined, how heat moves through the cavity, and how easily geometry can be modified after T1.

2.1 Why Pre-Hardened P20 and Aluminum Cut Lead Times to 1–3 Weeks

Hardened production tooling needs a metallurgical workflow that can't be rushed: rough-machine annealed steel, send it out for heat treatment and quenching, then return it for slow precision hard-milling and sinker EDM before hand polishing.

Bridge tooling bypasses heat-treating entirely. High-strength aluminum and pre-hardened P20 arrive at final working hardness. At KAIAO's Shenzhen facility, engineers cut bridge cavities to net dimensions across 21 in-house 3/4/5-axis CNC centers (up to 24,000 rpm, ±0.01 mm accuracy). Removing external heat treatment and distortion grinding compresses lead times to 1 to 3 weeks.

2.2 Thermal Conductivity, Cycle Time, and Surface Finish

Metallurgy also dictates what happens inside the press each cycle:

· Thermal Transfer in Aluminum: Aluminum conducts heat far faster than steel. Uniform dissipation reduces hot spots, helping minimize warpage and shorten cooling on thick-walled enclosures.

· Parting Line Integrity in P20 Steel: Aluminum's lower yield strength makes parting lines and shutoff edges vulnerable to peening under high clamping. P20 provides stronger edge retention, preventing flash over tens of thousands of cycles.

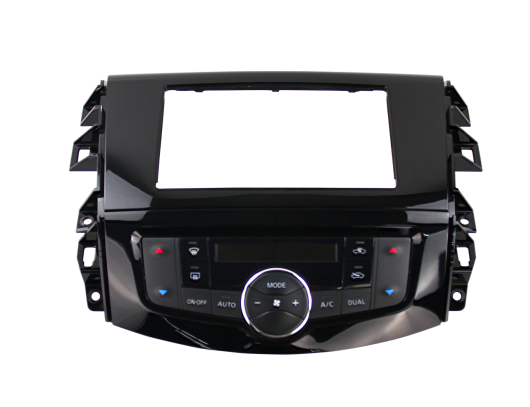

· Cosmetic Polishing and Painting: Both P20 and quality aluminum bridge molds accept standard SPI polishes and VDI textures. When enclosures need color matching, EMI shielding, or soft-touch coatings, KAIAO supports bridge runs with 12 standard finishes and 4 paint booths (PPG, DuPont, AkzoNobel) staffed by 50+ technicians.

For how these tiers translate into NRE versus per-part cost, see our breakdown of low volume injection molding cost.

3. Four Scenarios Where Bridge Tooling Injection Molding Wins

Investing in rapid tooling buys time, protects cash flow, or reduces engineering risk.

3.1 Protecting Launch Dates While Mass Production Tooling Is Underway

Multi-cavity hardened production molds with hot runners and complex cams take months to engineer, machine, heat-treat, and qualify. If you've signed a delivery contract or your launch is tied to a trade show, waiting for hard tooling means missing your window. A single-cavity P20 or aluminum bridge mold built in 1 to 3 weeks lets you ship commercial hardware while the production tool is built and debugged in parallel.

3.2 Navigating High Post-Launch Design Revision Risk

However thorough your FEA and 3D-printed prototyping, the first thousand units in real customers' hands frequently reveal needed changes — a PCB layout shifts from chip shortages, a snap latch feels stiff in cold weather, or a grip needs tweaking.

Modifying an eight-cavity hardened H13 mold means reworking eight identical cavities via EDM, multiplying cost and downtime. Modifying a single-cavity aluminum or P20 bridge tool takes days on an in-house CNC mill, letting you iterate across early batches with no MOQ.

3.3 Passing Mandatory Regulatory Certification (UL, FDA, IP Ratings)

Many B2B products can't legally ship or enter trials using 3D-printed or urethane-cast parts. UL (flame retardancy), medical, and automotive reviewers require test samples molded in the exact resin under true injection pressures. Prototype tooling and bridge molds produce parts with authentic crystal structure, knit lines, and skin density, locking in certifications months before mass production.

3.4 Serving High-Mix, Low-Volume B2B Markets Permanently

Not every product is a consumer wearable selling millions. If you make industrial robotics, telecom enclosures, agricultural sensors, or lab diagnostics with lifetime demand of 100 to 100,000+ parts, hardened multi-cavity tooling rarely amortizes. In these markets, a P20 bridge mold is the permanent, right-sized asset.

4. Three Scenarios Where Bridge Tooling Becomes a Procurement Trap

While bridge tooling solves scheduling and capital hurdles, treating it as a universal shortcut backfires. Watch three traps where a standard bridge tool is the wrong choice.

4.1 Trap 1: Running High-Glass-Filled or Abrasive Resins in Soft Aluminum

When a structural housing or bracket needs 30–50% glass-filled nylon (PA66-GF), carbon-fiber PEEK, or mineral-filled PBT, the fibers act like abrasives as plastic shoots through narrow gates and across core pins.

If a buyer pushes an aluminum mold for a high-glass-filled part to save NRE, the fibers quickly wash out the gate land, round sharp features, and cause drift after a short run.

· The Engineering Fix: Skip aluminum with abrasive fillers. Step to a pre-hardened P20 bridge mold with replaceable hardened gate inserts, or go straight to hardened steel if volumes are high.

4.2 Trap 2: "Permanent Bridging" When Volume Forecasts Clearly Justify Hard Tooling

Sometimes procurement picks a single-cavity bridge tool just to keep current-quarter capex low, even though the design is frozen and POs already demand high monthly volumes.

This is the "permanent bridging" trap. A single-cavity cold-runner bridge mold runs longer cycles and yields one part per shot, so higher per-part price erodes mold savings. Worse, running a soft tool past its shot life causes flash, downtime, and bottlenecks.

· The Engineering Fix: Run a strict total-landed-cost calculation across 12–18 months of committed demand before choosing a single-cavity bridge tool over a multi-cavity mold. For more on balancing NRE against unit price, read reduce low volume manufacturing costs.

4.3 Trap 3: Unclear Mold Ownership, Proprietary Frames, and Locked CAD Data

A common contract-manufacturing dispute: a buyer wants to move a bridge mold to a mass-production facility, only to find they don't own a standalone mold. Many rapid-molding vendors cut costs by machining bare inserts that fit only their proprietary master frames (MUD bases). Those inserts won't bolt into another press without a new base and ejector assembly.

If the vendor won't release the final 3D mold files (shrinkage allowances, draft adjustments, steel-safe grooms from T1/T2), your production toolmaker must start over and repeat the same debugging loop.

5. Mold Ownership, Insert Portability, and Data Rights Checklist

To protect supply-chain flexibility, treat your bridge tooling program as a data-gathering phase for the future production tool. Before signing the PO, verify the five items below:

Clarify Standalone Base vs Shared Frame Ownership: Confirm in writing whether your quote covers a complete standalone base (owned 100% and shippable anywhere) or custom inserts in the supplier's master frame. Both are valid if terms are transparent.

Require Full 3D Mold CAD and DFM Documentation: Stipulate that the tooling fee includes final 3D mold files (STEP/Parasolid) and 2D drawings—every post-T1 modification—so your future toolmaker can replicate proven gate sizes, runner balances, and venting.

Mandate Repeatable Metrology Reports (CMM & FAI): A bridge mold is only useful if its output is documented. At KAIAO, every ISO 9001:2015 project is validated with in-house Hexagon CMM (±0.025 mm) and FARO laser arms (±0.005 mm). Complete FAI data proves exactly how the resin shrank in the cavity.

Document the Exact Molding Process Window: Require the validated parameter sheet—barrel melt temperatures, injection velocity, pack-and-hold pressures, cooling times, and mold water temperatures.

Define Preventative Maintenance and Storage Terms: Confirm how the tool is cleaned, rust-proofed, and stored between batches, and how long inactive storage is guaranteed.

6. Transition Roadmap: When and How to Release the Production Mold

If your product is scaling toward mass production, timing the bridge-to-hard handoff is critical. Release too early and you pay twice for ECOs; too late and your bridge mold is overwhelmed by rising demand.

Follow this four-step operational sequence to transition smoothly:

Use Bridge Tooling T1/T2 Runs to Lock Critical Dimensions: Run initial bridge batches, inspect critical mating features via CMM, and apply steel-safe adjustments until fit and cosmetic quality are signed off.

Wait for Field Validation and Regulatory Sign-Off: Hold off cutting hardened multi-cavity steel until early deployments confirm ergonomics and labs approve your molded units.

Pull the Trigger on Production Tooling at the Lead-Time Buffer: Calculate the lead time to build and qualify the multi-cavity tool, then compare it against your rising sales curve and the remaining shot capacity of your bridge mold. Release the production PO while your bridge tool still covers the build and qualification window.

Transfer Proven Shrinkage and Gate Data to the Production Tool: Feed CMM shrinkage, gate vestige observations, and cooling lessons from your single-cavity bridge tool into the multi-cavity design. This prevents repeating T1 adjustments on hardened steel.

Frequently Asked Questions

What is the main difference between bridge tooling and prototype tooling?

Prototype tooling produces a few functional test parts as fast as possible, often with manual inserts and simplified cooling that slow cycles. Bridge tooling uses durable aluminum or P20 with dedicated cooling and automated ejection to deliver commercial batches from 100 to 100,000+ units while mass molds are built.

Can a P20 bridge mold serve as our permanent production tool?

Yes. For many B2B products—medical diagnostic enclosures, industrial sensors, commercial robotics—a pre-hardened P20 mold is the permanent tool for the product's life. P20 resists wear over tens of thousands of cycles and is easy to maintain, so companies with lifetime volume in the 100 to 100,000+ range rarely need hardened multi-cavity steel.

Why does hardened production tooling take so much longer to build than bridge tooling?

Hardened production tooling takes longer because steel must be rough-machined, sent out for vacuum heat treatment, then finish-machined with slow hard-milling and EDM to remove distortion. Bridge tooling uses aluminum or P20 that is CNC-machined directly to net dimensions in-house without external heat-treating, compressing lead times to 1 to 3 weeks.

Do lessons learned from a single-cavity bridge tool apply to a multi-cavity production mold?

Yes. A single-cavity bridge mold first de-risks your multi-cavity tool. By measuring thermal shrinkage on a CMM, verifying draft release, and testing gate locations on the bridge cavity, toolmakers feed verified dimensions straight into the multi-cavity layout, slashing rework during qualification.

How do I avoid getting locked into a supplier with bridge tooling?

To avoid lock-in, specify upfront a standalone mold base (shippable to any standard press) over custom inserts in a vendor's proprietary frame. Also ensure the purchase agreement includes ownership of 3D mold CAD files and CMM reports so any future toolmaker can use your validated data.

Can KAIAO handle secondary painting and assembly on bridge-molded parts?

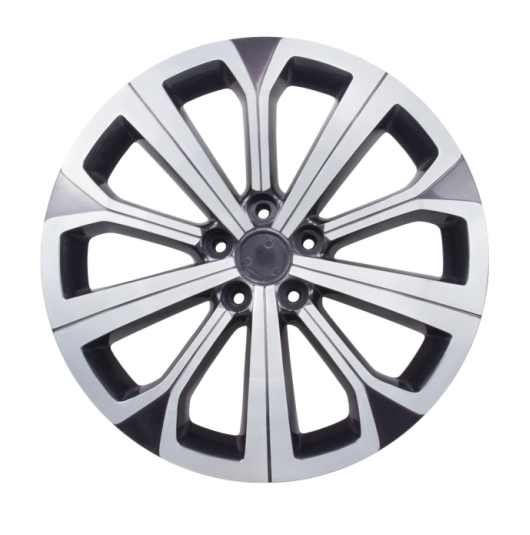

Yes. Keeping bridge molding, CNC machining, and finishing under one roof eliminates handoff delays. KAIAO supports bridge-molded parts with 12 standard finishes and 4 paint booths (PPG, DuPont, AkzoNobel) run by 50+ technicians, shipping finished, inspected sub-assemblies in 1 to 3 weeks with no MOQ.
