Large parts are where conventional molding breaks the budget: a two-meter enclosure needs a massive press and a hardened steel tool costing six figures, justifiable only past thousands of units. Reaction injection molding (RIM) sidesteps that by molding big, light, complex polyurethane structures at low pressure for a fraction of the tooling cost.
Table of Contents

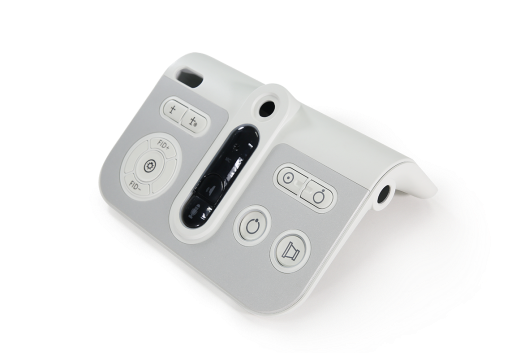

Unlike standard injection molding, which melts thermoplastic pellets and forces them into a steel tool under massive hydraulic tonnage, RIM—sometimes called large-format polyurethane molding—is a reactive liquid process.
The RIM process operates through precise chemical metering:
· Two-Component Liquid Stream: Two liquid reactive polymer components—a polyol blend and an isocyanate—are held in separate temperature-controlled tanks.
· High-Pressure Impinging Mix Head: Just before injection, the two liquids are forced through a high-pressure mix head where turbulent impingement blends them instantly, no mechanical agitators needed.
· Low-Pressure Mold Filling: The mixed stream flows into a closed aluminum or epoxy-resin mold under low injection pressure.
· Exothermic Chemical Curing: Inside the heated mold, rapid polymerization occurs; the liquid expands slightly as it fills complex cavities, curing into a rigid or semi-flexible polyurethane part.
RIM's cost-efficiency comes from internal mold pressure. Traditional injection molding needs clamping pressures up to several thousand tons to counter molten thermoplastic injection force; building a mold to withstand that demands thick tool steel and heavy hydraulic presses.
Because RIM runs at much lower cavity pressures, tooling can be made from high-strength aluminum, cast aluminum, or epoxy composites instead of hardened steel. This removes the need for high-tonnage presses and complex hydraulic gate shutoffs, cutting mold tooling costs 50% to 80% versus high-pressure tools. When internal features need changing, soft-metal bridge tooling lets engineers update geometry without scrapping massive steel blocks.

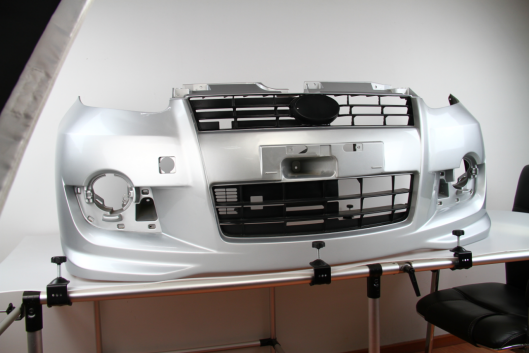

Understanding RIM's physical boundaries helps teams design large-format parts that match equipment capabilities.
At KAIAO, production runs on 2 specialized RIM machines handling large structural components with repeatable accuracy around ±0.1 mm.
Technical Parameter | Reaction Injection Molding (RIM) | Traditional Injection Molding |
Typical Tolerances | ±0.1 mm | ±0.05 mm to ±0.03 mm |
Part Size Capability | Large-format housings up to ~2 meters | Limited by press platen and tonnage |
Allowable Wall Thickness | 3 mm to 20 mm variable walls | Uniform walls strictly required |
Tooling Material | Aluminum or cast resin composites | Hardened steel or pre-hardened P20 |
Thermoplastic molding forbids abrupt wall-thickness changes to prevent sink marks, voids, and warping. RIM handles varied walls exceptionally well: because PU cures via chemical cross-linking rather than just thermal cooling, designers transition smoothly from thin ribs (3 mm) to thick bosses or frames (20 mm) in one part without stress fractures. For smaller parts where casting beats machining, compare vacuum casting vs injection molding.
RIM isn't limited to one rigid compound. By adjusting the polyol and isocyanate formulations, manufacturers tailor the finished part's mechanical properties to specific engineering needs:
· Unfilled Rigid Polyurethane Structural Foam: A dense solid skin around a micro-cellular core gives high flexural rigidity and impact resistance at lower weight than solid thermoplastics—ideal for large equipment enclosures.
· High-Impact Solid Elastomeric Polyurethanes: Superior tear resistance, elongation, and shock absorption for protective bumpers, ruggedized boots, and flexible industrial seals.
· Flame-Retardant and UL-Rated Formulations: Specialized additives pass stringent UL94 V-0 standards required for electrical cabinets, server racks, and medical diagnostic consoles.
· Structural Glass-Filled Polyurethanes: Chopped glass reinforcement boosts tensile strength and thermal stability for heavy-duty load-bearing panels.
When engineers evaluate production routes for enclosures and structural covers, RIM must be weighed against high-pressure molding and milling.
· RIM vs High-Pressure Injection Molding: At millions of units annually, high-pressure molding gives the lowest per-part cost despite massive upfront tooling. But for 50 to 3,000 units, the astronomical cost of hard steel multi-ton molds makes injection molding uneconomical—RIM bridges the gap.
· RIM vs CNC Machining: While low volume CNC machining needs zero tooling, milling a large curved housing from solid billets wastes material and spindle time. RIM produces large organic shapes and smooth radii instantly. For small parts needing tight bearing fits, see low volume injection molding cost for alternative tooling tiers.
Designing successfully for RIM means following principles that ensure smooth chemical flow and clean part extraction:
· Draft Angles: Even at low pressure, vertical walls need a draft angle (typically 1 to 2°) so the cured part releases cleanly from the aluminum mold without scuffing.
· Threaded Inserts and Metal Studs: Metal inserts, alignment pins, and studs load directly into the mold before injection; the expanding PU flows around and encapsulates them during curing, eliminating secondary heat-stake or ultrasonic insertion.
· Integrated Ribs and Gussets: Use generous corner fillets and draft on structural ribs to reinforce large flat panels against flexing, leveraging RIM's ability to fill thick and thin sections at once.
Reaction injection molding is optimized for low-to-medium batches where capital conservation and large part size intersect.
RIM's economic sweet spot is generally 50 to 3,000 parts per project. Below 50, 3D printing or manual urethane casting is more practical; above 3,000, amortizing a multi-cavity hardened steel mold becomes viable.
Evaluating a RIM project means auditing your part's footprint, annual volume, and structural needs. Because quotes depend heavily on geometry, size, and batch quantity, an integrated manufacturer keeps your tooling strategy aligned with your timeline. KAIAO runs everything in-house under ISO 9001:2015—2 RIM machines, 21 CNC centers (±0.01 mm), Hexagon CMM (±0.025 mm) and FARO arm (±0.005 mm) inspection, 12 standard finishes, and 4 paint booths (PPG, DuPont, AkzoNobel) staffed by 50+ technicians. With zero MOQ, 1 to 3 week lead times, and 24-hour quoting with DFM reviews, we support your launch from prototype to full commercial delivery.
Call to Action (CTA) Ready to evaluate whether RIM fits your large-format component? Upload your CAD for a RIM feasibility review and quote; we'll confirm wall thickness, insert / over-molding options, and whether RIM beats injection molding or vacuum casting for your large part. |
Reaction injection molding is optimized for low-to-medium production programs ranging from 50 to 3,000 parts. This volume window allows hardware companies to leverage low-cost aluminum or composite tooling to produce large structural components without committing capital to expensive high-pressure steel molds.
Unlike traditional injection molding—which requires uniform wall sections to prevent warping and sink marks—RIM accommodates variable wall thicknesses ranging from 3 mm to 20 mm within the same part. The chemical cross-linking reaction cures the polyurethane evenly, allowing smooth transitions from thin cosmetic skins to thick structural bosses.
Yes, metal threaded inserts, mounting studs, and reinforcement brackets can be manually positioned inside the mold cavity prior to closing. The liquid polyurethane flows around and permanently encapsulates the inserts during the chemical injection cycle, eliminating the need for secondary post-molding insertion steps.
RIM operates at low internal injection pressures (often under 0.5 MPa), whereas high-pressure injection molding requires clamping tonnages up to thousands of tons to resist molten thermoplastic flow. Because RIM requires minimal clamping force, molds can be machined from soft aluminum or cast epoxy composites rather than heavy heat-treated tool steel.
RIM parts emerge from the mold with a smooth cosmetic skin that can be textured directly via the mold surface or finished with secondary painting. KAIAO supports RIM production with 12 standard finishes and 4 in-house paint booths utilizing PPG, DuPont, and AkzoNobel coatings operated by 50+ finishing technicians.
Because RIM molds use aluminum or composite materials and bypass high-temperature vacuum heat treatment, tooling fabrication is compressed significantly. Combined with in-house CNC mold making and 24-hour quoting with DFM review, initial sample parts are typically delivered within a 1 to 3 week lead time.
