For rapid prototyping, casting methods like vacuum casting are generally faster for producing initial small batches (20-50 units) of high-quality parts, with lead times often around 15 days, due to quicker, less expensive tooling. Injection molding, while offering faster cycle times per part once tooling is complete, has a longer initial setup due to complex mold fabrication, making it faster for high-volume production but slower for initial prototypes.
In the fast-paced world of product development, speed is often the ultimate differentiator. When it comes to creating plastic parts, two dominant manufacturing methods stand out: injection molding and various casting techniques. Both are capable of producing high-quality components, but their timelines, especially in the context of rapid prototyping, can differ significantly. This article will delve into the speed aspects of injection molding versus casting, helping you determine which method will get your prototypes or low-volume parts into your hands faster.
What Are the Key Differences Between Injection Molding and Casting?
How Does Tooling Impact Speed in Injection Molding vs. Casting?
When Is Injection Molding Faster for Prototyping and Production?
When Is Casting Faster for Prototyping and Low-Volume Production?
Injection Molding vs. Casting: Which Is Faster for Your Project?
Injection molding forces molten plastic into a rigid, typically steel or aluminum, mold cavity under high pressure, while casting involves pouring or injecting liquid material (often resin or metal) into a mold, which can be rigid or flexible (like silicone), and allowing it to solidify. The primary differences lie in tooling complexity, pressure application, material types, and suitability for different production volumes and speeds.
Understanding the core mechanics of each process is essential to grasp their speed implications.
Table: Key Differences Between Injection Molding and Casting

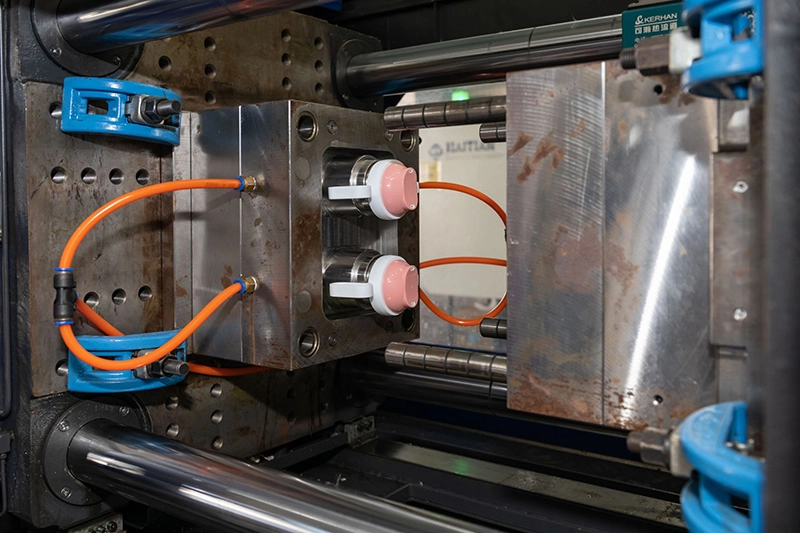

Injection Molding: Imagine a giant syringe. Plastic pellets are melted in a heated barrel and then rapidly injected into a precisely machined metal mold. Once cooled and solidified, the mold opens, and the part is ejected. This process is highly automated and incredibly fast per part once the mold is ready.
Casting (e.g., Vacuum Casting): This is more akin to making a Jell-O mold. A master model (often 3D printed) is used to create a flexible silicone mold. Liquid polyurethane resin is then poured into this silicone mold, often under vacuum to remove air bubbles, and allowed to cure. Once cured, the flexible mold is cut open to retrieve the part. This process is less automated and slower per part but has a much faster and cheaper tooling phase.
The fundamental difference in how molds are made and how material is introduced and solidified directly impacts the overall speed of each method, especially when considering the entire prototyping cycle from design to finished part.
Tooling significantly impacts speed, with casting methods like vacuum casting being faster for initial prototypes due to quick, inexpensive silicone mold fabrication (typically 5-7 days). In contrast, injection molding requires complex, high-precision metal molds that take much longer to design and machine (weeks to months), making its initial setup slower, despite faster per-part cycle times.
The time it takes to create the mold is often the most significant factor determining which process is faster for prototyping.
Table: Tooling Speed Comparison
Injection Molding Tooling: Creating a robust, high-precision metal mold for injection molding is an intricate engineering task. It involves designing complex geometries, cooling channels, ejector pin systems, and often multiple cavities. This requires extensive CNC machining, EDM (Electrical Discharge Machining), and skilled manual finishing. Even for "rapid tooling" using aluminum, the process still takes several weeks. This long lead time for mold fabrication is the primary reason injection molding is slower for initial prototypes.
Example: A mold for a complex automotive interior component might take 6-10 weeks to machine and validate before the first part can be molded.
Casting Tooling (Vacuum Casting): The tooling for vacuum casting is significantly simpler and faster. It starts with a master model, which can be quickly produced via 3D printing or CNC machining (often in 1-3 days). This master model is then used to create a flexible silicone mold, a process that typically takes only 5-7 days. The silicone mold captures fine details from the master but is much quicker and cheaper to produce than a metal injection mold.
Example: A master model for a consumer electronics housing can be 3D printed overnight, and a silicone mold can be ready in less than a week, allowing part production to begin almost immediately.
For rapid prototyping, where the goal is to get functional parts quickly for design validation or testing, the speed of tooling creation gives casting methods a distinct advantage.
Injection molding boasts significantly faster cycle times per part, typically ranging from 10 to 60 seconds, making it ideal for high-volume production once tooling is complete. In contrast, casting methods like vacuum casting have much longer cycle times per part, often taking 30 minutes to several hours for curing, which makes them slower for individual part production but still faster for initial small batches due to quicker tooling.
Once the tooling is ready, the speed at which individual parts can be produced becomes the critical factor. Here, injection molding truly shines.
Table: Cycle Time Comparison (Per Part)
Injection Molding Cycle Time: The speed of injection molding is phenomenal. Once the molten plastic is injected, it cools rapidly within the metal mold, which often has integrated cooling channels. As soon as the part is solid enough, the mold opens, and the part is ejected, ready for the next shot. This entire process can take mere seconds for small parts, or up to a minute or two for larger, thicker parts. This rapid, automated cycle is why injection molding is the king of mass production.
Example: A small plastic cap might have a cycle time of 15 seconds, meaning 240 parts per hour from a single cavity.
Casting Cycle Time (Vacuum Casting): Casting processes are inherently slower per part. After the liquid resin is poured into the silicone mold, it needs time to cure and solidify. This curing process can take anywhere from 30 minutes to several hours, depending on the resin type and part thickness. While multiple silicone molds can be used simultaneously to increase output, each individual mold still has a long cycle time. Furthermore, the demolding process is often manual and requires careful handling to avoid damaging the flexible mold or the freshly cured part.
Example: A vacuum cast part might require 45 minutes to cure in the mold, plus demolding and post-curing time. Even with 10 molds, the total output per hour is still limited.
In summary, while injection molding has a much longer initial tooling phase, its per-part cycle time is vastly superior, making it the faster option for producing large quantities of parts once the mold is ready. For initial prototypes, however, the quick tooling of casting methods often means you get your first parts faster.
Part complexity affects speed differently: injection molding can handle intricate geometries with high repeatability once the complex mold is built, but the initial mold fabrication time increases significantly with complexity. Casting methods, particularly vacuum casting, are faster for complex prototypes because the silicone mold creation from a 3D printed master is less sensitive to intricate details, allowing quicker production of complex parts in low volumes.
The intricacy of your part's design plays a crucial role in determining which method will be faster from concept to finished prototype.
Table: Complexity vs. Speed
Injection Molding and Complexity: For injection molding, complexity is a double-edged sword. While the final parts can be incredibly intricate and precise, achieving that complexity in the metal mold is a major time and cost driver. Features like undercuts, thin walls, internal channels, and complex textures require sophisticated mold design, multi-part molds, side-actions, and precise machining. Each of these adds weeks or even months to the mold fabrication timeline. However, once the mold is perfected, even highly complex parts can be churned out in seconds.
Example: A complex electronic connector housing with multiple internal clips and very thin walls would require an extremely intricate injection mold, potentially extending tooling time by several weeks.
Casting and Complexity (Vacuum Casting): Casting methods, especially vacuum casting, are much more forgiving of part complexity during the tooling phase. The silicone mold is created by pouring liquid silicone around a master model. As long as the master model can be produced (e.g., via 3D printing), the complexity of its features (undercuts, intricate details) does not significantly increase the time it takes to make the silicone mold. The flexible nature of silicone allows for easy demolding of parts with undercuts without the need for complex mold mechanisms.
Example: A prototype for a medical device with complex internal fluidic channels and external ergonomic features can be 3D printed as a master, and a silicone mold can be made quickly, allowing for rapid production of functional prototypes.
Therefore, for initial prototypes of complex parts, casting methods often provide a faster path to getting physical parts in hand, as their tooling phase is less impacted by design intricacy.
Injection molding becomes faster for prototyping when multiple design iterations are complete and the design is stable, making it ideal for pilot runs (hundreds to thousands of units) or when production-grade materials and properties are critical for functional validation. While initial tooling is slow, its rapid per-part cycle time (seconds) makes it the fastest method for high-volume production once the mold is ready.
Despite its longer tooling lead time, injection molding offers distinct speed advantages in specific scenarios.
Table: When Injection Molding is Faster
Pilot Production: When you need hundreds or thousands of parts for market testing, regulatory submissions, or initial product launch, rapid injection molding (using aluminum or softer steel molds) becomes faster than casting. While the mold still takes weeks, the per-part speed quickly overtakes the slower, manual nature of casting for these volumes.
Example: A consumer electronics company needing 500 units of a new product's casing for a limited market release would find rapid injection molding faster overall than vacuum casting, despite the initial mold lead time.
Late-Stage Prototyping/Design Validation: Once a design is largely finalized and only minor tweaks are expected, investing in rapid injection molding tooling can be faster than continuing with slower casting methods if a larger batch of production-representative parts is needed for extensive testing or certification.
Critical Material Properties: If your prototype absolutely requires the exact mechanical, thermal, or chemical properties of a specific production thermoplastic (e.g., a high-temperature resistant PEEK part), injection molding is the only way to achieve this quickly and repeatedly. Casting resins can mimic properties but are rarely identical.
In essence, injection molding's speed comes into play when the initial tooling investment is justified by the volume of parts needed or the critical requirement for production-grade material performance.
Casting methods, particularly vacuum casting, are significantly faster for initial rapid prototyping and low-volume production (up to 20-50 units) due to their quick and inexpensive silicone mold fabrication, typically completed in 5-7 days. This allows for rapid design iterations and functional testing with high-quality, injection-molded-like parts, making it the fastest path from concept to physical prototype.
Casting methods, especially vacuum casting (also known as silicone molding or urethane casting), excel in speed during the early and mid-stages of product development.
Table: When Casting is Faster
Early-Stage Design Validation: When you need to quickly evaluate form, fit, and basic function of a new design, vacuum casting provides high-quality parts in a fraction of the time it would take for injection molding tooling.
Example: A startup developing a new consumer gadget needs 10 prototypes for internal review and initial user feedback. Vacuum casting can deliver these parts in about 15 days, whereas injection molding would take months.
Market Testing/Proof of Concept: For small batches required for limited market trials, investor presentations, or trade shows, casting offers a fast and cost-effective solution.
Example: An industrial design firm needs 25 units of a new product concept for a client presentation next month. Vacuum casting is the ideal choice for speed and quality.
Bridge Production: When injection molding tooling is underway but you need parts sooner, casting can bridge the gap, providing functional parts while you wait for the hard tooling to be completed.
For projects prioritizing speed to market for initial prototypes and low-volume batches, casting methods like vacuum casting are undeniably faster due to their rapid tooling and flexible approach to design changes.
For rapid prototyping, casting (e.g., vacuum casting) is faster for initial small batches (20-50 units) and design iterations due to quick silicone mold creation (5-7 days). Injection molding becomes faster for pilot runs (hundreds to thousands) and high-volume production once its complex metal tooling is complete, offering rapid per-part cycle times. The fastest method for your project depends on your volume, design stability, and urgency for initial parts.
Deciding between injection molding and casting for speed boils down to your project's specific stage and requirements.
Table: Speed Comparison Summary for Your Project
Early Stage (Concept to Functional Prototype): If you need a few high-quality parts quickly to validate a design, test functionality, or gather user feedback, vacuum casting is almost always the faster option. Its quick tooling allows you to get physical parts in hand in about 15 days.
Mid Stage (Pilot Run to Market Testing): When your design is stable, and you need hundreds to a few thousand parts that are representative of final production, rapid injection molding becomes the faster choice overall. While the initial mold takes longer (weeks), the per-part speed quickly makes up for it at these volumes.
Late Stage (Mass Production): For volumes in the tens of thousands to millions, traditional injection molding is unequivocally the fastest method due to its unparalleled per-part cycle times and automation.
KAIAO Rapid Manufacturing offers both vacuum casting and rapid injection molding services, allowing us to guide you to the fastest and most cost-effective solution for your specific project needs. Our expertise ensures that whether you need quick prototypes or a bridge to production, your parts are delivered efficiently and to the highest quality standards.
Casting methods, particularly vacuum casting, are faster for getting your first prototype. The silicone molds can be made in 5-7 days, allowing you to receive initial parts in about 15 days total, much quicker than the weeks or months required for injection molding tooling.
An injection mold (even rapid tooling) typically takes 4-8 weeks to fabricate. A silicone mold for vacuum casting takes significantly less time, usually 5-7 days.
Yes, rapid injection molding uses aluminum or softer steel molds to reduce tooling time (to 4-8 weeks) compared to traditional steel molds. It's faster than traditional injection molding for prototypes and pilot runs, but still slower than casting for initial prototypes.
For producing 1,000 parts, rapid injection molding would generally be faster overall. While its tooling takes longer initially, its per-part cycle time (seconds) quickly surpasses the slower, manual per-part production of casting methods (minutes to hours).
No. Part complexity significantly increases the tooling time and cost for injection molding due to complex mold mechanisms. For casting, complexity has less impact on silicone mold creation time, as the flexible mold can easily accommodate intricate features and undercuts, making it faster for complex prototypes.
When comparing injection molding and casting for speed, the answer isn't a simple one-size-fits-all. For initial rapid prototyping and low-volume batches (up to 50 units), casting methods like vacuum casting are undeniably faster, primarily due to their quick and inexpensive tooling. You can get high-quality, functional prototypes in your hands in a matter of weeks.
However, as volumes increase to pilot runs (hundreds to thousands) and certainly for mass production, injection molding becomes the faster method overall. While its initial tooling phase is longer and more costly, its unparalleled per-part cycle times (seconds) quickly make up the difference, leading to faster total production for higher quantities.
Ultimately, the fastest method for your project depends on your specific needs: how many parts you need, how quickly you need the first parts, and how stable your design is. By understanding these nuances and leveraging the expertise of a versatile manufacturing partner like KAIAO Rapid Manufacturing, you can choose the optimal process to accelerate your product development cycle.
