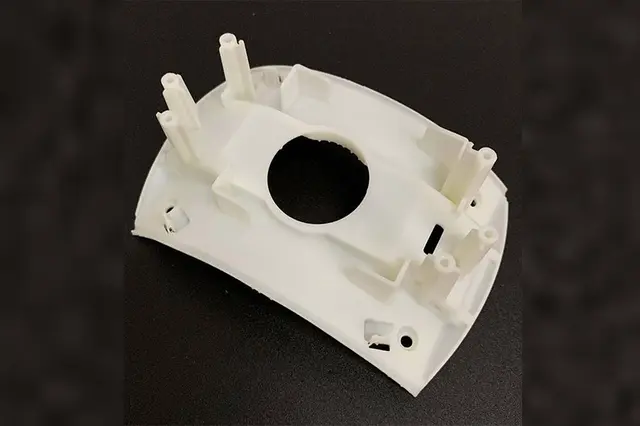

Compressing product development cycles down to tight delivery windows requires flawless execution during the hardware prototyping phase. A single manufacturing misstep can derail the entire engineering timeline, incur unexpected development costs, and introduce hidden production risks. To successfully navigate hardware development, R&D teams must avoid critical prototyping mistakes by systematically integrating upfront DFM analysis, precision material selection, and scalable low-volume manufacturing processes.
Table of Contents
Choosing how to manufacture an initial part depends entirely on what that part needs to prove. —results in misleading test data and catastrophic prototype failure.
When sourcing rapid prototyping services China, engineers often select additive manufacturing due to its low initial cost. However, a stereolithography (SLA) or fused deposition modeling (FDM) part cannot replicate the isotropic mechanical strength of a solid, billet-machined component. For example, in the robotics industry, joint systems and gears undergo intense structural shear stresses
转向 high-precision CNC machining prototypes China capabilities for a purely aesthetic, early-stage consumer electronics enclosure creates unnecessary expenses. If the primary goal is to evaluate visual form factors, industrial design ergonomics, or component layout, additive technologies or vacuum casting are far more efficient, allowing a rapid prototype lead time 3-5 days for quick design iterations. Matching the process to the specific validation tier—appearance, mechanical function, or pre-production compliance—remains essential.
A 3D CAD model that looks flawless on a high-resolution display may be completely unmachinable or impossible to mold in the real world. Failing to integrate DFM principles during early prototyping creates geometries that look perfect on a 3D model but are impossible or cost-prohibitive to manufacture at scale.
Many product designers create parts with deep, narrow pockets, zero draft angles, or ultra-thin walls. When these files are sent directly to production without optimization, manufacturing costs skyrocket. For instance, an internal right-angle corner cannot be cut by a rotating, round end mill without specialized, expensive EDM (Electrical Discharge Machining) post-processing or an engineered undercut (dog-bone corner).
By leveraging professional DFM (Design for Manufacturability) services China, engineering teams can identify these friction points before production begins. Implementing draft angles of 1 to 2 degrees for injection molded parts, maintaining uniform wall thicknesses to prevent sink marks, and radiusing internal edges prevent costly tool modifications later. Upfront DFM transforms a theoretical design into an optimized asset ready for seamless scaling.
Step 1: Initial CAD Geometry Optimization (Day 1)
Review CAD models for manufacturing constraints: eliminate sharp internal vertical corners, apply appropriate draft angles, and maintain uniform wall thicknesses across the part.
Step 2: Cross-Process Compatibility Check (Day 1-2)
Evaluate if the current geometry is optimized for the intended process, such as tool clearance for CNC machining versus flow analysis for rapid injection molding.
Step 3: DFM Report & Feedback Loop (Day 2)
Generate an engineering DFM report highlighting structural risks, interference fits, and recommended tolerance adjustments to streamline fabrication.
Step 4: Final Design Freeze & CAM Programming (Day 2-3)
Implement DFM recommendations, freeze the design, and generate precision toolpaths or mold layouts for manufacturing execution.
Material substitution during the prototyping phase is a frequent cause of hidden product development risks. Using cheap placeholder materials instead of specified engineering prototype materials selection compromises both functional testing and aesthetic verification, leading to false validation.
In demanding applications like medical devices or aerospace components, material properties are non-negotiable. If a surgical tool enclosure requires autoclave sterilization, prototyping it in a standard, low-temperature polyurethane resin causes thermal deformation. The prototype must be executed in materials like PEEK, Radel, or surgical-grade stainless steel via high-precision CNC machining.
For mid-range testing quantities (10 to 100+ units), utilizing vacuum casting prototype services provides an excellent alternative. Vacuum casting utilizes specialized polyurethane (PU) resins engineered to precisely mimic the mechanical, thermal, and optical properties of production plastics like ABS, Polycarbonate (PC), PMMA, and high-elongation elastomers. This ensures that environmental testing, impact checks, and drop tests yield reliable data that correlates directly with final mass-production performance.
Failing to account for mechanical variances between different manufacturing processes leads to multi-part assemblies that do not fit together. Ignoring geometric dimensioning and tolerancing (GD&T) causes critical fitment failures when combining multiple machined, cast, or stamped prototype components.
A common error is applying standard CNC machining tolerances to every part in a complex assembly, regardless of how it is fabricated. Precision CNC machining easily achieves tight tolerances of ±0.025 mm. However, if that machined component must press-fit into a sheet metal bracket (which carries a standard cutting tolerance of ±0.2 mm and a bending tolerance of ±1°), an assembly stack-up error occurs.
Engineers must calculate the worst-case statistical stack-up of tolerances across all mating components. For instance, when designing an electronic device shell that integrates a CNC-machined aluminum chassis with a rapid injection molding prototype China internal frame (±0.05 mm tolerance), clearance gaps must be explicitly engineered into the CAD interface. Failing to do so results in components binding, buckling, or failing to align during final assembly verification.
The pressure to achieve a rapid prototype lead time 3-5 days can tempt R&D teams to compress or completely bypass systematic testing gates. Treating a prototype as a one-and-done artifact rather than an iterative prototype design validation process risks carrying uncorrected flaws into mass production tools.
A successful hardware workflow depends on sequential validation phases:
EVT (Engineering Validation Testing): Focuses on core functional architecture, breadboard electronics, and raw mechanical performance.
DVT (Design Validation Testing): Verifies environmental compliance, ergonomics, precise material finishes, and complex assembly fitment.
PVT (Production Validation Testing): Executes the first production-run tooling setups to ensure the manufacturing line achieves predictable yields.
Skipping straight from an unrefined EVT model to expensive, high-cavitation mass production tooling frequently results in catastrophic tool modification expenses. Iterating quickly through rapid manufacturing methods allows engineering teams to fail fast, optimize geometry, and secure a robust design before investing capital in hard tooling steel.
The transition from a single prototype to 100,000 units represents a steep engineering hurdle where unforeseen process variables emerge. Bypassing low volume manufacturing China eliminates the critical bridge phase needed to optimize assembly lines, run pilot market tests, and stabilize production yields.
Many procurement managers attempt to jump directly from a 5-unit prototype batch into high-volume injection molding to capture a lower per-part price. This approach introduces extreme risk. Low-volume manufacturing solutions—such as rapid tooling or bridge molding supporting 100 to 10,000+ parts—act as a vital safety valve.
For instance, in automotive interior development, producing a pilot run of 500 functional parts allows engineers to validate real-world installation torque, check color consistency under varying light sources, and perform destructive crash testing. This low-risk bridge phase ensures that any lingering design anomalies are completely resolved before investing in permanent, hardened steel multi-cavitation molds.
Procuring custom hardware based strictly on the lowest initial quote often backfires, creating hidden costs down the line. Selecting a vendor based strictly on the lowest bid often introduces hidden costs through delayed lead times, out-of-tolerance parts, and a complete lack of engineering support.
Low-cost workshops frequently lack advanced digital infrastructure, precision quality control machinery, and internal engineering expertise. When an out-of-tolerance part arrives late, the cost of a missed product launch or an idle assembly line far outweighs any minor savings realized on the initial quote.
A professional custom prototype manufacturing supplier provides comprehensive value that extends beyond a line-item price. Facilities operating under advanced ERP systems for real-time production tracking, maintaining structured precision inspection departments (utilizing CMM and optical comparators), and offering integrated engineering feedback provide necessary operational security. Partnering with an expert rapid manufacturing specialist ensures components are delivered on time, within specification, and fully optimized for success.
To assist engineering and procurement teams in making data-driven decisions, the matrix below outlines the precise technical capabilities, tolerances, and optimal volumes across primary rapid manufacturing workflows.
Manufacturing Process | Standard Tolerances | Materials Offered | Optimal Production Volume | Primary Application Case |
CNC Machining | ±0.025 mm | Aluminum Alloys, Stainless Steel, Copper, ABS, PC, PEEK, POM | 1 – 200+ pcs | Precision structural verification, high-strength functional components (Robotics, Aerospace) |
Vacuum Casting | ±0.2 mm | Polyurethane (PU) Resins (Mimicking ABS, PC, PMMA, Rubber) | 10 – 100+ pcs | Pre-production market testing, aesthetic display models, elastomeric overmolding |
Rapid Injection Molding | ±0.05 mm | Production Plastics (PP, ABS, PC, Nylon, TPE, PBT) | 100 – 10,000+ pcs | Bridge production, functional field testing, regulatory compliance validation (Medical, Automotive) |
Sheet Metal Fabrication | ±0.2 mm (Cutting), ±1° (Bending) | Steel, Stainless Steel, Aluminum, Copper Alloys | 1 – 500+ pcs | Structural brackets, electronic enclosures, server chassis racks |
Avoiding common hardware development mistakes—such as process mismatches, neglected DFM analysis, and improper material choices—is essential for moving smoothly from a concept to a finished product. By understanding the precise limits and capabilities of CNC machining, vacuum casting, and rapid tooling, engineering teams can significantly cut down development cycles while keeping costs under control.
At KAIAO RAPID MANUFACTURING CO., LIMITED, over 30 years of hands-on industry experience is brought straight to each project. The manufacturing facility combines high-precision CNC machining (±0.025 mm tolerances), advanced vacuum casting prototype services, and rapid injection molding into a single, streamlined B2B supply chain. Backed by ERP-driven logistics and upfront DFM support, precision prototypes are delivered within a 3-to-5-day window to global markets.
To de-risk a design and accelerate the production timeline, contact the engineering team to receive a detailed technical review and competitive quote.
For standard engineering geometries executed via CNC machining, the typical rapid prototyping lead time is 3-5 days. This timeline includes material preparation, precision machining, post-processing surface finishing, and multi-axis coordinate measuring machine (CMM) quality inspection, backed by express global shipping via DHL, FedEx, or UPS.
Vacuum casting prototype services are ideal for production volumes ranging from 10 to 100+ pieces, utilizing polyurethane resins to mimic production plastics without requiring expensive hard tooling. Rapid injection molding becomes the cost-effective choice for batches between 100 and 10,000+ pieces, using aluminum or soft steel molds to run genuine, production-grade engineering plastics.
The engineering team reviews every incoming 3D CAD file before production begins. The part's geometry is analyzed for thin walls, deep pockets that can cause tool deflection, inappropriate draft angles, and tight tolerance stack-ups. This helps optimize the design upfront, reducing failure rates and cutting down on rework costs.
Yes. For robotics and industrial equipment applications, high-precision CNC machining workflows are utilized to manufacture components out of high-strength alloys (Aluminum 6061-T6, 7075-T6, Stainless Steel 304/316) and robust engineering plastics like PEEK and POM (Acetal). This ensures the parts can withstand real-world mechanical stress and functional wear testing.
A strict zero-MOQ policy is maintained across all rapid prototyping operations. Early-stage product validation is supported by manufacturing single-unit runs (1 piece) for initial engineering evaluation, allowing design teams to test and refine concepts without upfront volume commitments.
