When engineering teams and procurement managers embark on a new hardware project, one of the most critical and frequently asked questions is: Which prototyping method is best for metal parts? The hard truth is that in the complex landscape of hardware development, a single, universal "best" method does not exist.
The optimal choice depends entirely on a delicate balance of specific variables: the part's intended function, the required dimensional precision, the current stage of development, and your budgetary constraints. Relying on a one-size-fits-all approach—such as defaulting exclusively to CNC machining for every single component—is a guaranteed way to inflate your budget and unnecessarily delay your time-to-market.
This comprehensive guide will break down the most effective metal prototyping methods, how to match them to your specific development phase, and how leveraging a multi-process manufacturing strategy can drastically reduce your costs and accelerate your product launch.
CNC Machining vs. Sheet Metal Fabrication: Which Should You Choose?
How Can Combining Manufacturing Processes Save You 40%? (Case Study)
Why is Low-Volume Production the Ultimate Test Before Mass Manufacturing?
In the realm of metal prototype manufacturing, failure doesn't always mean a part physically breaks; often, it means the prototype failed to deliver the necessary data within the required budget and timeline. Industry statistics reveal a staggering reality: over 65% of issues encountered during metal parts development stem directly from a mismatch between the chosen manufacturing process and the component's actual requirements.
Many engineering teams fall into the trap of process loyalty. Because CNC machining produces beautiful, high-tolerance parts, they use it for everything—even for simple brackets or large external housings that do not require aerospace-level tolerances. This results in exorbitant per-unit costs and extended lead times. Conversely, attempting to use rapid 3D metal printing for a part that ultimately needs the sheer tensile strength of a forged or billet-machined alloy will lead to catastrophic failures during functional load testing.
The key to avoiding this expensive trap is understanding that different manufacturing technologies solve different problems. Choosing the right process requires a holistic view of what you are trying to prove with the prototype.
Not sure which metal prototyping method is right for your project? Upload your CAD files and get expert recommendations based on your design, material, and specific application.
The "best" process shifts dynamically as your product moves from a digital concept to a mass-produced reality. A mature product development lifecycle requires a fluid transition between different manufacturing technologies.
Phase 1: Concept Validation (Focus on Speed and Form)
In the earliest stages, you are primarily testing spatial relationships, ergonomics, and basic aesthetics. At this point, metal might not even be strictly necessary. However, if weight and thermal feel are important, rough CNC machining or even rapid metal 3D printing can be utilized to get physical parts into hands quickly.
Phase 2: Functional Testing (Focus on Precision and Material Properties)
Once the design is structurally sound on screen, the prototype must survive real-world physical testing. This phase requires the exact mechanical properties of the final material. If the part must endure high stress, thermal cycling, or strict fluid dynamics, a precision CNC metal prototype cut from the exact production-grade billet (e.g., Aluminum 6061-T6 or Stainless Steel 316L) is mandatory.
Phase 3: Low-Volume Validation (Focus on Consistency and Cost)
Before investing tens of thousands of dollars in hard tooling (like die-casting or stamping molds), you must prove that the parts can be manufactured consistently and assembled efficiently. In this phase, balancing cost and repeatability is paramount. This is where combining processes—such as using sheet metal for bulk structures and CNC for critical joints—becomes highly strategic.
The two heavyweights in metal prototyping are CNC machining and sheet metal fabrication. Understanding where each excels is the foundation of cost-effective hardware development.

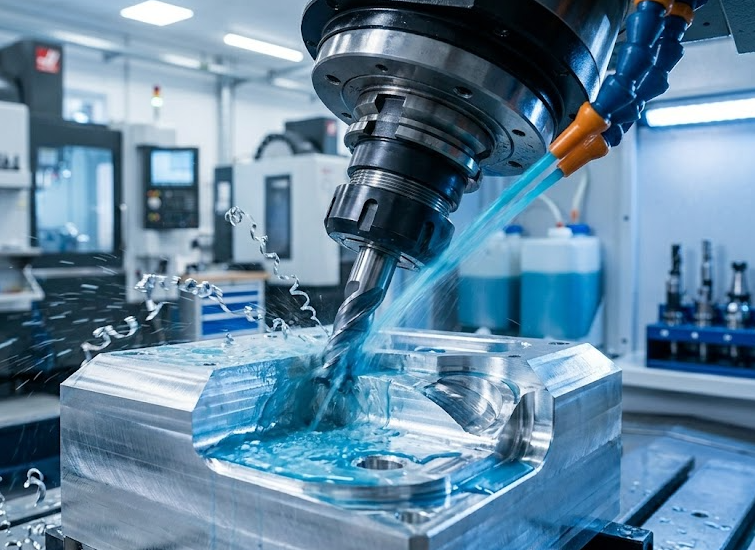

CNC Machining (Subtractive Manufacturing) uses computer-controlled cutting tools to remove material from a solid block of metal. It is unparalleled in its ability to produce complex 3D geometries and hold incredibly tight tolerances.
Sheet Metal Fabrication involves cutting (laser/waterjet), bending, and welding flat sheets of metal into 3D structures. It is highly material-efficient and extremely fast for certain geometries.
Here is a detailed comparative breakdown to guide your decision:
Feature / Requirement | CNC Machining | Sheet Metal Fabrication |
Ideal Geometries | Solid, complex 3D shapes, intricate internal cavities, thick walls. | Enclosures, brackets, chassis, uniform wall thickness designs. |
Dimensional Accuracy | Ultra-High (up to ±0.01 mm) | Good to High (typically ±0.1 mm to ±0.2 mm) |
Material Efficiency | Low (High waste as material is cut away from a block) | High (Very little waste from flat sheet layouts) |
Production Speed | Moderate (Requires complex programming and multiple setups) | Very Fast (Laser cutting and bending are highly rapid) |
Cost Profile | Higher per unit (driven by machine time and tool wear) | Lower per unit (saves 30%–50% vs. machining whole blocks) |
If you are developing a specialized fluid manifold or a high-stress engine component, CNC is your only option. If you are developing a server rack, an electronics enclosure, or a structural frame, sheet metal prototyping is vastly superior in both cost and speed.
The most sophisticated hardware companies do not restrict themselves to a single method; they combine them. To illustrate this, consider the real-world case of a European industrial equipment company developing a massive new metal housing assembly.
The Initial Flawed Strategy:
Originally, the engineering team designed the entire housing assembly to be CNC machined from solid blocks of aluminum. Because the housing was large and mostly hollow, the machining time was immense, and the material waste was staggering. The single-unit cost was exorbitant, the delivery cycles were agonizingly slow, and performing multiple design iterations threatened to bankrupt the R&D budget.
The Multi-Process Optimization:
Recognizing the unsustainable trajectory, the team partnered with a manufacturer who offered comprehensive solutions rather than just a single process. The strategy was completely overhauled:
The Bulk Structure: The main body of the external housing was redesigned for sheet metal fabrication. By laser cutting and bending flat aluminum stock, they eliminated hours of machining time.
The Critical Joints: The specific mounting points and internal bearing housings, which required absolute precision, were manufactured as separate CNC machined components.
The Assembly: These CNC components were then welded or riveted into the sheet metal chassis.
The Transformative Result:
By utilizing this hybrid approach for a 50-piece low-volume test run, the company achieved remarkable metrics. The per-unit cost dropped by 45%. The overall development and manufacturing cycle was shortened by roughly 35%. Because the parts were now affordable and fast to produce, the team successfully completed three full rounds of structural optimization before finally entering mass production.
We offer CNC machining, sheet metal fabrication, and hybrid prototyping solutions to match the specific needs of different stages in your product development.
Even the perfect manufacturing method will fail if the digital design is fundamentally incompatible with the physical machinery. This is where Design for Manufacturing (DFM) becomes the most critical step in rapid prototyping metal parts.
When creating metal prototypes, DFM prevents costly manufacturing bottlenecks. For example:
In CNC Machining: A common design error is creating perfectly sharp internal corners inside a deep pocket. Because spinning end mills are cylindrical, they cannot cut a 90-degree internal corner. A DFM review will flag this, prompting the engineer to add necessary corner radii, drastically reducing machining time and tool breakage.
In Sheet Metal Fabrication: Engineers often forget to account for "bend allowance" (the stretching of metal when folded) or fail to include bend reliefs to prevent the metal from tearing at the seams.
A proactive supplier will never just hit "print" on your CAD file. They will analyze the geometry and suggest structural tweaks that maintain your design intent while optimizing it for the machines.
Our expert engineering team provides comprehensive DFM analysis to ensure your design is optimized for cost-effective manufacturing and flawless quality.
Prototyping a single, perfect unit is a significant milestone, but it does not guarantee mass-production success. A highly skilled machinist can manually massage a single part to meet tolerances, but that level of manual intervention is impossible to scale.
Before committing hundreds of thousands of dollars to high-volume stamping dies or die-casting molds, you must execute a low-volume validation run (typically between 10 and 100 units).
This low-volume phase is critical because it introduces the variables of scaled manufacturing. It allows you to:
Identify "tolerance stacking" issues across assemblies.
Optimize welding, riveting, and finishing processes.
Get actual units into the field for beta testing and regulatory compliance checks.
By utilizing multi-process hybrid manufacturing during this stage, you can reduce your overall development cost by approximately 40% while uncovering structural and assembly issues that a single prototype would never reveal.
Validate your design with low-volume production before moving to full-scale manufacturing, significantly reducing your commercial and engineering risks.
The optimal path through hardware development is realizing that you do not need to be an expert in every single manufacturing process; you simply need to partner with someone who is. When you ask, "Which method is best?", the right supplier will tell you that there is no standard answer, and then immediately offer to help you analyze your specific part to find the most efficient path forward.
When selecting a partner for metal prototyping, look for an ecosystem, not just a machine shop. You need a supplier capable of rapid turnaround times—because in prototyping, time is your most expensive resource. Get precision metal prototypes in as fast as 1–3 days to accelerate your development process and maintain your competitive edge.
Seek out a manufacturer that offers an integrated suite of services: high-precision CNC machining for functional testing, rapid sheet metal fabrication for structural cost-reduction, and seamless transition capabilities into low-volume validation. By choosing a comprehensive solutions provider, you ensure that your product's design dictates the manufacturing process, rather than the limitations of the factory dictating your product's design.
1. What is the tightest tolerance I can expect from a CNC metal prototype?
With modern 3-axis and 5-axis CNC machining centers, a highly skilled supplier can reliably achieve tolerances as tight as ±0.01 mm to ±0.05 mm on metal parts, making it the ideal choice for high-precision aerospace, medical, or optical components.
2. Is sheet metal prototyping cheaper than CNC machining?
Generally, yes. If your part is an enclosure, chassis, or bracket with uniform wall thickness, sheet metal fabrication is significantly cheaper and faster because it eliminates the need to cut away large amounts of solid material (waste) and requires less machine programming time.
3. What are the most common metals used in rapid prototyping?
The most widely used metals are Aluminum (especially 6061 and 7075 due to their excellent machinability and strength-to-weight ratio), Stainless Steel (304 and 316L for corrosion resistance), Brass, and Titanium (for extreme strength and biocompatibility in medical/aerospace fields).
4. Can I use metal 3D printing instead of CNC machining?
Yes, DMLS (Direct Metal Laser Sintering) is an excellent method for geometries that are physically impossible to CNC machine (such as complex internal cooling channels). However, metal 3D printing usually leaves a rougher surface finish and is often more expensive than CNC for standard geometries.
5. How fast can I get a metal prototype manufactured?
By partnering with an agile, high-capacity manufacturer, standard CNC machined parts and sheet metal prototypes can often be manufactured and prepared for shipping in as fast as 1 to 3 days, drastically accelerating your R&D cycles.
6. What is the difference between a functional prototype and a visual prototype?
A functional prototype is manufactured from production-grade materials (like actual metal alloys) to endure physical stress, thermal testing, and real-world use. A visual prototype is usually 3D printed in plastic or resin simply to evaluate the aesthetic design, size, and ergonomics of the product.
