Compressed automotive product development cycles demand flawless execution during final functional testing phases. Systemic errors in pre-manufacturing design optimization, incorrect material replication, and cumulative tolerance stack-ups cause the vast majority of engineering validation failures before production. Overlooking these critical integration points leads to catastrophic hard tooling modification costs, extensive validation delays, and missed market launch windows.
To systematically lower these testing failure rates, engineering and procurement teams must analyze the root technical causes hidden within the pre-production workflow rather than treating prototyping as a mere machining service. This comprehensive guide breaks down the primary pitfalls in automotive prototyping and establishes a data-driven framework to help manufacturers guarantee component validation success on the first iteration.
Table of Contents

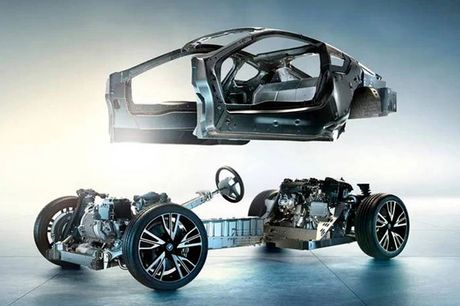

The global automotive sector faces unprecedented pressure to reduce development timelines. The rapid emergence of electric vehicles (EVs), autonomous driving hardware, and lightweight structural components requires engineering teams to accelerate development schedules. Consequently, the automotive prototype validation process has evolved from a simple physical checkpoint into a rigorous, multi-staged engineering gate.
Historically, vehicle development allowed for sequential validation phases spanning several years. Today, component architectures change rapidly, necessitating functional prototypes within days to meet compressed launch windows. This acceleration significantly increases the risk of validation failures. When an electric vehicle battery housing or an advanced driver-assistance system (ADAS) sensor bracket fails physical testing, the financial and scheduling consequences are severe.
To survive the rigorous demands of automotive qualification, components must successfully endure four critical testing pillars:
Mechanical Load Testing: Evaluation of tensile strength, fatigue limits, and yield structural integrity under high stress, such as engine mounts or suspension links.
Thermal Resistance Testing: Validation of heat deflection, expansion coefficients, and thermal management performance within tight engine bays or high-voltage battery enclosures.
Assembly Fit Verification: Ensuring multi-part structural subsystems align precisely under worst-case tolerance conditions without binding or interference.
Vibration & Durability Testing: Simulating long-term road wear, structural fatigue, and harmonic resonance over millions of cycles.

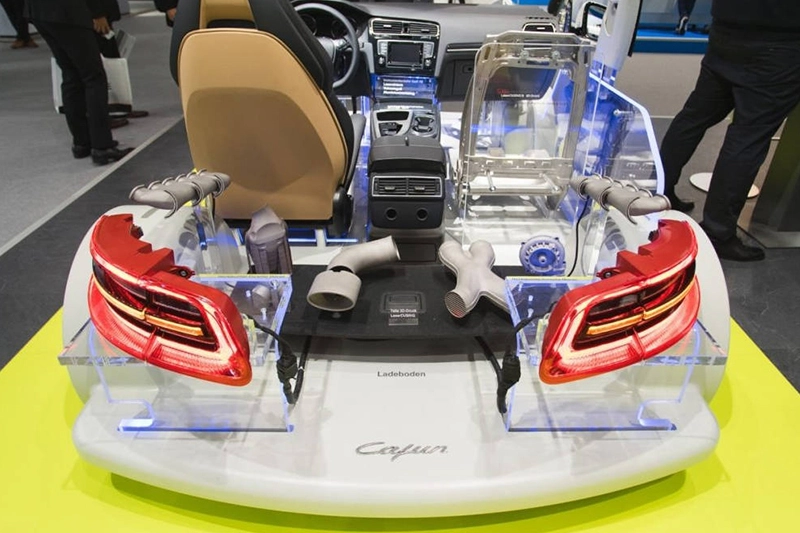

To survive these testing environments, development teams increasingly leverage comprehensive automotive rapid prototyping services China to combine multiple manufacturing disciplines under short turnaround schedules.
A major reason structural components fail physical stress testing is the lack of early design optimization for the intended manufacturing process. When engineering teams fail to utilize expert DFM automotive engineering support during initial design phases, they create geometric anomalies that compromise part performance.
In traditional internal combustion engine (ICE) brackets or complex electric vehicle powertrain components, designers frequently maximize strength by adding unoptimized mass. This approach often introduces sharp internal corners, non-uniform wall thicknesses, or deep pockets with zero draft angles. During mechanical load testing or vibration evaluation, these sharp corners act as severe stress concentration points, leading to premature structural cracking.
Ignoring Design for Manufacturability (DFM) guidelines establishes a predictable path toward validation failure:
Unoptimized CAD Design: The original model contains sharp internal vertical corners and unbacked thin walls.
Fabrication Without DFM Review: The design moves directly to production without adjustments for stress distribution or tooling limitations.
Physical Testing Stress Concentration: High-frequency vibration or mechanical loads concentrate forces directly at the unradiused internal joints.
Structural Fracture: Micro-cracks develop rapidly, causing the entire component to fail validation tests.
Furthermore, ignoring DFM guidelines means a part may be easy to produce via additive manufacturing but impossible to replicate via production tooling. For example, if an interior dashboard assembly requires a rapid automotive injection molding prototype China run for ergonomic verification, the absence of proper draft angles (typically 1 to 3 degrees) causes severe part drag, scuffing, or ejection distortion during the molding cycle. Engaging a manufacturing partner who provides upfront DFM support allows engineers to radius critical junctions, maintain uniform wall thickness, and eliminate manufacturing stress factors before production begins, dramatically lowering failure rates during automotive functional prototype testing.
Validation testing provides actionable data only if the prototype precisely replicates the mechanical and thermal characteristics of the final mass-produced part. Improper automotive part material selection prototype strategies introduce severe testing discrepancies, yielding misleading validation results.
Another layer of failure occurs when engineers overlook how a manufacturing process influences material behavior. 3D printing methods like FDM create anisotropic structures, meaning the part is weaker along the Z-axis print layers. If a component undergoes multi-axis mechanical load testing, an anisotropic prototype shears prematurely compared to an injection-molded or machined part.

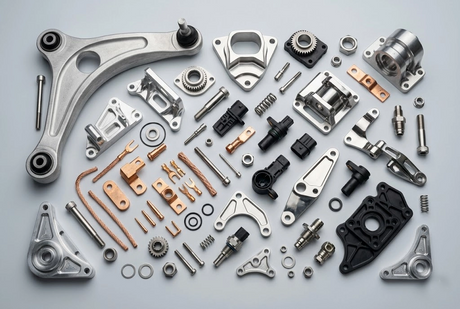

For high-stress powertrain brackets or structural lightweight parts, precision CNC machining automotive parts prototype methods represent the most reliable route. CNC machining utilizes solid, isotropic billets of genuine production materials, including Aluminum 7075, Stainless Steel, and high-performance polymers. When intermediate production quantities (10 to 100+ units) are necessary for physical crash testing or fleet durability evaluation, vacuum casting prototype services using specialized polyurethane resins can accurately simulate mass-production plastics like ABS, Polycarbonate, and elastomers.
Vehicles are complex assemblies comprising thousands of individual components. If engineers fail to calculate the cumulative tolerance stack-up across mating parts, the final assembly fit verification fails, even if each individual part falls within its nominal blueprint specifications.
Autonomous driving hardware provides an excellent example of this challenge. Camera mounts, radar brackets, and LiDAR housings require precise positioning. A minor angular deviation of only 0.5 degrees misaligns a sensor, causing system identification errors. If a sensor mount is CNC-machined to an accuracy of ±0.025 mm, but it attaches to a sheet metal body structural bracket that carries a standard laser cutting and bending tolerance of ±0.2 mm and ±1°, a significant assembly stack-up error occurs.
To ensure assembly success, the prototype design validation automotive industry framework demands rigid geometric dimensioning and tolerancing (GD&T). Engineering teams must plan for worst-case tolerance combinations, particularly when mating stiff metal structures with flexible plastic enclosures.
当 designing an electronic device shell that integrates a CNC-machined aluminum chassis with a rapid injection molded internal frame, clearance gaps must be explicitly engineered into the CAD interface. Failing to do so results in components binding, buckling, or failing to align during final assembly verification, necessitating expensive tool re-works. Utilizing high-precision manufacturing processes helps manage these variances effectively, keeping assembly alignment precise.
Jumping directly from a single, idealized prototype configuration to high-volume mass production tooling represents an immense risk. Traditional "one-and-done" prototyping mentalities that bypass low volume automotive manufacturing China eliminate the critical bridge phase needed to optimize assembly lines, run pilot market tests, and stabilize production yields.
A single prototype verified in a pristine laboratory environment cannot simulate the environmental stresses experienced by a fleet of vehicles undergoing road validation. For example, an intake manifold or exterior trim component might pass a static laboratory check but fail over time due to road vibration, UV exposure, or chemical attack from road salt.
Implementing a low-volume production run of 100 to 1,000 units using rapid injection molding or bridge tooling provides the parts required for real-world testing. This intermediate production step allows manufacturers to perform:
Long-distance fleet testing across diverse climate zones to verify UV and thermal durability.
Destructive crash testing to confirm passenger safety profiles and regulatory compliance.
Production line optimization to refine assembly sequence timing and worker ergonomics before finalizing high-cavitation steel production tooling.
This protective step allows engineers to implement final design tweaks on low-cost rapid tooling, saving millions in potential modification costs for hardened steel mass-production molds.
Selecting the correct manufacturing process for each unique validation stage is critical to avoiding testing failures. The matrix below defines the engineering capabilities, tolerances, and typical applications across primary prototyping workflows.
Manufacturing Process | Standard Engineering Tolerances | Available Materials | Optimal Batch Volume | Targeted Automotive Application Cases |
CNC Machining | ±0.025 mm | Aluminum 6061/7075, Stainless Steel, Magnesium, POM, PEEK | 1 – 200 pcs | Powertrain brackets, engine mounts, high-precision ADAS sensor housings, structural links |
Sheet Metal Fabrication | ±0.2 mm (Cutting), ±1° (Bending) | Steel Alloys, Stainless Steel, Aluminum, Copper | 1 – 500 pcs | EV battery enclosures, chassis brackets, cooling system frames, structural heat shields |
Rapid Injection Molding | ±0.05 mm | Production Plastics (PP, ABS, PC, Nylon 6/6, TPE) | 100 – 10,000+ pcs | Interior dashboard components, trim panels, functional switches, HVAC ducting assemblies |
3D Printing (SLA/SLS) | ±0.1 – ±0.2 mm | Photopolymer Resins, Nylon Powders | 1 – 5 pcs | Early concept validation models, aerodynamic wind-tunnel testing parts, complex duct routing checks |
As automotive product lifecycles shorten, engineering teams must partner with a supplier capable of acting as an extension of their R&D department. Selecting a dedicated China prototype manufacturer for automotive industry support helps mitigate development risks through technical insight and multi-process manufacturing capabilities.
A sophisticated prototype manufacturing facility goes beyond executing basic CAD data. It integrates strict digital infrastructure, such as advanced ERP tracking systems, to guarantee a rapid prototype lead time of 3-5 days for critical design iterations. This high responsiveness allows engineering teams to execute multiple rounds of physical testing without derailing the primary launch schedule.
传统 automotive procurement often splits orders among multiple niche vendors, which increases communication friction. Utilizing a single-source supplier capable of managing CNC machining, sheet metal fabrication, precision vacuum casting, and rapid tooling reduces logistical complexity. By integrating upfront DFM analysis, precise metrology verification using Coordinate Measuring Machines (CMM), and a broad matrix of industrial-grade metals and polymers, a qualified manufacturing partner helps ensure that components pass prototype validation on the first attempt, facilitating a smooth transition into final mass production.
Automotive prototype validation failure is an expensive but preventable obstacle. By recognizing the limitations of early design geometries, executing precise material selection strategies, calculating tolerance stack-ups, and utilizing low-volume bridge manufacturing, development times and overall project risks can be drastically minimized.
KAIAO RAPID MANUFACTURING CO., LIMITED delivers advanced, engineering-driven prototype solutions designed specifically for the rigorous standards of the global automotive supply chain. With more than 30 years of industrial experience, the facility combines precision CNC machining (achieving tolerances of ±0.025 mm), technical DFM support, sheet metal fabrication, and rapid tooling to accelerate iteration cycles. KAIAO ensures complex automotive components and rapid prototyping for EV components are fully optimized, verified, and delivered within tight 3-to-5-day production windows.
Accelerate the product development timeline and minimize validation risks by partnering with rapid manufacturing specialists. Contact the engineering department directly through the online consultation portal to request a detailed technical evaluation, upload CAD data for a comprehensive DFM analysis, or secure an accurate project quotation.
EV battery enclosures and housings often fail validation due to unoptimized thermal management or hidden structural weaknesses under mechanical stress. These components require a precise combination of high-precision CNC machining and sheet metal fabrication to manage strict sealing requirements and structural loads. Upfront DFM automotive engineering support is vital to locate stress points and plan proper cooling lines before production.
Critical alignment surfaces and structural mating components can be cut to tight tolerances of ±0.025 mm using advanced multi-axis CNC machining. This level of precision is necessary for items like autonomous driving hardware mounts, engine brackets, and transmission housings to ensure perfect fitment and prevent cumulative tolerance stack-ups during final assembly.
Rapid injection molding utilizes pre-engineered aluminum or soft steel mold bases to produce 100 to 10,000+ parts within 5 to 10 days. This process allows automotive engineers to test genuine production-grade plastics (such as PP, ABS, or Polycarbonate) under real-world fleet testing and impact testing scenarios, verifying the design before investing in permanent high-volume steel tooling.
Yes. Vacuum casting prototype services utilize specialized polyurethane (PU) resins formulated to precisely mimic the mechanical properties, elongation limits, shore hardness, and thermal resistance of production plastics and flexible rubbers. This makes it an ideal option for low-volume interior trim components, gaskets, and ergonomic consumer touchpoints.
Vibration and durability test failures are typically resolved by utilizing comprehensive DFM support to add structural fillets, eliminate sharp internal right angles, and maintain uniform wall thickness. Additionally, avoiding low-grade placeholder materials and selecting solid, isotropic CNC-machined metals or high-performance polymers ensures the prototype behaves exactly like the final production component during harmonic testing.
Sourcing from an experienced manufacturer in China provides highly compressed lead times, typically 3-5 days for CNC parts, combined with deep engineering support and cost-effective multi-process integration. This quick turnaround allows R&D teams to perform multiple iteration rounds rapidly, which is key to preventing late-stage engineering design failures before mass production.
