Producing flight-critical hardware requires a stringent balance of lightweight design, extreme material durability, and total manufacturing traceability. For aerospace engineers and procurement teams, aerospace CNC machining provides the necessary dimensional control to meet these rigorous safety standards. Selecting the right manufacturing partner involves thoroughly evaluating their equipment capabilities, inspection protocols, and material documentation practices. This guide explores the advanced alloys, multi-axis machining strategies, and strict quality frameworks you should verify before awarding an aerospace contract to ensure your components meet all flight validation requirements.
Table of Contents
The aerospace sector generally operates with zero margin for error. A failure in a landing gear bracket, a turbine impeller, or a sensor housing can result in catastrophic consequences. Consequently, manufacturing these components requires tight tolerance controls and a transparent, auditable supply chain.
Subtractive manufacturing processes must consistently yield parts that resist extreme temperature fluctuations, high structural loads, and intense vibrations. When navigating comprehensive CNC machining services, aerospace buyers typically focus heavily on a supplier's ability to maintain unbroken material traceability from the raw metal billet to the final inspected part. Without this documentation, even a perfectly dimensioned component is generally considered unusable for flight applications.
Aerospace engineers typically specify high-performance alloys that balance a high strength-to-weight ratio with resistance to fatigue and corrosion. Machining these materials requires rigid machine setups, specialized cutting tools, and optimized programming strategies.
For structural airframe components and interior brackets, Aluminum 7075 often serves as the baseline material due to its exceptional tensile strength, which rivals some steels. When components face higher temperatures or require biocompatibility for specialized fluid handling, engineers generally turn to titanium.
Executing cnc machining titanium aerospace projects presents unique challenges. Titanium (such as Ti6Al4V) possesses poor thermal conductivity, meaning the heat generated during cutting transfers into the tool rather than the metal chip. This requires machinists to use low cutting speeds, high-pressure coolant, and strict tool-wear monitoring to prevent part deformation and tool breakage. In extreme heat environments, such as jet engine exhausts, superalloys like Inconel are often required, though they are notoriously difficult and expensive to machine.
Material | Strengths | Limitations | Typical Aerospace Use |
. | . | . | . |
Aluminum 7075 | High strength-to-weight ratio | Lower heat resistance | Wing structures, brackets |
Titanium (TC4) | Excellent heat and fatigue resistance | High cost, difficult to cut | Landing gear, engine parts |
Inconel 718 | Maintains strength at extreme heat | Rapid tool wear, very slow | Jet engine exhaust systems |
Stainless 17-4 PH | High strength and corrosion resistance | Heavier than aluminum | Actuator housings, fasteners |
To better understand how these specific alloys respond to milling and turning operations, buyers should consult a detailed CNC machining materials guide before finalizing their bill of materials.
Aerospace components frequently feature complex organic contours, sweeping aerodynamic curves, and deep internal pockets that are designed to minimize weight without sacrificing strength. Manufacturing these geometries on traditional 3-axis equipment usually requires multiple custom fixtures and extensive manual repositioning.

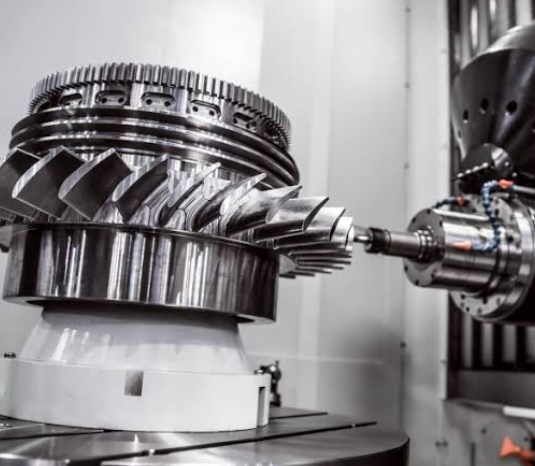

5-axis aerospace machining solves this by allowing the cutting tool to approach the workpiece from virtually any angle. Simultaneous 5-axis machines can smoothly cut complex turbine blades and impellers in a single continuous operation. Also, consolidating the machining process into a single setup dramatically reduces the risk of tolerance stack-up.the compounding alignment errors that occur every time an operator unclamps and refixtures a part.
While the hourly rate for multi-axis equipment is higher, reviewing the 5-axis CNC machining benefits often reveals that the elimination of custom jigs and the reduction in labor hours can make it the most cost-effective solution for complex flight hardware.
Light-weighting directly impacts an aircraft's fuel efficiency and payload capacity. To achieve this, design engineers frequently create "hogged out" components.starting with a solid billet of aluminum or titanium and machining away up to 80% of the material to leave only a thin-walled, web-like structural frame.
This Design for Manufacturability (DFM) approach poses significant manufacturing challenges. As large volumes of material are removed, internal residual stresses within the metal can release, causing the thin walls to warp or twist out of tolerance. Skilled machinists manage this by typically roughing the part to an oversize dimension, occasionally stress-relieving the metal, and then taking light, high-speed finishing passes to hit the final dimensions.
Geometric Dimensioning and Tolerancing (GD&T) is universally applied in aerospace drawings to define the precise functional relationships between different part features, such as the concentricity of bearing bores or the true position of mounting holes.
To verify these strict callouts, aerospace machine shops rely heavily on automated Coordinate Measuring Machines (CMM) in climate-controlled inspection rooms. Before full production begins, buyers generally require a First Article Inspection (FAI) report. The FAI process thoroughly documents every single dimension and note on the engineering drawing, proving that the manufacturing process is capable of producing a compliant part before scaling up the run.
When evaluating a new supply chain partner, procurement managers often ask what certifications should an aerospace machine shop have. The answer generally depends on where the component resides in the aircraft and the specific requirements of the prime contractor.
For foundational quality management, ISO 9001:2015 is the baseline standard, demonstrating that a shop has documented processes and corrective action procedures. For medical and highly regulated hardware, ISO 13485:2016 is also frequently held by advanced manufacturers.
However, for direct flight-critical components, buyers typically look for AS9100 certification. AS9100 builds upon ISO 9001 by adding stringent aerospace-specific requirements, such as counterfeit parts prevention and advanced risk management protocols. Also, if the part requires specialized secondary operations.like heat treating, chemical conversion coating, or non-destructive testing.the facility performing those specific tasks is often required to hold NADCAP accreditation.
Beyond facility certifications, a reliable shop must routinely provide complete material traceability. A Certificate of Conformance (CoC) and a Certificate of Analysis (CoA) from the raw material mill are mandatory to prove that the alloy meets exact aerospace specifications. When sourcing globally, identifying capable CNC machining services in China that adhere to these strict documentation practices can help you balance development budgets with uncompromising safety standards.
Aerospace CNC machining demands an unwavering commitment to precision, advanced multi-axis technology, and transparent quality control. By thoughtfully selecting materials like Titanium TC4 or Aluminum 7075, leveraging the setup reductions of 5-axis milling, and applying realistic GD&T, engineers can successfully produce lightweight, flight-ready hardware.
Evaluating a manufacturing partner requires looking beyond their equipment list; you must verify their ability to manage complex CMM inspections and deliver unbroken material traceability. By understanding these manufacturing constraints, procurement teams can build more resilient and cost-effective aerospace supply chains. To discuss your next aerospace project or request a technical manufacturability review, contact kaiao@cn-rp.com.
What makes aerospace CNC machining different from commercial machining?
Aerospace machining typically involves tighter tolerances, extremely rigid documentation and material traceability requirements, and the frequent use of difficult-to-machine alloys like titanium and Inconel.
Why is material traceability so important in aerospace?
Traceability ensures that a component can be tracked backward to the exact batch of raw material produced at the mill. If a material defect is discovered later, engineers must be able to identify and isolate every part made from that specific batch to prevent catastrophic failures.
Can aluminum be used for flight-critical components?
Yes. High-strength aluminum alloys, particularly Aluminum 7075, are heavily used in structural airframe components due to their excellent strength-to-weight ratio, though they are generally kept away from high-heat zones like the engine exhaust.
What is an AS9100 certification?
AS9100 is a specialized quality management system standard for the aerospace industry. It incorporates all ISO 9001 requirements while adding strict rules for risk management, configuration control, and counterfeit part mitigation.
Why do thin-walled aerospace parts sometimes warp during machining?
Raw metal billets contain internal residual stresses from their original forging or rolling processes. When massive amounts of material are quickly machined away to create thin walls, these stresses are released, which can cause the part to twist or warp.
Is 5-axis machining required for all aerospace parts?
No. Simple brackets, flat panels, and basic mounting plates can often be manufactured more cost-effectively on 3-axis machines. 5-axis machining is generally reserved for complex contours, deep undercuts, or parts that require too many manual setups on standard equipment.
What is a First Article Inspection (FAI)?
An FAI is a comprehensive inspection process where the very first part off the production line is measured against every single dimension, note, and specification on the engineering drawing to prove the machining process is accurate and stable.
