Choosing the wrong manufacturing method for small batches causes testing failures and severe budget overruns. For 50-100 parts, CNC machining wins for functional testing due to real material properties and ±0.001-inch precision, while 3D printing excels in early geometric design validation.
In my 20 years on the factory floor, I have seen procurement teams paralyzed by the choice between subtractive and additive manufacturing. They often try to force one technology to do everything. The reality of rapid prototyping for 50-100 parts isn't about picking a single winner; it is about understanding exactly when to deploy a layer-by-layer build versus cutting from a solid block of engineering-grade material.
If your prototype material cannot survive real-world stress, your functional testing data is completely invalid. Procurement managers must prioritize material properties when planning a pilot run.
CNC machining excels in material integrity by carving parts directly from solid blocks of production-grade metals and engineering plastics like ABS and PC. 3D printing builds parts layer-by-layer, which introduces structural weaknesses that often fail under mechanical stress testing.
Understanding isotropic versus anisotropic strength is the foundation of mechanical engineering. CNC machining is a subtractive process. We start with a solid billet of aluminum, steel, or ABS. Because the material's grain structure is uninterrupted, the final part exhibits isotropic properties—meaning it has equal strength in all directions. 3D printing (SLA, SLS, FDM) is additive. The bond between the printed layers (the Z-axis) is inherently weaker than the continuous material in the X and Y axes.
Example 1: Automotive Engine Brackets. If you need 50 brackets to test vibration resistance, 3D printing them will likely result in delamination (layers splitting under load). CNC machining them from solid Aluminum ensures they survive the test bench.
Example 2: Medical Device Housings. For a standard drop test, an FDM-printed housing will often shatter along its layer lines. A CNC-machined PC housing will absorb the impact exactly like an injection-molded part.
Analysis: While additive materials have improved drastically over the last decade, they still largely simulate mass-production plastics rather than duplicate them. Subtractive manufacturing uses the exact same stock material your final production line will use.
Practical Advice: If your 50-100 parts must survive a UL certification drop test, thermal cycling, or high-torque assembly, default to CNC machining.
High-tolerance assemblies require exact dimensional stability to function. Understanding the precision capabilities of your prototyping method is critical to avoiding parts that jam or leak.
CNC machining provides superior precision, routinely achieving tolerances of ±0.001 inches, making it ideal for tight mechanical assemblies. 3D printing typically holds ±0.2 mm tolerances, which is sufficient for visual models but inadequate for precision gear mechanisms or fluid seals.
At KAIAO, the data from our machining centers is highly definitive. CNC machining allows us to hold a tolerance of ±0.001 inch (approx. 0.025 mm). 3D printing standard tolerances sit around ±0.2 mm, and for parts larger than 100 mm, you must add an additional 0.15% variance due to thermal shrinkage during the curing or cooling phases.
Example 1: Fluid Manifolds. In diagnostic equipment, a ±0.2 mm variance in an internal channel will cause a pressure leak. CNC machining is mandatory to ensure internal O-rings seal properly.
Example 2: Consumer Electronic Enclosures. When mating a top and bottom shell, a 0.2 mm gap is highly visible to the user and feels cheap. CNC machining the 50 pilot units guarantees a seamless, "click-to-fit" assembly.
Analysis: The cutting tools in a CNC mill do not suffer from the thermal warping inherent in melted plastics or UV-cured resins. The machine cuts exactly where the G-code dictates, ensuring repeatable precision across the entire batch of 100 parts.
Practical Advice: Do not specify ±0.001-inch tolerances on non-critical exterior surfaces. Apply extremely tight tolerances only to mating surfaces or bearing fits to keep your CNC machining costs under control.
Industrial design often pushes the boundaries of traditional manufacturing. When a CAD model features organic curves or internal lattices, geometry dictates the choice.
3D printing easily creates highly complex geometries, internal channels, and organic shapes that are physically impossible for a cutting tool to reach. CNC machining is restricted by tool access, requiring designs to be optimized for subtractive manufacturing paths.
If you can draw it, you can usually 3D print it. Because additive manufacturing builds the part from the ground up, it ignores the constraints of "line of sight." A CNC end mill must be able to physically reach the surface it is cutting. If a design has an enclosed hollow cavity or a deep, curved internal channel, CNC machining simply cannot do the job without splitting the part into multiple bolted pieces.
Example 1: Conformal Cooling Channels. Injection mold tooling inserts often require internal water cooling channels that wrap around the contour of a part. SLS or DMLS 3D printing handles this complex internal routing effortlessly.
Example 2: Ergonomic Grips. Highly organic, custom-fitted handles with internal honeycomb structures designed to reduce weight are perfect candidates for SLA printing.
Analysis: 3D printing enables "complexity for free." You do not pay for the amount of time a tool spends navigating complex curves; you only pay for the volume of material used and the Z-height of the print.
List of 3D Printing Geometric Benefits:
Eliminates the absolute need for draft angles.
Allows for severe undercuts without complex 5-axis fixturing.
Enables part consolidation (printing an entire assembly as one piece).
Practical Advice: Use 3D printing in the earliest stages of design validation specifically to evaluate the physical form and aesthetic volume of complex shapes before you spend money locking the design for CNC production.
When a product launch deadline is looming, time is your most expensive resource. Procurement managers need accurate lead time data to schedule validation correctly.
For a batch of 50 to 100 parts, CNC machining is remarkably fast, often completing preliminary prototype components in just one day. 3D printing, while fast for a single unit, typically requires 4 to 6 days for batch processing and post-production finishing.
It is a common misconception that 3D printing is always faster. While printing a single iteration might take a few hours, scaling that up to 100 parts changes the math entirely. At KAIAO, our standard data shows that high-speed CNC centers can often mill functional prototypes in roughly 1 day. Conversely, our standard 3D printing lead time for a small batch sits between 4 and 6 days.
Example 1: Aluminum Heatsinks. If we need 50 heatsinks, our CNC machines can run them back-to-back from bar stock extremely quickly. Printing 50 metal heatsinks requires massive machine time and extensive thermal stress-relief post-processing.
Example 2: Plastic Drone Frames. Machining 100 flat POM (Delrin) drone chassis takes hours on a high-speed router. Printing them requires stacking them in a build chamber, waiting days for the print to finish, and then manually removing support structures from every single unit.
Analysis: Subtractive manufacturing excels in speed when the geometry is relatively straightforward. Additive manufacturing slows down at scale because laser curing or filament extrusion is a physically slower material deposition rate than a carbide end mill removing large chips of metal.
Practical Advice: If your primary constraint for a 50-part run is raw speed, simplify your CAD design to remove deep undercuts, and machine it out of a standard engineering plastic or aluminum.
The smartest hardware teams do not treat this as an either/or decision. They leverage the specific strengths of both additive and subtractive manufacturing across the timeline.
Product teams use 3D printing first for rapid geometric design validation, then seamlessly transition to CNC machining for the 50-100 part pilot run. This combo strategy ensures visual perfection early and structural durability during final functional testing.
In the real world ofrapid prototypingfor 50-100 parts, the most cost-effective approach is a staged transition. During the concept phase, engineers use SLA or FDM printing because it allows them to hold a physical representation of the CAD model quickly. Once the aesthetic and structural design is confirmed, they move to the functional phase, utilizing CNC machining to produce the pilot batch.
Example 1: Ruggedized Laptops. The design team 3D prints the outer casing to check the feel of the handle and the screen viewing angle. Once approved, they CNC machine 50 units from aerospace-grade aluminum to pass military-standard drop and vibration tests.
Example 2: Medical Hand Tools. A surgeon evaluates a 3D-printed handle for ergonomic comfort. Once the shape is finalized, we CNC machine 100 units from medical-grade Stainless Steel for actual clinical use.
Analysis: This two-step process aggressively mitigates financial risk. 3D printing prevents wasting money machining a flawed design, while CNC machining ensures the final pilot run survives rigorous field testing without generating false-negative failure data.
Practical Advice: Budget for both processes from the start. Allocate 20% of your prototyping budget to rapid 3D printing iterations, and save the remaining 80% for the final, CNC-machined functional batch.

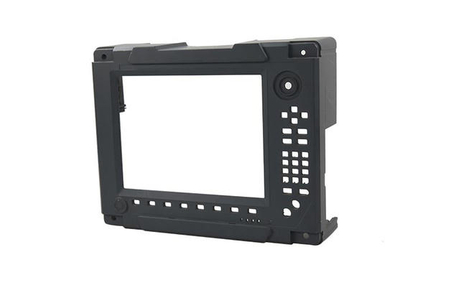

Let's look at a concrete example of how this hybrid strategy accelerates time-to-market. A consumer electronics manufacturer recently approached us to develop a housing for a new handheld device.
The client utilized 3D printing to evaluate the aesthetic design and initial assembly of the electronic housing. Following design confirmation, they transitioned to CNC machining for a 50-unit pilot run, ensuring the final functional prototypes matched mass-production material strength.
This case perfectly illustrates the "3D print for design validation + CNC for functional prototype" methodology. The electronics manufacturer needed a housing that was lightweight but could withstand significant daily impact.
Phase 1: Concept Verification. We used SLA 3D printing to quickly produce 5 variations of the housing. The engineering team used these physical models to check PCB clearances, test battery fitment, and conduct focus groups on the external aesthetics.
Phase 2: Functional Pilot Run. Once the exact geometry was locked, the team required 50-100 units for field testing. We transitioned the CAD files to our CNC milling centers. We machined the housings out of solid blocks of flame-retardant PC (Polycarbonate)—the exact material planned for final injection molding.
Analysis: By using CNC machining for the pilot batch, the client was able to conduct legitimate drop tests, thermal cycling, and structural integrity evaluations. Had they used 3D printed parts for the field test, the housings would likely have cracked, providing inaccurate data to the engineering team.
Result: They successfully completed structural verification, functional testing, and market sample preparation before committing $40,000 to a steel injection mold, drastically reducing late-stage modification costs and accelerating their product launch.
Making the final decision comes down to evaluating your specific project constraints against the hard data of precision, material, speed, and volume.
Choose 3D printing when you need complex geometries and rapid early-stage design validation. Select CNC machining when your 50-100 part batch requires real production materials, ±0.001-inch precision, and the durability to survive rigorous functional testing.
As a Chief Manufacturing Engineer, my advice is to stop viewing CNC Machining vs 3D Printing as a competition. They are specialized tools in your manufacturing arsenal. Your choice directly dictates the validity of your testing phase.
Example 1: High-Volume Pre-Production. If you are preparing to mass-produce an automotive sensor bracket, your 50 pilot parts must behave exactly like the final stamped or cast part. CNC machining is your only viable option here.
Example 2: Form and Fit Checks. If you are creating a complex architectural model or a highly organic art piece where structural load is irrelevant, 3D printing is the most cost-effective and capable method.
Decision Matrix Checklist:
Does the part require ±0.001" tolerances? -> CNC Machining
Is the part larger than 1400mm (up to 4000mm)? -> CNC Machining
Does the part have enclosed internal voids? -> 3D Printing
Do you need real ABS, PC, or Metal for drop testing? -> CNC Machining
Practical Advice: When in doubt, send your CAD file to your manufacturing partner and ask them to quote both. Often, the geometry itself will heavily favor the pricing and timeline of one method over the other.
The debate between CNC Machining vs 3D Printing for 50-100 parts is resolved by looking at your testing requirements. If your goal is fast geometric design validation of complex shapes, 3D printing is unmatched. However, when you move into the engineering validation phase requiring 50-100 units, CNC machining is the definitive winner. By leveraging real production materials like aluminum, steel, ABS, and PC, and holding ±0.001-inch tolerances, CNC ensures your functional testing yields accurate, reliable data. The most successful product teams use both: printing to perfect the shape, and machining to perfect the function.
1. Is CNC machining always more expensive than 3D printing for 50 parts?
Not always. For parts with simple geometries, CNC machining 50 units can be faster and cheaper because the machine removes material rapidly. 3D printing becomes more cost-effective when the part geometry is highly complex or requires significant material removal on a mill.
2. Can 3D printing achieve the same tolerances as CNC machining?
Generally, no. CNC machining easily holds ±0.001 inch (0.025 mm) tolerances. Standard 3D printing (SLA/FDM) holds around ±0.2 mm. If precision mating is required, CNC is the standard.
3. What materials can I use for a 50-part CNC run?
You can use true production-grade materials, including metals (Aluminum, Stainless Steel, Brass) and engineering plastics (ABS, Polycarbonate, POM/Delrin, PEEK).
4. Why is the combination of 3D printing and CNC machining recommended?
It mitigates risk. 3D printing allows you to cheaply and quickly verify the physical shape and assembly. Once the design is proven, moving to CNC ensures the 50-100 functional prototypes have the mechanical strength required for field testing.
5. What is the maximum size part I can CNC machine vs 3D print?
At KAIAO, our max CNC milling size is massive: 4000 × 1500 × 600 mm. Our maximum 3D printing build volume is 1400 × 700 × 500 mm. For very large parts, CNC is often the only option.
6. Are 3D printed parts strong enough for functional testing?
It depends on the test. 3D printed parts (especially FDM and SLA) are anisotropic, meaning they are weaker along the Z-axis layer lines. For high-impact, high-torque, or load-bearing tests, CNC machined parts provide the necessary isotropic strength.
7. How long does it take to machine 50 parts?
With standard CNC machining, we can often complete a batch of 50 prototype components in about 1 day, depending on the complexity of the CAD file and material availability.
