Assume standard tolerances work for everything, and your complex assemblies will catastrophically fail during pilot testing. High precision rapid prototyping achieves ±0.01mm machining tolerances by pairing rigid CNC equipment with specialized toolpaths and thermal control, delivering true-to-production functional models without the extreme costs of aerospace-grade job shops.
In my two decades managing the factory floor, the most frequent misconception I encounter from product designers is that "prototypes do not need to be perfect." That is a dangerous engineering myth. When you are validating a dynamic fluid manifold or a high-speed automotive drivetrain, a fraction of a millimeter is the difference between passing a rigorous functional bench test and completely destroying a $50,000 testing rig. Let us break down the exact mechanical realities of extreme tolerance control.
How Material Selection Impacts High Precision Rapid Prototyping
Case Study: High-Tolerance Automotive and Medical Components
Most designers default to standard 3D printing for early validation, completely ignoring the structural and dimensional limits of layered plastics when applied to functional mechanical assemblies that require absolute exactness.
Standard additive methods cannot hold ±0.01mm machining tolerances due to thermal warping and layer adhesion variations. High precision rapid prototyping relies strictly on subtractive CNC machining to maintain isotropic material strength and geometric perfection necessary for rigorous aerospace and medical testing applications.
When evaluating manufacturing methods for engineering verification, the mechanism of material removal versus material addition is the primary variable controlling dimensional accuracy.

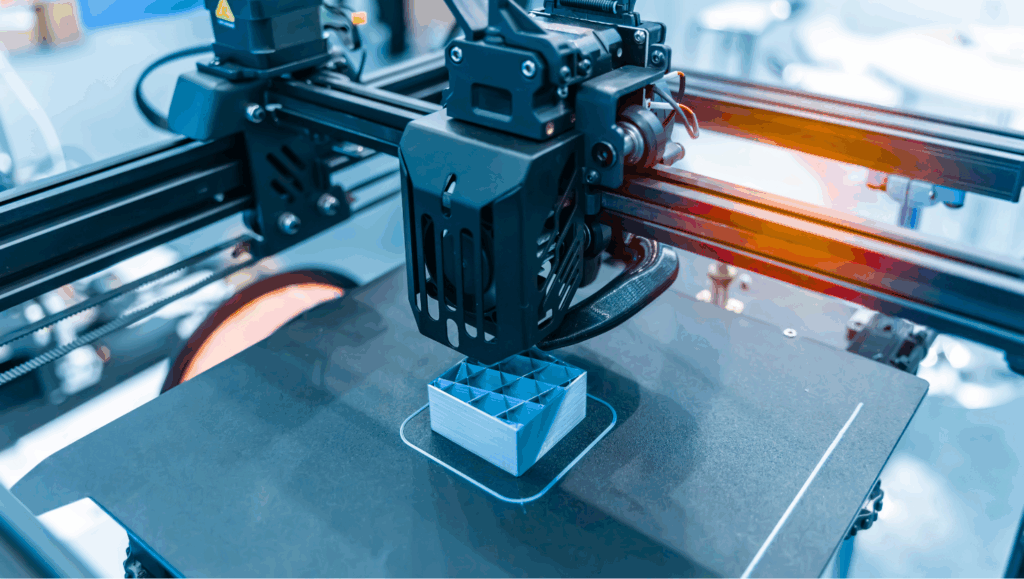

Additive manufacturing (3D Printing) builds parts layer-by-layer. While fantastic for evaluating complex visual geometries quickly, the thermal cycling inherent in melting and curing resins or filaments introduces micro-warpage that destroys tight mechanical fits. Subtractive manufacturing (CNC Machining), however, cuts directly from a stress-relieved solid block. This maintains the material's native grain structure and eliminates the dimensional drift associated with cooling plastics.
Example 1: Aerospace Turbine Blades. A 3D-printed blade will warp slightly along its trailing edge during the curing phase, completely invalidating aerodynamic wind tunnel data. CNC machining the blade guarantees the exact airfoil geometry required for actual fluid dynamic testing.
Example 2: EV Battery Cooling Plates. These components require perfectly flat mating surfaces to ensure maximum thermal transfer from the battery cells. Layered plastics cannot achieve the necessary flatness without extensive secondary machining.
Practical Advice: If your assembly relies on a press-fit bearing or a dynamic fluid seal, abandon additive methods immediately and utilize subtractive CNC machining for your functional prototypes.
Achieving extreme precision is not about pressing a button on a standard mill; it requires heavy, rigid machinery, high-speed spindles, and experienced engineers who understand complex tool deflection.
Achieving ±0.01mm machining tolerances requires advanced 5-axis CNC centers with vibration-dampening bases and dynamic thermal compensation systems. High precision rapid prototyping demands these advanced setups to eliminate microscopic tool runout and deliver functional parts that precisely mirror mass-production capabilities.
The physical rigidity of the machine tool is the absolute foundation of high-tolerance work. If the spindle vibrates even slightly under the cutting load, that vibration transfers directly into the workpiece as dimensional error.
To hold a hundredth of a millimeter, the CNC facility must utilize machines with heavy polymer concrete or cast-iron beds to absorb resonance. Furthermore, the engineering team must program highly optimized toolpaths that maintain a constant chip load, preventing the end mill from deflecting away from the metal surface during aggressive cuts.
Example 1: CVT Transmission Valve Bodies. These complex aluminum labyrinths direct hydraulic fluid to adjust gear ratios instantly. A deviation of just 0.02mm will cause internal pressure bleed, destroying the transmission's efficiency during a physical bench test.
Example 2: Medical Pump Impellers. Unbalanced machining causes micro-vibrations that lead to premature bearing failure in life-saving diagnostic fluid equipment.
Checklist for Precision Equipment Evaluation:
Verify the use of optical linear scales on the CNC axes, not just standard rotary encoders.
Ensure the facility uses shrink-fit tool holders to minimize spindle runout.
Confirm the use of specialized carbide micro-tools for fine internal corner radii.
You cannot machine butter to a micrometer tolerance. The specific physical properties of your chosen metal or engineering plastic directly dictate the ultimate precision ceiling of your prototype.
Materials like Aluminum, Steel, PC, and ABS react differently to cutting forces. High precision rapid prototyping reaches ±0.01mm machining tolerances easily in rigid metals, whereas plastics require specialized chillers and modified feed rates to prevent material deformation during the cut.
Every material possesses a unique machinability rating and thermal expansion coefficient. Procurement managers must understand that demanding a ±0.01mm tolerance on a block of soft Teflon is an engineering impossibility due to the material's inherent flexibility.
Metals like Aluminum 6061 or 17-4 Stainless Steel offer excellent rigidity. When the cutting tool shears the metal, the remaining structure does not bend. Engineering plastics like ABS and Polycarbonate (PC) are highly viable for CNC machining but require a much lighter depth of cut. If the tool pushes too hard, the plastic deflects, the tool passes over it, and the plastic springs back—resulting in an oversized part.
Example 1: Steel Automotive Drivetrain Shafts. These components easily hold ultra-precision tolerances because the rigid steel lattice resists the localized pressure of the cutting insert.
Example 2: Polycarbonate Medical Device Lenses. While PC is strong, it requires extremely sharp, highly polished tools and air cooling to cut clearly without melting and losing its ±0.025mm dimensional requirement.
Practical Advice: When requesting quotes for high-precision components, always allow your manufacturing partner to suggest specific alloys. Switching from a gummy 304 Stainless Steel to a free-machining 303 Stainless Steel can dramatically improve the final dimensional accuracy of the prototype.
Heat is the absolute enemy of precision. As the cutting tool removes material, the resulting friction generates thermal expansion that temporarily alters the dimensions of the workpiece.
Controlling heat through high-pressure coolant and environmentally controlled factory floors is mandatory. Without strict thermal management, achieving ±0.01mm machining tolerances is impossible, as the metal will shrink back past the acceptable limit once the high precision rapid prototyping process concludes.
A CNC machine does not cut material in a vacuum; it operates in a physical environment governed by thermodynamics. If a block of aluminum heats up by just a few degrees during an aggressive roughing pass, it will physically expand. If the machine cuts the final finishing pass while the metal is hot, the part will be perfectly in tolerance on the machine. However, once it cools down on the inspection table, it will shrink out of tolerance.
Example 1: Large Aluminum Aerospace Housings. Because aluminum has a high coefficient of thermal expansion, a 500mm long housing can easily shrink by 0.05mm as it cools, ruining the alignment of bearing bores.
Example 2: Titanium Bone Plates. Titanium conducts heat poorly, meaning the heat stays localized at the cutting edge, which can cause the tool to rapidly degrade and push the dimensions out of spec.
Thermal Control Protocols:
Flood coolant systems utilizing temperature-controlled cutting fluids.
Climate-controlled manufacturing floors maintained at exactly 20°C (68°F).
Programming strategic "pause" codes into the G-code to allow the workpiece to normalize before the final micron-level finishing pass.
If you cannot measure it, you did not make it. Claiming a micro-tolerance is entirely meaningless without the metrology lab data to definitively back it up.
Validating ±0.01mm machining tolerances requires Coordinate Measuring Machines (CMM) and optical comparators calibrated to sub-micron levels. High precision rapid prototyping integrates these strict inspection protocols immediately after machining to guarantee every dimension perfectly matches the CAD model.
Precision manufacturing requires an equally precise verification loop. You cannot measure a ±0.01mm tolerance with a standard set of digital calipers. Factory floors executing this level of work rely on heavily controlled metrology labs isolated from the vibrations of the main production floor.
The standard procedure involves probing the part with a ruby-tipped CMM stylus that maps the physical geometry against the digital CAD file in three-dimensional space, generating an unimpeachable First Article Inspection (FAI) report.
Example 1: Automotive Engine Piston Rings. These require exact optical surface roughness (Ra) profiling alongside CMM dimension checks to ensure they will not score the cylinder walls during testing.
Example 2: Orthopedic Implant Drill Guides. Strict CMM validation ensures the surgical guide holes are angled perfectly, preventing catastrophic misalignment during a simulated surgical procedure.
Practical Advice: Never accept a high-tolerance prototype without requesting the accompanying CMM inspection report. The data validates your investment.
Procurement managers often believe that extreme accuracy inherently requires weeks of lead time. Modern manufacturing workflows have completely shattered this outdated assumption.
By combining automated tool changers with standardized fixturing, facilities complete high precision rapid prototyping in approximately one day. This workflow delivers standard ±0.001 inch accuracy, and when required, achieves ±0.01mm machining tolerances without sacrificing critical R&D speed.
The primary advantage of CNC machining in the prototyping phase is its ability to scale from standard to ultra-precision seamlessly based on the engineering requirements. At KAIAO, our data proves that rapid delivery and exact tolerances are not mutually exclusive.
Our standard CNC rapid prototyping achieves a tolerance of ±0.001 inch (approx. ±0.025 mm) and can process massive parts up to 4000 × 1500 × 600 mm. For standard geometries, these parts are frequently processed and completed in approximately 1 day. However, when a project demands it, we slow the feed rates, engage thermal compensation, and push the CNC equipment to deliver ±0.01 mm precision. Under highly specialized, tightly controlled process conditions, we even achieve ultra-precision levels of ±0.005 mm.
Example 1: Rapid Iteration of EV Motor Shafts. An engineering team discovers a vibration issue on the test bench. They update the CAD, and we machine a new shaft with a ±0.01mm bearing journal tolerance in 24 hours to keep their testing schedule on track.
Example 2: Emergency Surgical Instrument Replacement. When a specialized cutting jig fails during a clinical setup, high-speed precision CNC delivers a flawless stainless steel replacement the next day.
List of Speed-Enabling Factors:
Massive inventory of raw metals and engineering plastics ready to cut.
Offline CAM programming software that pre-verifies toolpaths to prevent machine crashes.
High-speed spindles (20,000+ RPM) that remove material rapidly without sacrificing surface finish.
Abstract data means nothing without real-world application. Let us examine how this translates to functional assemblies in highly regulated, high-stakes industries.
For automotive drivetrain systems and medical implants, engineers rely on high precision rapid prototyping to verify complex assemblies. By achieving ±0.01mm machining tolerances in just one day, clients execute immediate physical testing, dramatically compressing the R&D timeline while ensuring flawless functionality.
Consider a recent project involving an automotive manufacturer developing a next-generation transmission system, alongside a medical client designing a complex surgical assembly. Both required absolute precision to validate their designs.
Upon receiving the CAD models, our engineering team immediately initiated the CNC rapid prototyping process. The automotive client required a highly complex valve body meant to route high-pressure hydraulic fluid. The medical client needed an intricate bone saw guide. We utilized high-speed 5-axis CNC machining centers to cut these components from solid aluminum and medical-grade stainless steel, respectively.
Following machining, every critical dimension was subjected to strict quality inspection via CMM to ensure the parts met the demanding ±0.01mm assembly requirements.
The Result for Automotive: The perfectly machined internal channels of the valve body allowed the engineering team to run exact pressure-drop tests on their dyno without fluid bypass.
The Result for Medical: The surgeon evaluating the prototype found the guide clamped perfectly to the anatomical model without any mechanical play.
Timeline Impact: Thanks to mature processing workflows, both highly precise functional prototypes were manufactured and shipped in approximately 1 day, allowing both enterprises to bypass weeks of traditional tooling delays and immediately validate their product structures.
Practical Advice: Treat your rapid prototype manufacturer as an extension of your own R&D team. Provide them with fully detailed 2D drawings calling out specific GD&T requirements alongside your 3D CAD files to ensure critical tolerances are identified immediately.
Achieving a ±0.01mm tolerance is not an accident; it is the result of applying rigorous scientific control to the manufacturing process. While 3D printing remains excellent for visual checks, high precision rapid prototyping via CNC machining is the undisputed requirement for functional engineering verification. By leveraging advanced equipment, strict thermal management, and CMM metrology, manufacturers can deliver true-to-production parts in as little as 24 hours. Whether you are validating a high-pressure automotive manifold or a life-saving medical device, relying on subtractive CNC machining ensures your physical tests yield accurate, reliable data, ultimately shortening your time to market.
1. Is it possible to achieve ±0.01mm tolerances with 3D printing?
Generally, no. Standard 3D printing processes (like SLA, SLS, or FDM) struggle to maintain tolerances tighter than ±0.1mm to ±0.2mm due to the thermal expansion and shrinkage inherent in melting and curing polymers layer by layer.
2. What materials are best for holding extreme CNC tolerances?
Rigid metals such as Aluminum (6061, 7075), Stainless Steel (303, 304, 17-4), and Brass are excellent for holding tight tolerances. Rigid engineering plastics like POM (Delrin) and PEEK also machine exceptionally well compared to softer plastics like standard ABS.
3. Does requesting a ±0.01mm tolerance increase the prototyping cost?
Yes. Achieving micro-tolerances requires slower cutting speeds, specialized tooling, strict thermal environment control, and extensive CMM inspection time. You should only specify extreme tolerances on mating surfaces or critical functional areas to optimize costs.
4. How fast can KAIAO deliver a standard CNC prototype?
For standard prototype geometries, our high-speed CNC machining centers can complete the milling process in approximately 1 day, allowing for incredibly fast design iterations.
5. What is the maximum size part you can CNC machine?
Our facilities are equipped with large-format milling centers capable of processing parts up to 4000 × 1500 × 600 mm, making it possible to machine entire automotive dashboards or aerospace bulkheads in a single setup.
6. What is the standard tolerance for rapid CNC machining if I don't need ±0.01mm?
Our standard CNC machining tolerance is ±0.001 inch (approximately ±0.025 mm), which is more than sufficient for the vast majority of mechanical assemblies, enclosures, and functional prototypes.
7. How do you prove the part meets the ±0.01mm requirement?
We utilize strict quality control protocols, including Coordinate Measuring Machines (CMM), to probe the physical part and compare the dimensions directly against your CAD file. We provide an inspection report validating the critical dimensions upon request.
8. Can CNC machining achieve tighter tolerances than ±0.01mm?
Yes. Under special, highly controlled process conditions with specific materials, we can achieve ultra-precision machining levels down to ±0.005 mm for highly specialized aerospace or medical components.
