Choosing between CNC machining and 3D printing for rapid prototyping can be challenging, but understanding their distinct advantages is key. CNC excels in precision, material strength, and surface finish for functional parts, while 3D printing shines in design complexity, speed for intricate geometries, and cost-effectiveness for early iterations. Selecting the right method ensures your prototype perfectly matches your testing needs and accelerates your product development.
In the fast-paced world of product development, selecting the optimal rapid prototyping method is crucial for success. Two of the most prominent and versatile technologies are CNC machining and 3D printing. While both can transform digital designs into physical objects quickly, they each offer unique strengths that make them better suited for different prototyping needs. This article will delve into the specifics of each technology, helping you determine which one is the ideal fit for your next functional prototype.
What is CNC Machining and When is it Best for Rapid Prototyping?
What is 3D Printing and When is it Best for Rapid Prototyping?
How Do Material Options Compare Between CNC and 3D Printing?
Which Method is Better for Functional Testing and Production-Like Parts?
How to Choose the Right Rapid Prototyping Method for Your Project?

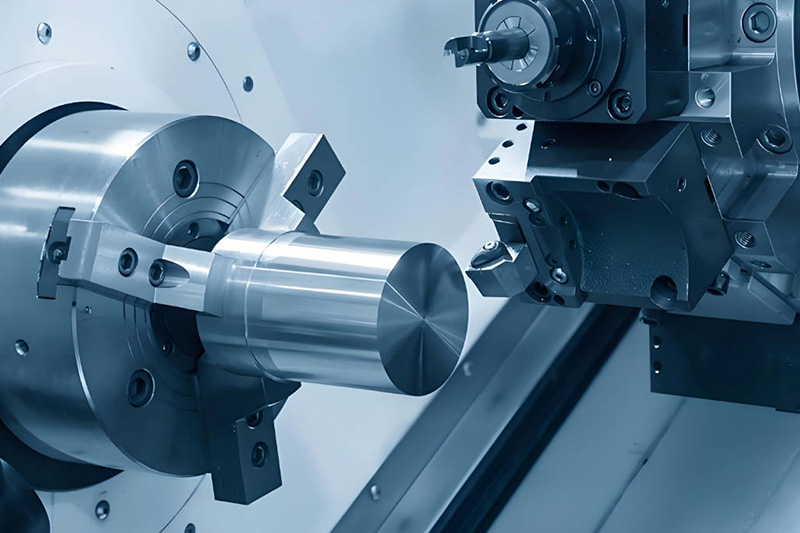

CNC machining is a subtractive manufacturing process that uses computer-controlled tools to precisely remove material from a solid block, making it ideal for rapid prototyping when high precision, strong mechanical properties, and production-grade materials are required. It excels in creating durable, functional parts with excellent surface finishes, often delivered in as little as 1 day.
CNC machining is highly precise, capable of achieving tight tolerances and intricate details. It works with a wide array of engineering-grade plastics and metals, allowing prototypes to be made from the same materials as the final production parts. This ensures the prototype accurately reflects the mechanical performance, durability, and aesthetic qualities of the end product.
Table: Key Characteristics of CNC Machining for Rapid Prototyping
CNC machining is superior for:
Functional Testing with Production Materials: Prototypes needing to withstand real-world stresses, heat, or chemicals.
High Precision and Tight Tolerances: Parts requiring extremely accurate dimensions, like medical devices or aerospace components.
Excellent Surface Finish: Prototypes needing a smooth, aesthetically pleasing, or production-like finish.
Large Parts or Specific Geometries: Suitable for bigger prototypes and parts with simple geometries or sharp edges.
Low-Volume Production: A viable option for small manufacturing runs.
For example, a new industrial gearbox housing made from aluminum via CNC would allow immediate testing of structural integrity and thermal performance under operational conditions, with rapid iteration on design improvements.
3D printing, an additive manufacturing process, builds parts layer by layer, making it exceptionally well-suited for rapid prototyping when design complexity, intricate geometries, and quick, cost-effective iterations are paramount. It can deliver prototypes in as little as 4-6 days, offering unparalleled design freedom.
3D printing builds objects by adding material layer by layer, allowing for highly complex and organic shapes. Technologies like SLA, SLS, and FDM offer varying levels of detail and material properties. This method is celebrated for its ability to create intricate designs difficult or impossible with traditional manufacturing.
Table: Key Characteristics of 3D Printing for Rapid Prototyping
3D printing is preferred for:
Complex Geometries and Organic Shapes: Designs with intricate internal structures, undercuts, or highly organic forms.
Early-Stage Design Validation: Initial concept models, form and fit checks, or ergonomic studies.
Visual Prototypes and Presentation Models: Demonstrating aesthetics or presenting concepts.
Lightweighting and Part Consolidation: Creating lattice structures or consolidating multiple parts.
Cost-Effectiveness for Low Volumes: For very small batches or single prototypes with complex designs.
For example, designing a new drone frame with intricate internal channels for wiring and airflow would benefit from 3D printing (e.g., SLS with nylon) to quickly create and test the complex, lightweight structure.
CNC machining offers a broader range of production-grade metals and plastics, providing prototypes with mechanical properties identical to final parts, while 3D printing excels with specialized resins and plastics for complex geometries, though material strength can vary. The choice depends on whether your prototype needs to replicate final product performance or explore intricate designs.
CNC machining uses materials commonly found in mass production, ensuring prototypes precisely mimic the final product's mechanical, thermal, and chemical properties.
Table: Common Materials for CNC Machining
3D printing offers a diverse range of materials, primarily polymers, suitable for unique material properties or complex internal structures.
Table: Common Materials for 3D Printing
3D printing generally offers lower upfront costs and faster lead times for complex, low-volume prototypes, often delivering in 4-6 days, while CNC machining, though potentially more expensive for single units, provides rapid delivery (as fast as 1 day) and cost-effectiveness for higher precision and production-like materials. The optimal choice balances budget, speed, and prototype requirements.
CNC machining involves setup costs, which can make it seem more expensive for single, complex prototypes. However, its value for high precision and specific material properties is significant.
Table: Cost and Lead Time Considerations for CNC Machining
3D printing has lower setup costs, driven by material usage and machine time. It's cost-effective for complex geometries and rapid iterations.
Table: Cost and Lead Time Considerations for 3D Printing
CNC machining consistently delivers superior surface finishes and tighter dimensional tolerances, often achieving production-ready quality, while 3D printing offers good detail for complex geometries but typically requires more post-processing for smooth finishes and has slightly looser tolerances. The choice depends on the required precision and aesthetic quality of your prototype.
CNC machining produces parts with exceptional dimensional accuracy and smooth surface finishes directly from the machine.
Table: Surface Finish and Tolerance for CNC Machining
3D printed parts' surface finish and tolerances vary by technology, often showing layer lines. Post-processing can improve smoothness.
Table: Surface Finish and Tolerance for 3D Printing
CNC machining is generally superior for functional testing and creating production-like parts due to its use of actual production materials and ability to achieve high mechanical strength and precision. 3D printing, while excellent for early functional checks of complex designs, may not always replicate the exact material properties or strength required for rigorous final product validation.
CNC machining is preferred when prototypes need to perform under conditions similar to the final product, using production-grade materials.
Table: Suitability for Functional Testing - CNC Machining
3D printing is valuable for functional testing, especially in early design stages or for parts where complex geometry is more critical than ultimate material strength.
Table: Suitability for Functional Testing - 3D Printing
Choosing between CNC machining and 3D printing for rapid prototyping requires a clear understanding of your project's specific needs, including material requirements, geometric complexity, desired precision, budget, and timeline. By evaluating these factors, you can select the method that best aligns with your prototyping goals and accelerates your product development.
Consider these questions:
Primary purpose: Functional testing (CNC) vs. form/fit, visual, early concept (3D printing).
Material properties: Production-grade metals/plastics (CNC) vs. specialized resins/plastics for complex shapes (3D printing).
Geometric complexity: Simple to moderately complex (CNC) vs. intricate, organic shapes (3D printing).
Precision/surface finish: Tight tolerances, smooth finish (CNC) vs. good detail, post-processing needed (3D printing).
Budget/lead time: Fastest delivery (1 day) for functional parts (CNC) vs. lower cost for complex, low-volume (3D printing, 4-6 days).
Volume: Single to low-volume production (CNC) vs. single or very small batches (3D printing).
Choosing between CNC machining and 3D printing is a strategic decision. CNC excels in precision, material strength, and production-like finishes, ideal for rigorous functional testing and parts mimicking the final product, with delivery as fast as 1 day. 3D printing offers unparalleled design freedom for complex geometries, rapid iterations, and cost-effectiveness for early-stage validation, with lead times typically 4-6 days. By carefully assessing your project's specific needs—complexity, materials, precision, budget, and timeline—you can select the optimal rapid prototyping method to accelerate your product development and ensure your prototype perfectly fits its intended purpose.
